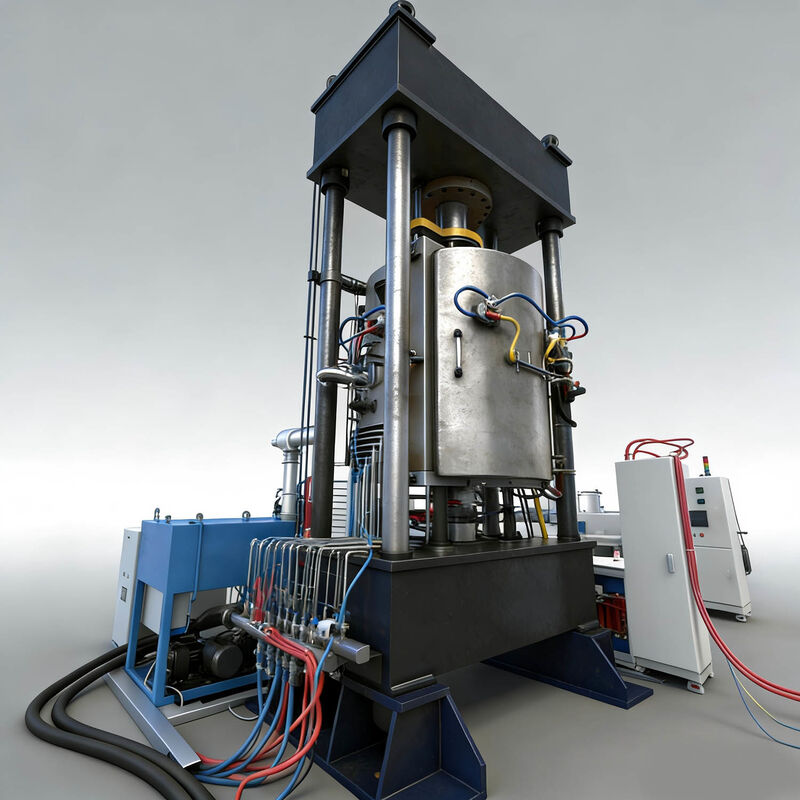

2200°C Alumina Powder 500T Hot Press Furnace of Double-pressure head design

Description:

• This 2200C high-temperature vacuum hot press furnace is a professional batch-type resistance heating unit,boasting exceptional temperature homogeneity that secures consistent, high-quality processing outcomes for abroad spectrum of advanced materials. Exclusively engineered for precise, high-efficiency material treatment, itmerges state-of-the-art electric resistance heating technology with a fully sealed vacuum environment, thusmaintaining reliable and stable high-temperature conditions throughout operation.
• Built with industrial-grade ruggedness, the furnace adopts a robust structural design and is equipped with anintelligent temperature control system -enabling accurate adjustment of heating rates, temperature holdingdurations, and cooling procedures. This sophisticated control configuration ensures uniform and thoroughheating of all workpieces, eliminating the risk of thermal deviation during processing.
• Versatile enough for both large-volume manufacturing and small-batch production runs, this furnace supportsthe processing of a diverse array of materials, including boron carbide powder, ceramic powder, and tungstenpowder. Fitted with an intuitive operation interface and a comprehensive suite of safety protection mechanisms-such as over-temperature alarm and vacuum leakage detection functions -it stands as an ideal solutiontailored for both laboratory research and development projects and full-scale industrial manufacturing.



Application:

• Ceramic Materials:  Boron carbide powder, silicon carbide powder, alumina  powder, silicon nitride powder, and other advanced ceramic components.
• Hard Alloys & Metals: Processing of tungsten carbide powder, carbide alloys powder, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).







Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 2300℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
