Industrial Vacuum Furnace Polysilicon And Rare Earth Sintering Resistor Furnace
Industrial Vacuum Furnace Polysilicon And Rare Earth Sintering Resistor Furnace
Polysilicon Industrial Vacuum Furnace
Rare Earth Sintering Resistor Furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-DZL-54W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
2200℃ Resistance Furnace SIC Boron Carbide Heat Treatment Equipment
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2300 Degree Celsius
Model No.:
NTI-DZL-54W
Working Area:
300x300x600mm
Input Voltage:
380v
Working Atmosphere:
Argon Protection
Application:
Sic Sintering
Highlight:
Polysilicon Industrial Vacuum Furnace
,Rare Earth Sintering Resistor Furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$ 60000-100000
Packaging Details
Standard Packing by Sea Shipping
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets / Month
RELATED PRODUCTS
Video
Industrial Vacuum Furnace Polysilicon And Rare Earth Sintering Resistor Furnace
Get Best Price
Video
Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt
Get Best Price
CONTACT US
Contact Now
Product Description

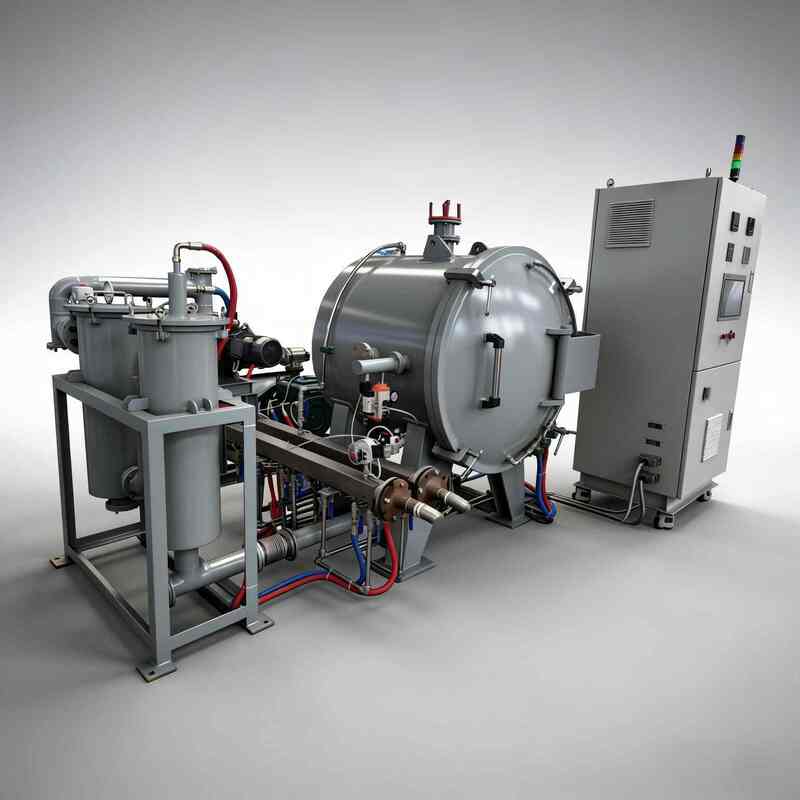

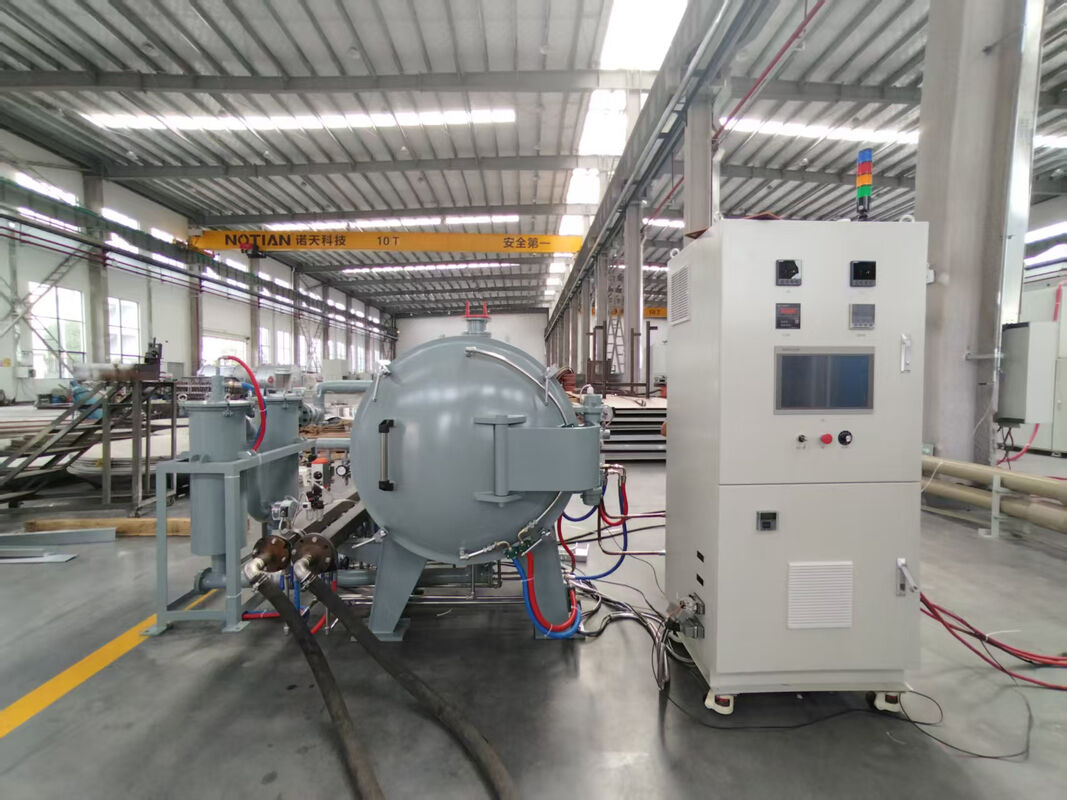

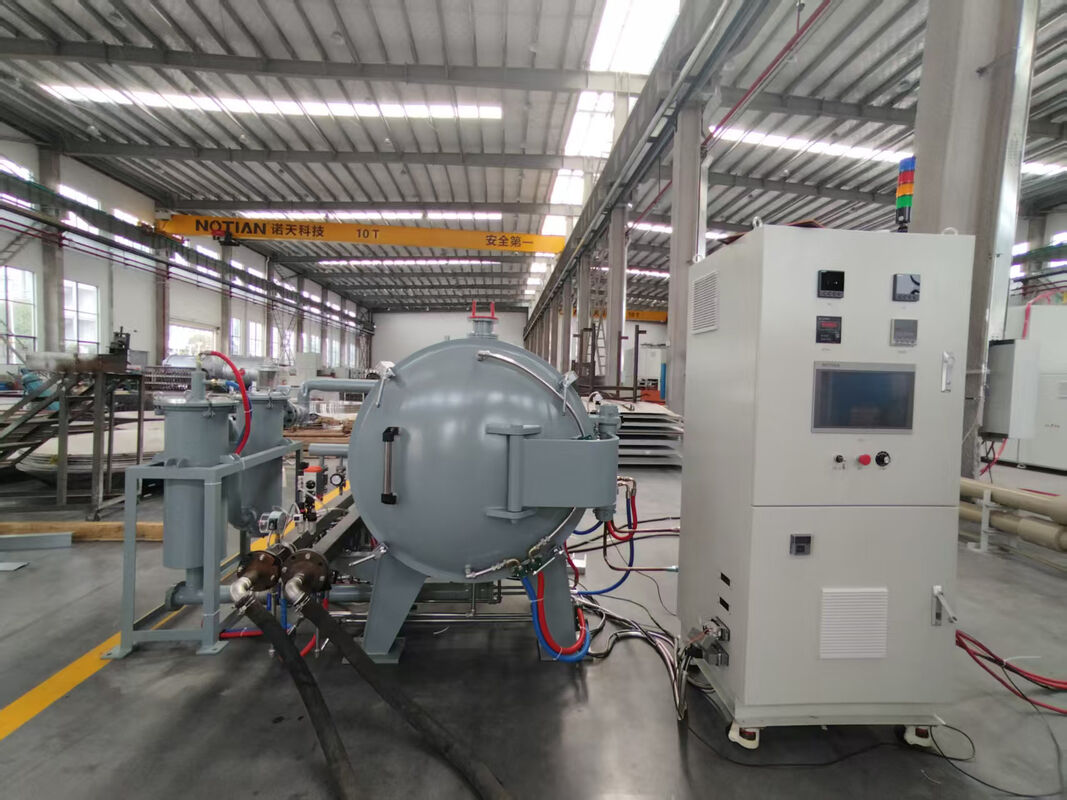

Industrial Vacuum Resistance Furnace for Polysilicon & Rare Earth Sintering
Description:
- Crafted for large-scale industrial production, this 1-to-1 vacuum resistance furnace reaches 2200℃, combining sealed vacuum technology with high-efficiency resistance heating to maintain stable temperature conditions for bulk workpieces. It operates on 380V 3-phase power with thyristor control, ensuring reliable performance during extended production runs.
- Its rugged industrial structure resists wear from continuous operation, while the intelligent temperature regulation system precisely controls thermal processes to ensure uniform heating of polysilicon, rare earth oxides, and other high-value materials. This design maximizes product consistency and yield for high-precision manufacturing.
- Equipped with comprehensive safety features and an intuitive operation interface, it minimizes operational complexity and risk, making it perfect for mass production of polysilicon for semiconductors, rare earth materials for advanced alloys, and carbon composites.
Application:
- Polysilicon Production: Large-batch sintering of polysilicon for solar cell and semiconductor manufacturing.
- Rare Earth Processing: Continuous heat treatment of rare earth oxides for advanced material and magnet production.
- Carbon Composite Manufacturing: High-volume processing of graphite and radiation-proof materials for industrial components.
Specification:
|
Resistance Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-DZL-54W |
NTI-DZL-98W |
NTI-DZL-300w |
NTI-DZL-400W |
NTI-DZL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
100 |
150 |
300 |
400 |
650 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Usual working temperature |
℃ |
2200 |
2200 |
2200 |
2200 |
2200 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

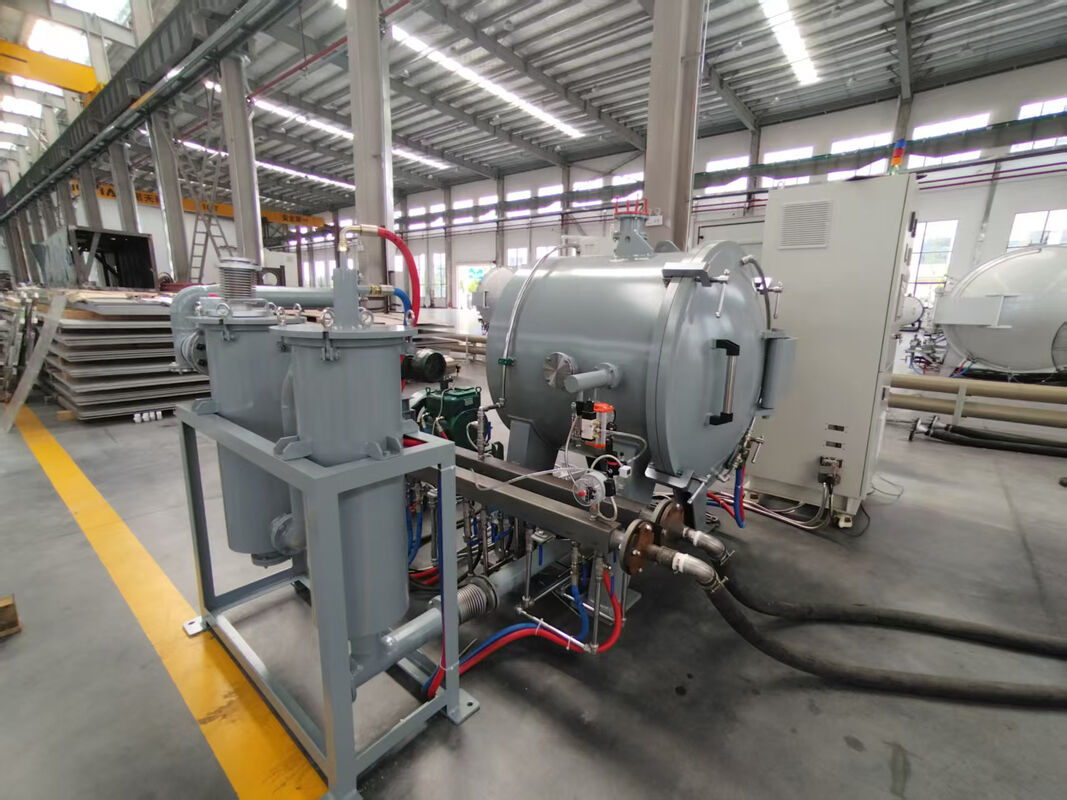

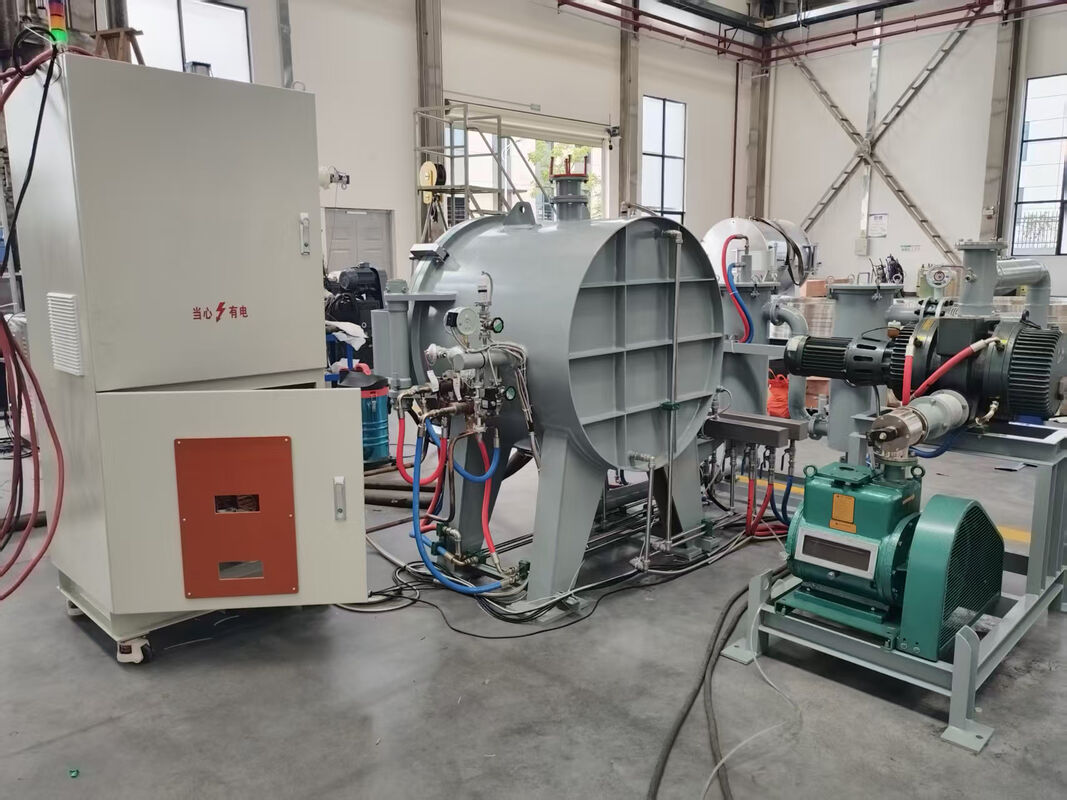

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2200℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2200℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
