Description:

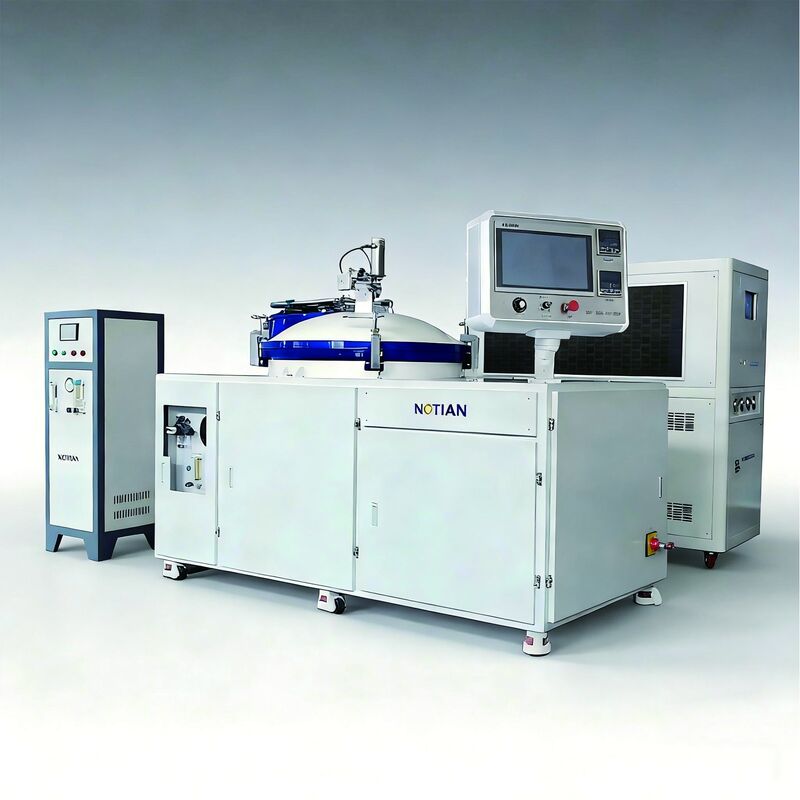

•  This new-type 3200℃ batch-type induction vacuum lab furnace is a high-precision equipment tailored for laboratory-scale material processing.
• It integrates advanced intermediate frequency induction heating and vacuum/protective atmosphere systems, supporting ultra-high-temperature operations (up to 3200℃) to meet the strict sintering and heat treatment needs of various advanced materials.
• Available in three models, it offers flexible options for small-batch experiments or sample preparation. The furnace adopts IGBT control (paired with Japanese Shimaden FP93 temperature controller) and American Raytek infrared temperature measurement (covering 1000℃–3200℃), ensuring precise temperature regulation and ±5℃ uniformity.
• It operates under vacuum or Argon (micro positive pressure) atmosphere, with a closed inner circulating water cooling system for stable heat dissipation. Optional configurations (e.g., gas purifier) can be customized to match specific material processing requirements, making it ideal for R&D and small-scale production in material science fields.



Application:

• Carbon & Graphite Materials: Processing of graphite powder, graphene, anthracite, carbon nanotubes, carbon fiber, and graphite powder.
• Ceramic & Hard Alloys: Sintering of silicon carbide, tungsten carbide, boron carbide, and other high-performance ceramic components.
• Special Functional Materials: Heat treatment of lithium battery materials, rare earth oxides, radiation-proof materials, rhenium materials, metal billets, and powder metallurgy products (e.g., metal/composite metal powders).
• Other Materials: Processing of boric anhydride, magnesium fluoride, poly-silicon materials, calcium carbide, and negative electrode materials.



Specification:

Furnace Configuration:

 Feature Advantages:

• Ultra-high 3200℃ temp for various materials
• Fast heating (30min to 3000℃) saves time
• Precise control (±5℃ uniformity) ensures stable results
• Vacuum/Argon protection avoids material oxidation

After-sales Service:

• Warranty: 1-year warranty for core electrical components against manufacturing defects.
• Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
• Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).



.
