Vacuum Resistance Heating Hot Pressing Furnace Customization For Boron Carbide
Vacuum Resistance Heating Hot Pressing Furnace Customization For Boron Carbide
Resistance Heating Hot Pressing Furnace
Hot Pressing Furnace Customization
Boron Carbide Hot Press Vacuum
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-RYL-20T
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
Industrial 2300℃ Boron Carbide Vacuum Resistance Heating Hot Pressing Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2300 Degree Celsius
Model No.:
NTI-RYL-20T
Working Area:
Ø160xH160mm
Input Voltage:
380v
Working Atmosphere:
Vacuum Or Inert Gas Atmosphere
Application:
Sic Powder Hot Press Sintering
Highlight:
Resistance Heating Hot Pressing Furnace
,Hot Pressing Furnace Customization
,Boron Carbide Hot Press Vacuum
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Industrial 2300℃ Boron Carbide Vacuum Resistance Heating Hot Pressing Furnace
Description:
- This 2300C high-temperature vacuum hot press furnace is a batch-type resistance heating equipment,engineered for precise, efficient material processing. Featuring excellent temperature uniformity for superior treatment results, it combines advanced resistance heating tech with a sealed vacuum environment to maintain stable high-temperature conditions.
- Designed with industrial-grade durability, the furnace features a robust structure and intelligent temperature control system—allowing for accurate regulation of heating rates, holding times, and cooling processes. This ensures uniform heating of workpieces.
- Ideal for large-scale or small-batch production, it supports the processing of various components (including boron carbide powder, ceramic powder, and tungsten powder). Its user-friendly operation interface and safety protection mechanisms (such as over-temperature alarm and vacuum leakage detection etc.) make it suitable for both laboratory R&D and industrial manufacturing scenarios.
Application:
- Ceramic Materials: Boron carbide powder, silicon carbide powder, alumina powder, silicon nitride powder, and other advanced ceramic components.
- Hard Alloys & Metals: Processing of tungsten carbide powder, carbide alloys powder, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
Specification:
|
Hot Press Furnace -- Technology Parameter |
||||||||
|
|
Production usage |
|||||||
|
NTI-RYL-20T |
NTI-RYL-50T |
NTI-RYL-100T |
NTI-RYL-200T |
NTI-RYL-400T |
NTI-RYL-600T |
NTI-RYL-800T |
||
|
Working size |
mm |
ф160x160 |
ф200x300 |
ф300x400 |
ф400x500 |
ф500x600 |
ф600x700 |
ф700x800 |
|
Heating type |
|
Graphite resistance |
||||||
|
Control type |
/ |
SCR control |
||||||
|
Pressure rise rate |
Pa/h |
3 |
5 |
6 |
6 |
6 |
6 |
6 |
|
IF power |
Kw |
40 |
75 |
150 |
250 |
400 |
550 |
700 |
|
Ultimate vacuum |
Pa |
6*10-3 |
||||||
|
Max.working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Pressure |
Ton |
20 |
50 |
100 |
200 |
400 |
600 |
800 |
|
Displacemenet |
mm |
0-100 |
0-150 |
0-250 |
0-350 |
0-450 |
0-550 |
0-650 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||||

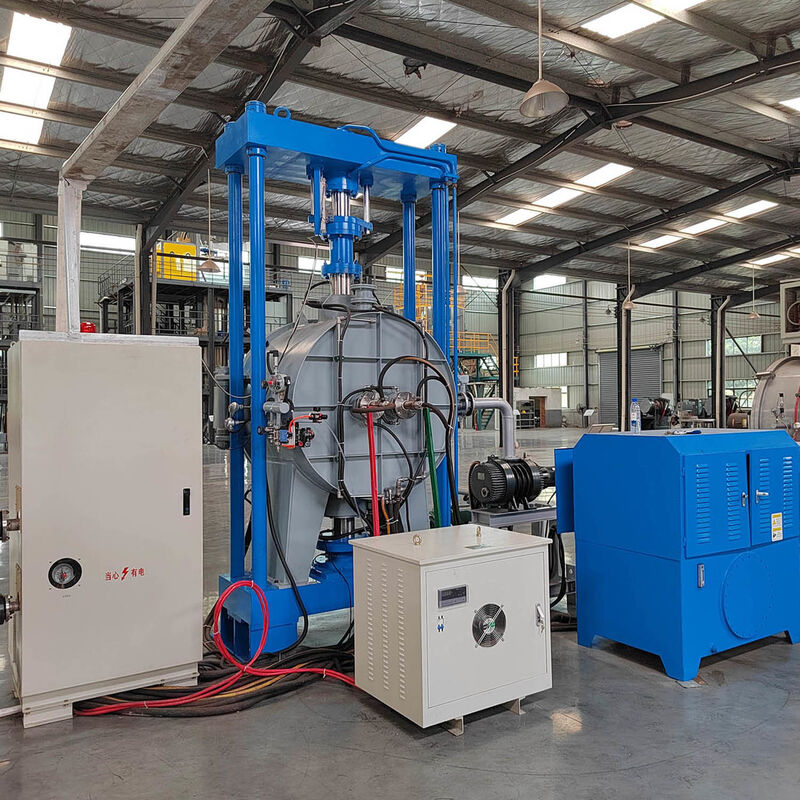

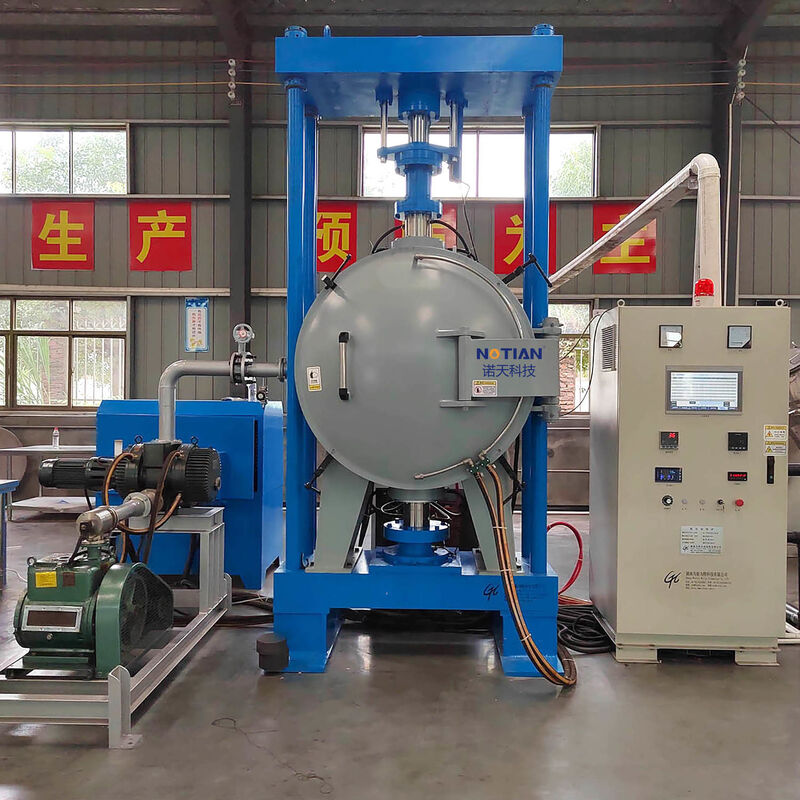

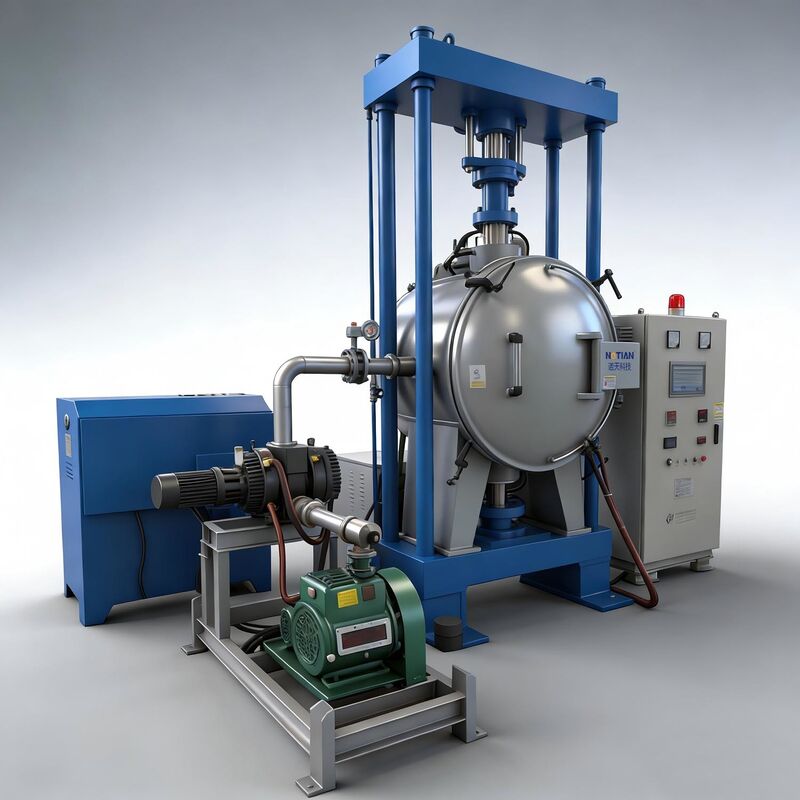

Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2300℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2300℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
