B4C Powder 2300℃ Vacuum Hot Pressing Furnace Resistance Heating Furnace SCR Control
B4C Powder 2300℃ Vacuum Hot Pressing Furnace Resistance Heating Furnace SCR Control
B4C Powder Hot Pressing Furnace
SCR control Hot Pressing Furnace
SCR control Hot Press Vacuum
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-RYL-100T
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
B4C Powder 2300℃ Hot Press Treatment Vacuum Resistance Heating Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2300 Degree Celsius
Model No.:
NTI-RYL-100T
Working Area:
Ø300xH400mm
Input Voltage:
380v
Working Atmosphere:
Vacuum Or Inert Gas Atmosphere
Application:
Sic Powder Hot Press Sintering
Highlight:
B4C Powder Hot Pressing Furnace
,SCR control Hot Pressing Furnace
,SCR control Hot Press Vacuum
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

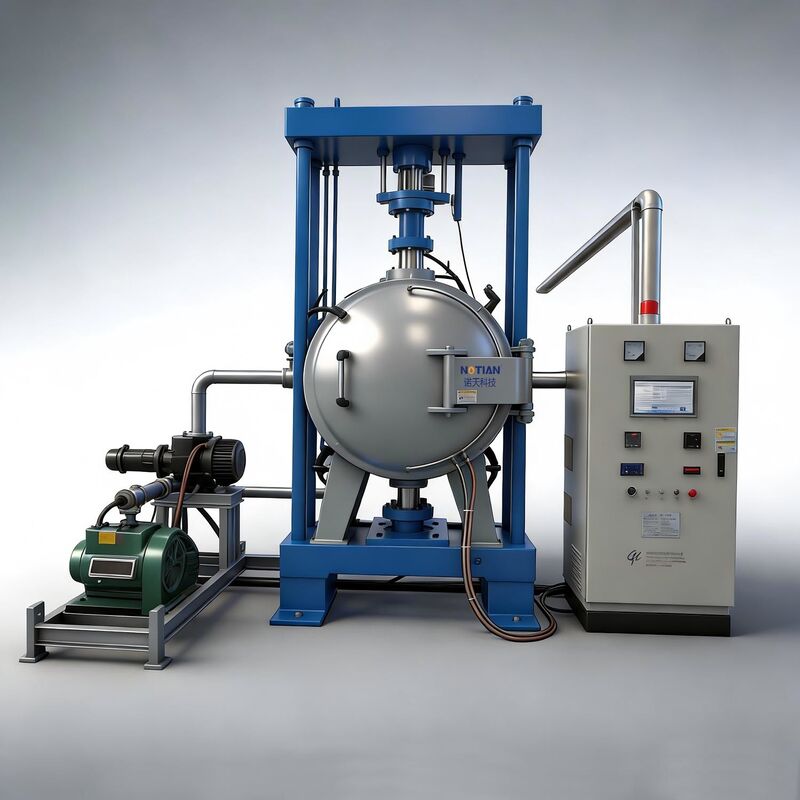

B4C Powder 2300℃ Hot Press Treatment Vacuum Resistance Heating Furnace
Description:
- This 2300C high-temperature vacuum hot press furnace is a batch-type resistance heating equipment,engineered for precise, efficient material processing. Featuring excellent temperature uniformity for superior treatment results, it combines advanced resistance heating tech with a sealed vacuum environment to maintain stable high-temperature conditions.
- Designed with industrial-grade durability, the furnace features a robust structure and intelligent temperature control system—allowing for accurate regulation of heating rates, holding times, and cooling processes. This ensures uniform heating of workpieces.
- Available in multiple sizes, it is suitable for both high-volume production and small-batch processing. It can handle a wide range of materials, from boron carbide and ceramic powders to tungsten powder. Furthermore, it features an intuitive user interface that simplifies workflows and comprehensive safety protection mechanisms, including over-temperature alarms and vacuum leak detection. These features make it a versatile solution that can seamlessly integrate into both laboratory R&D environments and industrial-scale production environments.
Application:
- Ceramic Materials: Boron carbide powder, silicon carbide powder, alumina powder, silicon nitride powder, and other advanced ceramic components.
- Hard Alloys & Metals: Processing of tungsten carbide powder, carbide alloys powder, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
Specification:
|
Hot Press Furnace -- Technology Parameter |
||||||||
|
|
Production usage |
|||||||
|
NTI-RYL-20T |
NTI-RYL-50T |
NTI-RYL-100T |
NTI-RYL-200T |
NTI-RYL-400T |
NTI-RYL-600T |
NTI-RYL-800T |
||
|
Working size |
mm |
ф160x160 |
ф200x300 |
ф300x400 |
ф400x500 |
ф500x600 |
ф600x700 |
ф700x800 |
|
Heating type |
|
Graphite resistance |
||||||
|
Control type |
/ |
SCR control |
||||||
|
Pressure rise rate |
Pa/h |
3 |
5 |
6 |
6 |
6 |
6 |
6 |
|
IF power |
Kw |
40 |
75 |
150 |
250 |
400 |
550 |
700 |
|
Ultimate vacuum |
Pa |
6*10-3 |
||||||
|
Max.working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Pressure |
Ton |
20 |
50 |
100 |
200 |
400 |
600 |
800 |
|
Displacemenet |
mm |
0-100 |
0-150 |
0-250 |
0-350 |
0-450 |
0-550 |
0-650 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2300℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2300℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
