Vacuum Induction Sintering Furnace for NdFe14B Neodymium Magnets
380v sintering furnace
200kw sintering furnace
380v silicon carbide furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-SJL-300W
380v sintering furnace
,200kw sintering furnace
,380v silicon carbide furnace

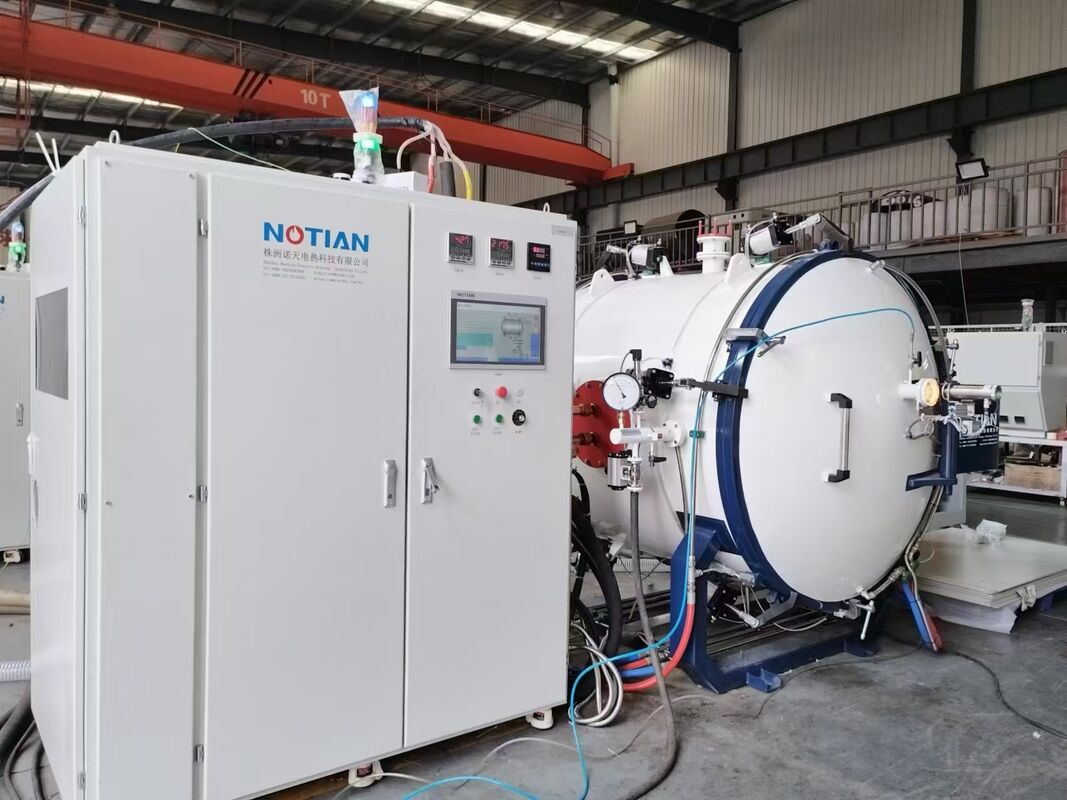

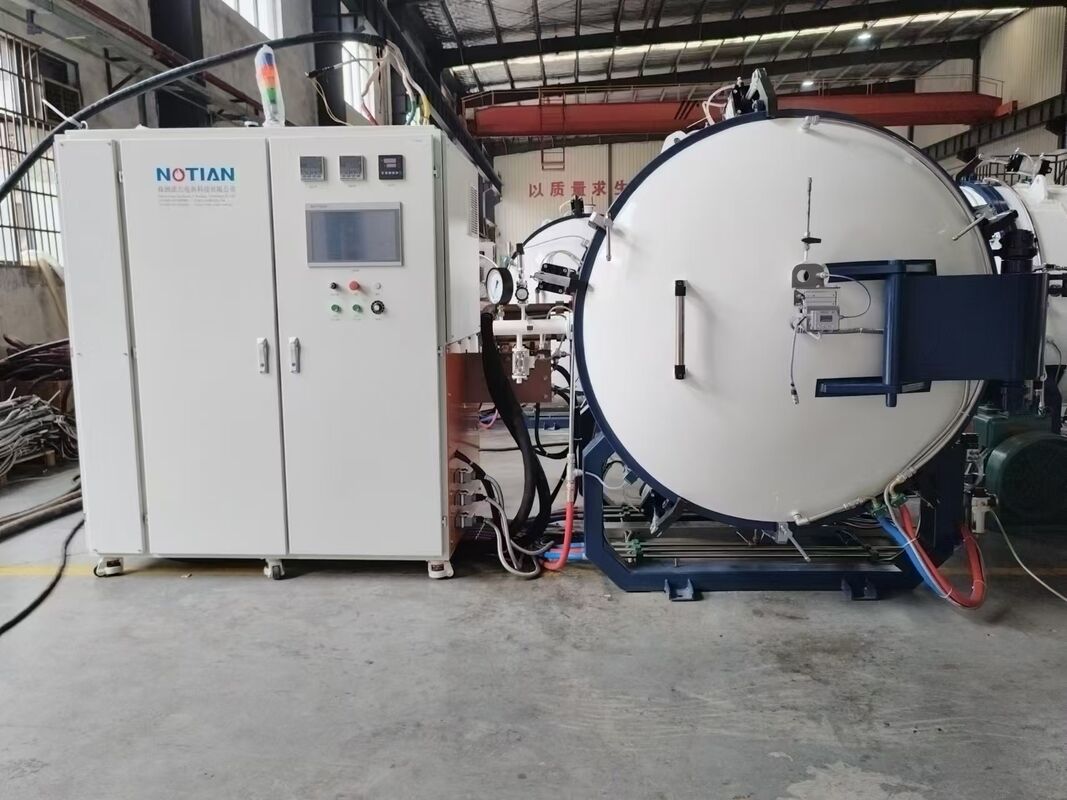

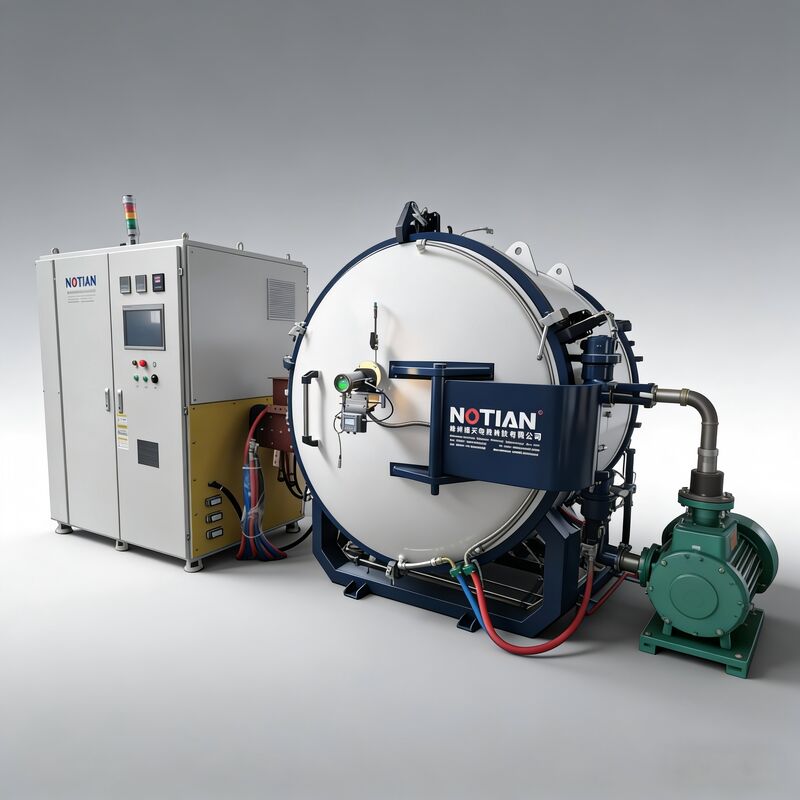

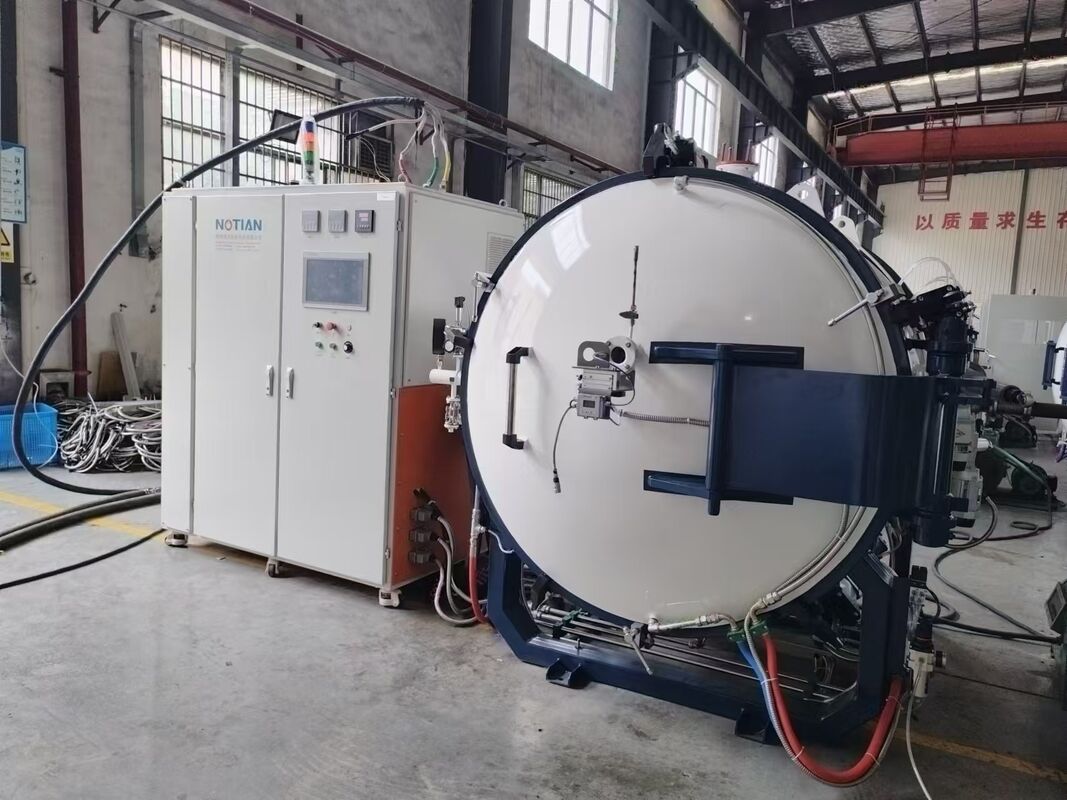

Vacuum Induction Sintering Furnace for NdFe14B Neodymium Magnets
Description:
-
This 2500℃ high-temp vacuum sintering furnace is a batch induction-heating device, with IGBT power control that saves significant energy. Engineered for precise, efficient material processing, it merges advanced electric induction heating with a sealed vacuum environment—keeping stable high temps to satisfy high-performance materials’ strict sintering requirements.
-
Built with industrial durability, it features a sturdy structure and smart temperature control system: this enables accurate adjustment of heating speeds, soak times, and cooling steps, ensuring uniform workpiece heating in sintering.
-
Suited for large-scale or small-batch production, it handles boron carbide plates, ceramic parts, and alloy components. Its intuitive operation panel and safety safeguards (over-temp alerts, vacuum leak checks) work for lab R&D and industrial manufacturing.
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Sintering Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-SJL-54W |
NTI-SJL-98W |
NTI-SJL-300w |
NTI-SJL-400W |
NTI-SJL-1280W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
SCR control or IGBT control(optional) |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
1280 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
120 |
160 |
200 |
250 |
400 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2500℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2500℃.
- Vacuum & Induction Heating: Vacuum environment prevents material oxidation; induction heating ensures fast, uniform temperature distribution.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (ceramics, alloys, special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
