Carbon Material Processing CVD Machine Chemical Vapor Deposition System 200KW
Carbon Material Processing CVD Machine Chemical Vapor Deposition System 200KW
Carbon Material Processing CVD Machine
Chemical Vapor Deposition System 200KW
CVD Machine 200KW
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-CJL-196L
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Supply Control Type:
IGBT Control
Usage:
Heat Treatment Furnace
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Model No.:
NTI-CJL-196L
Maximum Temperature:
2500 Degree Celsius
Power:
200KW
Input Voltage:
380V
Working Area:
D*500*1000mm
Working Environment:
Vacuum, Argon, Nitrogen Atmosphere Protection
Furnace Type:
Vertical
Highlight:
Carbon Material Processing CVD Machine
,Chemical Vapor Deposition System 200KW
,CVD Machine 200KW
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

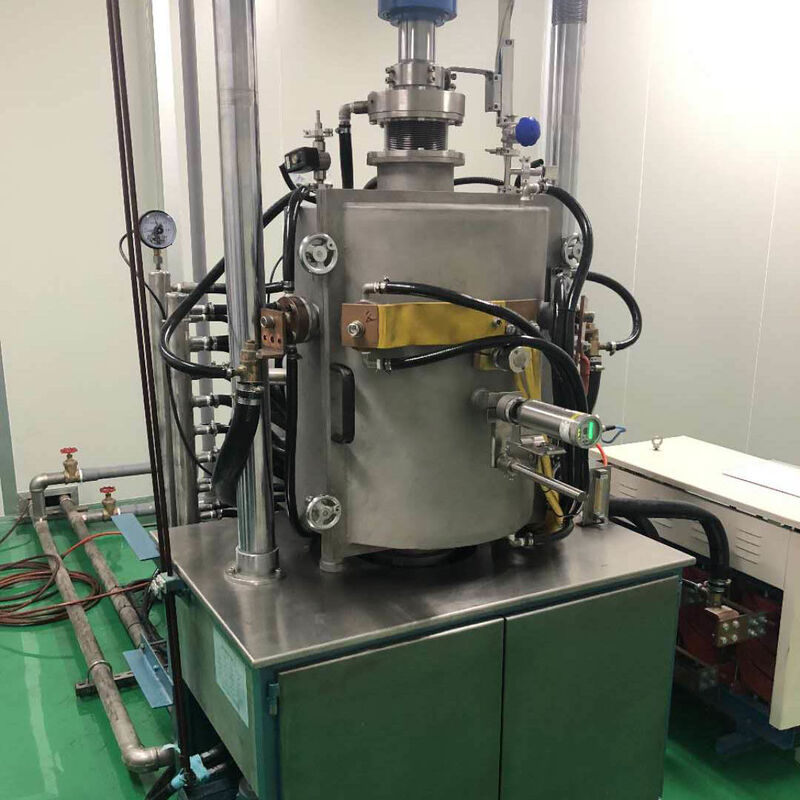

Carbon Material Processing 2500℃ Vacuum Induction CVD Furnace
Description:
- The vertical deposition furnace is specialized in high-temperature (≤2500°C) processing of special ceramic and carbon materials. It utilizes intermediate frequency induction heating, matched with IGBT power control type, which effectively cuts down on energy consumption.
- Equipped with imported high-precision infrared temperature measuring instruments and temperature controllers, it ensures reliable and accurate temperature control. The integrated exhaust collection system achieves "sintering + debinding" in a single step, boosting production efficiency and savingenergy at the same time.
- Boasting a compact and aesthetically pleasing design along with low energy consumption, it iscustomized to fulfill the precise process needs of advanced material production.
Application:
This vertical type vacuum CVD furnace (batch-type induction design) is dedicated to CVD processing for the following materials:
- Carbon-carbon (C/C) composites
- Carbon composite materials
- Graphite components
Specification:
|
CVD Furnace -- Technology Parameter |
||||||
|
|
Production usage |
|||||
|
NTI-CJL-42L |
NTI-CJL-100L |
NTI-CJL-196L |
NTI-CJL-339L |
NTI-CJL-803L |
||
|
Working size |
mm |
φ300×600 |
φ400×800 |
φ500×1000 |
φ600×1200 |
φ800×1600 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
IGBT control |
||||
|
HT zone capacity |
L |
42 |
100 |
196 |
339 |
803 |
|
Overall Dimension |
mm |
5000x6000 |
5500x6500 |
6000x7000 |
6500x7500 |
7000x8000 |
|
Loading weight |
g |
HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
100 |
150 |
200 |
250 |
30 |
|
Ultimate vacuum |
Pa |
50 |
||||
|
Max.working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Vapor deposition temperature |
℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
|
Temperature uniformity |
℃ |
±5 |
±5 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
|
Vapor deposition environment |
/ |
300-3000pa air pressure, charging into CH3CH2CH3, CH4, C3H6 |
||||

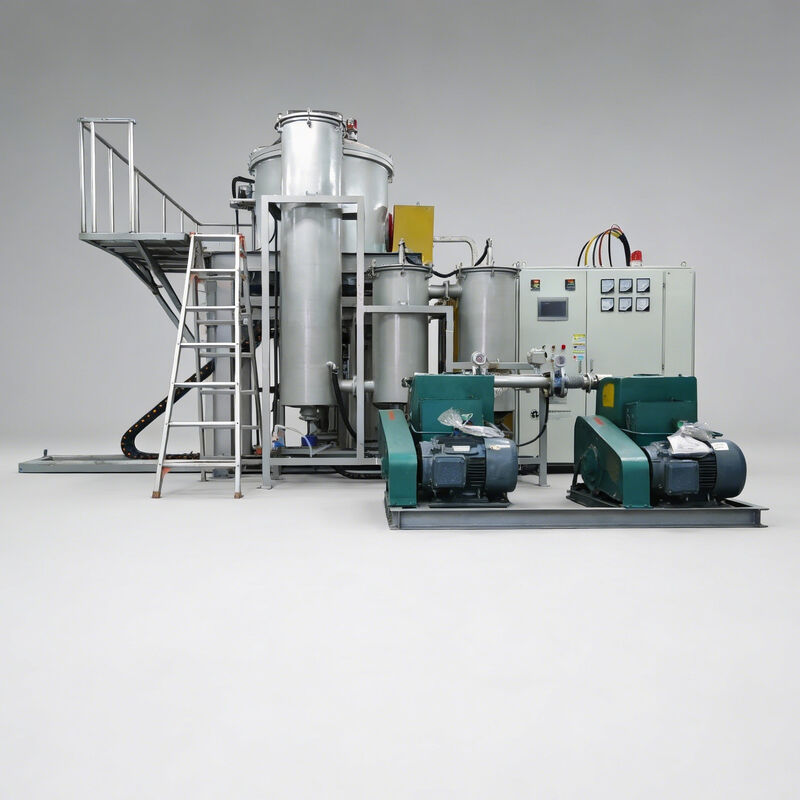

Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2500℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- Precise Temperature Control: Imported thermometers & controllers ensure high accuracy and stability.
- Energy-Efficient Design: Integrated exhaust collection system + low empty furnace power cuts energy costs.
- Customized Protection: Multi-alarm functions (water shortage, overcurrent) enhance operational safety.
- Flexible Gas Control: Separate flow regulation for 3 gases (argon/nitrogen/propylene) adapts to diverse processes.
- Compact & Practical: Vertical structure + aesthetic design saves space while meeting industrial production needs.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
