Industrial Vacuum CVD Furnace With Uniform Heating For Carbon Deposition
Industrial Vacuum CVD Furnace With Uniform Heating For Carbon Deposition
Uniform Heating CVD Furnace
Carbon Deposition CVD Furnace
Uniform Heating CVD Equipment
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-CJL-42L
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Supply Control Type:
IGBT Control
Usage:
Heat Treatment Furnace
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Model No.:
NTI-CJL-42L
Maximum Temperature:
2500 Degree Celsius
Power:
100KW
Input Voltage:
380V
Working Area:
D*300*600mm
Working Environment:
Vacuum, Argon, Nitrogen Atmosphere Protection
Furnace Type:
Vertical
Highlight:
Uniform Heating CVD Furnace
,Carbon Deposition CVD Furnace
,Uniform Heating CVD Equipment
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Industrial 2500℃ Vacuum CVD Furnace with Uniform Heating for Carbon Deposition
Description:

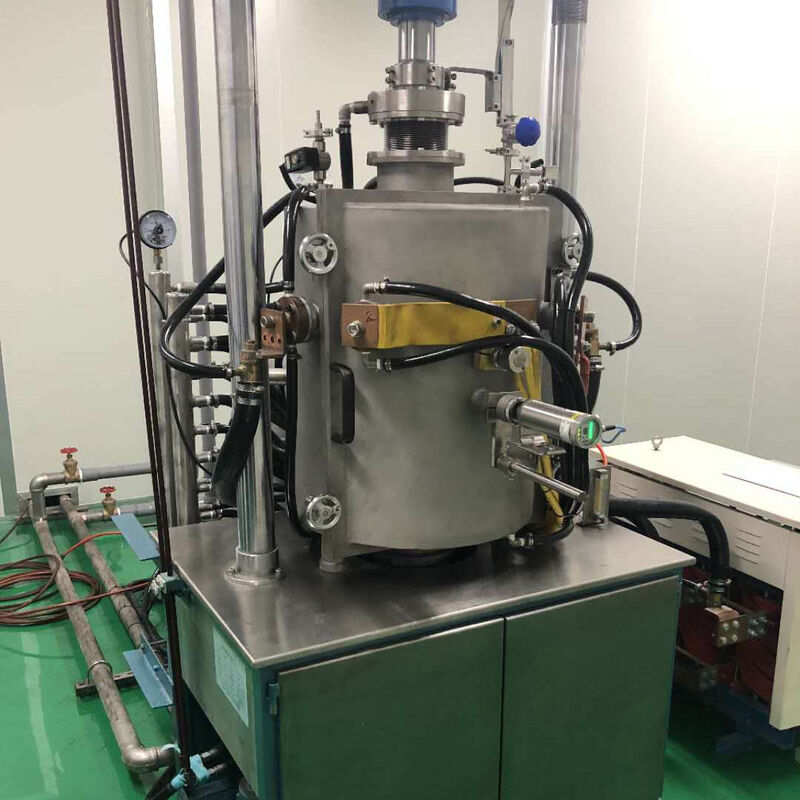

- The vertical deposition furnace is engineered for high-temperature (≤2500℃) processing of special ceramic and carbon materials. It adopts intermediate frequency induction heating, paired with IGBT power control type which really save a lot energy consumption.
- Equipped with high-precision infrared temperature sensors and temperature controllers of importedorigin, it guarantees accurate temperature control. The integrated exhaust gas collection systemrealizes "sintering + debinding" in one step, improving production efficiency and conserving energy concurrently.
- With a compact, aesthetic design and low energy consumption, it’s tailored to meet the precise process requirements of advanced material manufacturing.
Application:
This vertical type vacuum CVD furnace (batch-type induction design) is dedicated to CVD processing for the following materials:
- Carbon-carbon (C/C) composites
- Carbon composite materials
- Graphite components
Specification:
|
CVD Furnace -- Technology Parameter |
||||||
|
|
Production usage |
|||||
|
NTI-CJL-42L |
NTI-CJL-100L |
NTI-CJL-196L |
NTI-CJL-339L |
NTI-CJL-803L |
||
|
Working size |
mm |
φ300×600 |
φ400×800 |
φ500×1000 |
φ600×1200 |
φ800×1600 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
IGBT control |
||||
|
HT zone capacity |
L |
42 |
100 |
196 |
339 |
803 |
|
Overall Dimension |
mm |
5000x6000 |
5500x6500 |
6000x7000 |
6500x7500 |
7000x8000 |
|
Loading weight |
g |
HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
100 |
150 |
200 |
250 |
30 |
|
Ultimate vacuum |
Pa |
50 |
||||
|
Max.working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Vapor deposition temperature |
℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
Wthin 2000 ℃ |
|
Temperature uniformity |
℃ |
±5 |
±5 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
|
Vapor deposition environment |
/ |
300-3000pa air pressure, charging into CH3CH2CH3, CH4, C3H6 |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

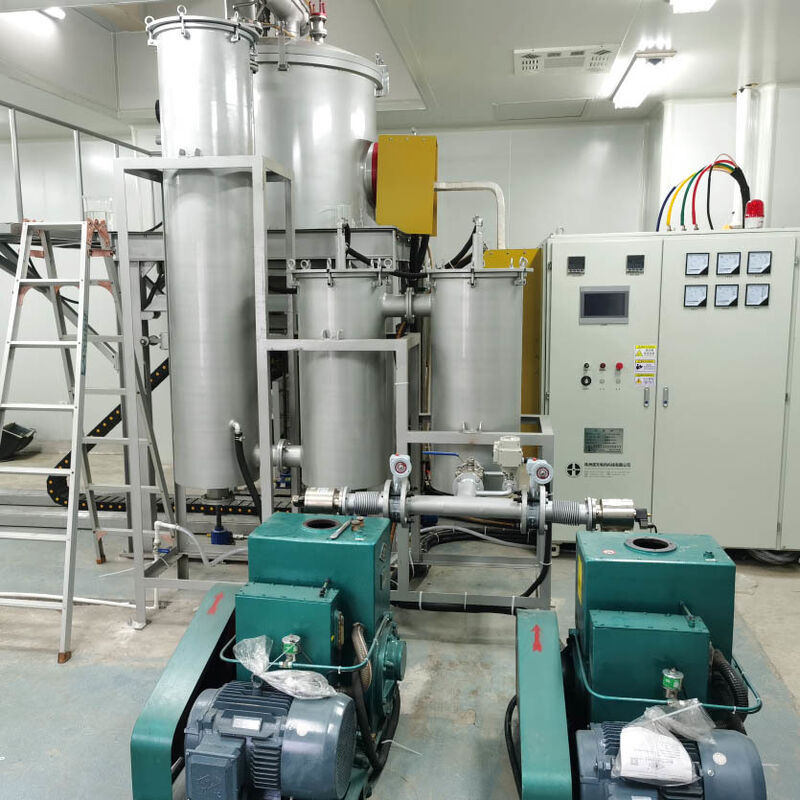

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Raytek (US) infrared thermometer is installed for real-time and accurate high-temperature monitoring (supporting precise temperature adjustment up to 3200°C).
- Air Compressor: An optional auxiliary device that provides stable air supply to pneumatic components.
Feature Advantages:
- Precise Temperature Control: Imported thermometers & controllers ensure high accuracy and stability.
- Energy-Efficient Design: Integrated exhaust collection system + low empty furnace power cuts energy costs.
- Customized Protection: Multi-alarm functions (water shortage, overcurrent) enhance operational safety.
- Flexible Gas Control: Separate flow regulation for 3 gases (argon/nitrogen/propylene) adapts to diverse processes.
- Compact & Practical: Vertical structure + aesthetic design saves space while meeting industrial production needs.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
