380V Efficient High Temperature Resistance Furnace For Magnesium Fluoride And Alloy
380V Efficient High Temperature Resistance Furnace For Magnesium Fluoride And Alloy
380V High Temperature Resistance Furnace
Efficient High Temperature Resistance Furnace
380V resistance heating furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-DZL-54W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
2200℃ Resistance Furnace SIC Boron Carbide Heat Treatment Equipment
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2300 Degree Celsius
Model No.:
NTI-DZL-54W
Working Area:
300x300x600mm
Input Voltage:
380v
Working Atmosphere:
Argon Protection
Application:
Sic Sintering
Highlight:
380V High Temperature Resistance Furnace
,Efficient High Temperature Resistance Furnace
,380V resistance heating furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$ 60000-100000
Packaging Details
Standard Packing by Sea Shipping
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets / Month
RELATED PRODUCTS
Video
Industrial Vacuum Furnace Polysilicon And Rare Earth Sintering Resistor Furnace
Get Best Price
Video
Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt
Get Best Price
CONTACT US
Contact Now
Product Description
High Temp Resistance Furnace for Industrial Production for Magnesium Fluoride & Alloy
Description:
- This production-oriented 1-to-1 vacuum resistance furnace achieves 2200℃ via advanced resistance heating and a sealed vacuum chamber, ensuring uniform temperature distribution for large batches of industrial materials. Powered by 380V 3-phase electricity with thyristor control, it supports non-stop production cycles for high-demand manufacturing.
- Its heavy-duty frame withstands the rigors of industrial use, while the precision temperature control system calibrates heating rates and hold times to eliminate product defects. The furnace’s energy-efficient design reduces operational costs without sacrificing performance, ideal for cost-sensitive mass production.
- With automated safety safeguards (vacuum leak monitoring, over-temperature protection, power-off backup) and a user-friendly panel, it requires minimal manual intervention, making it suitable for large-scale processing of magnesium fluoride, hard alloys, and carbon materials.
Application:
- Magnesium Fluoride Production: Mass sintering of magnesium fluoride for optical and electronic component manufacturing.
- Alloy Heat Treatment: Continuous processing of rhenium and tungsten carbide alloys for aerospace components.
- Carbon Material Debinding: High-throughput treatment of PI film and radiation-proof materials for industrial applications.
Specification:
|
Resistance Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-DZL-54W |
NTI-DZL-98W |
NTI-DZL-300w |
NTI-DZL-400W |
NTI-DZL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
100 |
150 |
300 |
400 |
650 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Usual working temperature |
℃ |
2200 |
2200 |
2200 |
2200 |
2200 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:

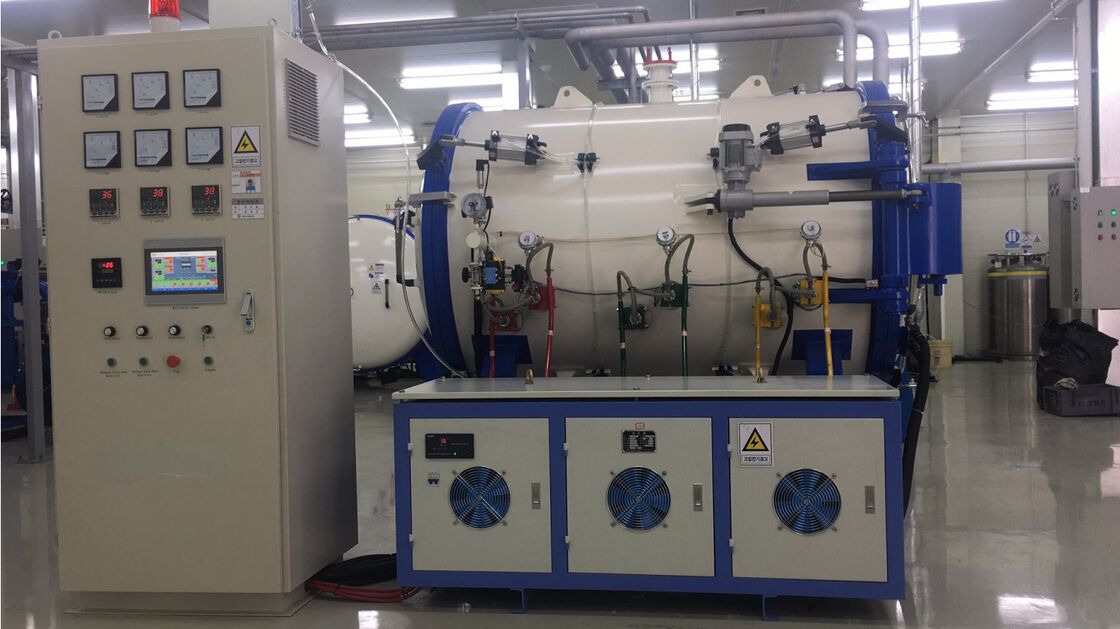

- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2200℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2200℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
