Industrial Grade Vacuum Induction Furnace For Sintering SiC Up To 2500°C
Industrial Grade Vacuum Induction Furnace For Sintering SiC Up To 2500°C
Industrial Grade Vacuum Induction Furnace
2500°C Vacuum Induction Furnace
2500°C industrial vacuum furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-SJL-300W
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Control:
IGBT
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
Induction Heat Treatment Vacuum Induction Heating Stove Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2500 Degree Celsius
Model No.:
NTI-SJL-300W
Power:
200KW
Working Area:
500x500x1200mm
Input Voltage:
380v
Working Atmosphere:
Argon Protection
Application:
Silicon Carbide Sintering
Highlight:
Industrial Grade Vacuum Induction Furnace
,2500°C Vacuum Induction Furnace
,2500°C industrial vacuum furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$60000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

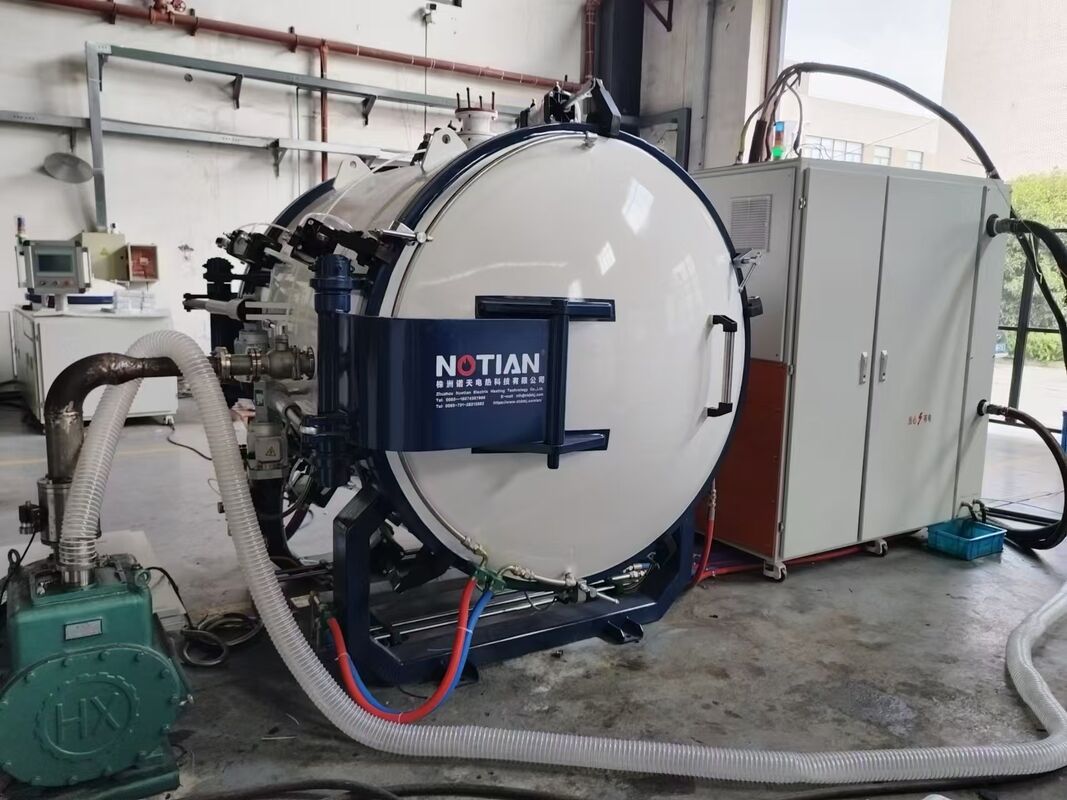

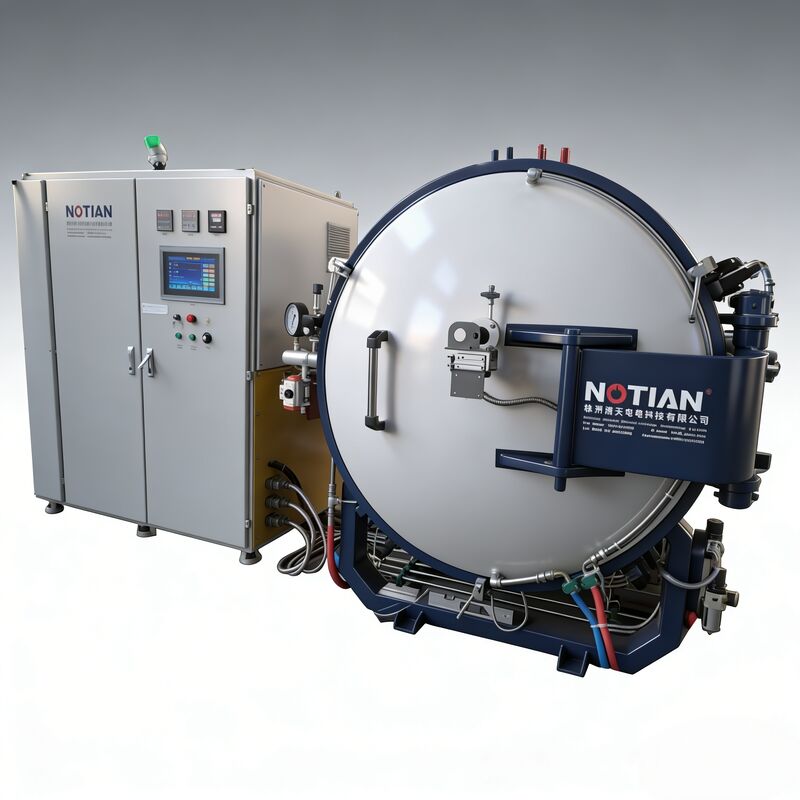

Induction Furnace for Sintering SiC Up to 2500°C with Vacuum Environment
Description:
- This 2500℃ batch-type high-temperature vacuum sintering furnace relies on IGBT-controlled induction heating— a design that drastically reduces energy consumption while ensuring efficient material processing.
- It integrates advanced electric induction heating technology with a hermetically sealed vacuum environment, maintaining stable high-temperature conditions critical for the precise sintering of high-performance materials.
- Built with industrial-grade durability, its robust structure pairs with an intelligent temperature control system: this allows precise regulation of heating rates, holding times, and cooling processes, guaranteeing uniform workpiece heating during sintering.
- Suitable for both large-scale and small-batch production, it handles diverse components (boron carbide plates, ceramic parts, alloy components).
- Its user-friendly interface and safety safeguards—including over-temperature alarms and vacuum leakage detection—make it ideal for both laboratory R&D and industrial manufacturing scenarios.
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Sintering Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-SJL-54W |
NTI-SJL-98W |
NTI-SJL-300w |
NTI-SJL-400W |
NTI-SJL-1280W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
SCR control or IGBT control(optional) |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
1280 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
120 |
160 |
200 |
250 |
400 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

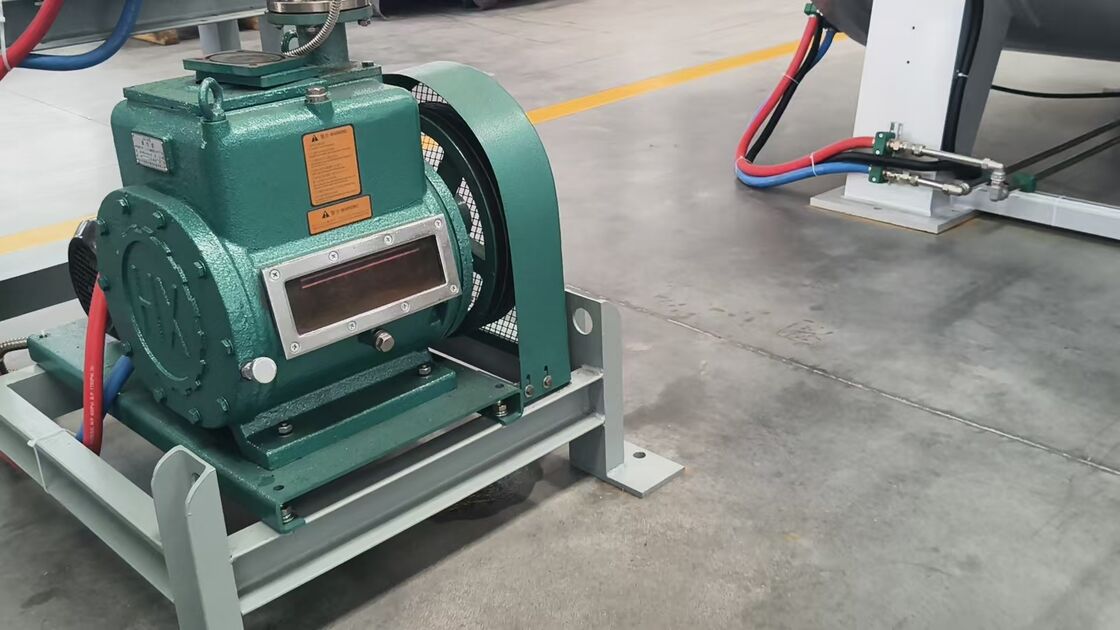

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.

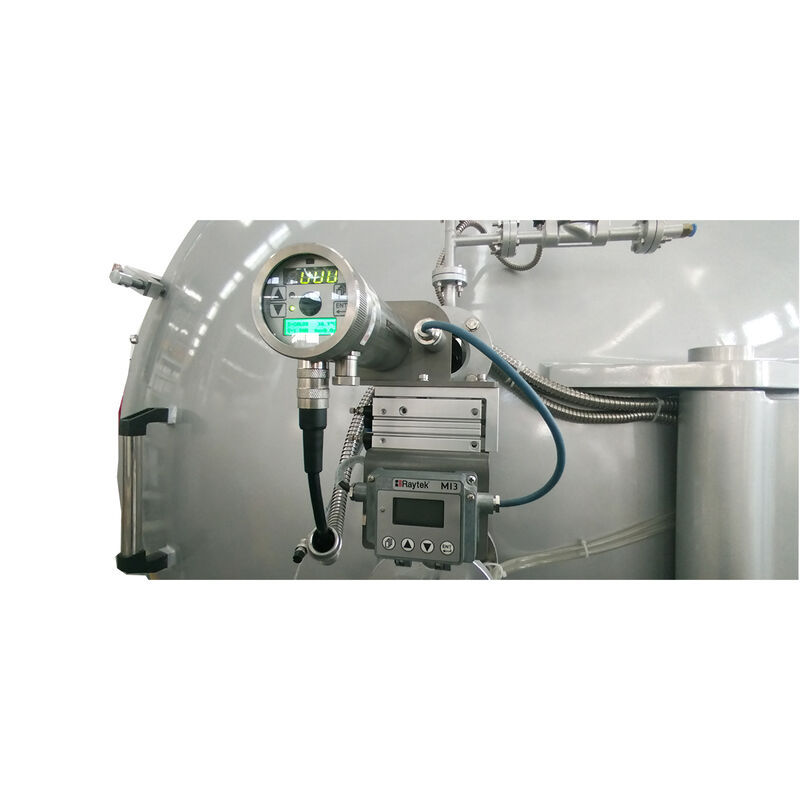

- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2500℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2500℃.
- Vacuum & Induction Heating: Vacuum environment prevents material oxidation; induction heating ensures fast, uniform temperature distribution.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (ceramics, alloys, special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
