2800℃ Vacuum Induction Furnace for Carbon Material & Radiation-Proof Material
2800℃ Vacuum Induction Furnace for Carbon Material & Radiation-Proof Material
industrial Carbonization Furnace
high temperature Carbonization Furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-SML-576W
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Supply Control Type:
IGBT Control
Usage:
Heat Treatment Furnace
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Model No.:
NTI-SML-576W
Maximum Temperature:
2800℃
Power:
500KW
Input Voltage:
380V
Working Area:
600x600x1600mm
Working Environment:
Vacuum Or Argon Atmosphere Protection( Micro Positive Pressure)
Furnace Type:
Horizontal
Highlight:
industrial Carbonization Furnace
,high temperature Carbonization Furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$60000-100000
Packaging Details
Standard packing by sea
Delivery Time
90 Days
Payment Terms
,T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
Video
High-Temp Vacuum Furnace 2800℃ for Graphitization of Carbon Material & Pet Coke
Get Best Price
CONTACT US
Contact Now
Product Description
2800℃ Vacuum Induction Furnace for Carbon Material & Radiation-Proof Material
Description:
-
IGBT Power Control: The 2800℃ vacuum induction graphitization furnace is equipped with a high-efficiency IGBT power control system, which can accurately adjust the output power, realize rapid heating and stable heat preservation, and effectively save energy consumption.
-

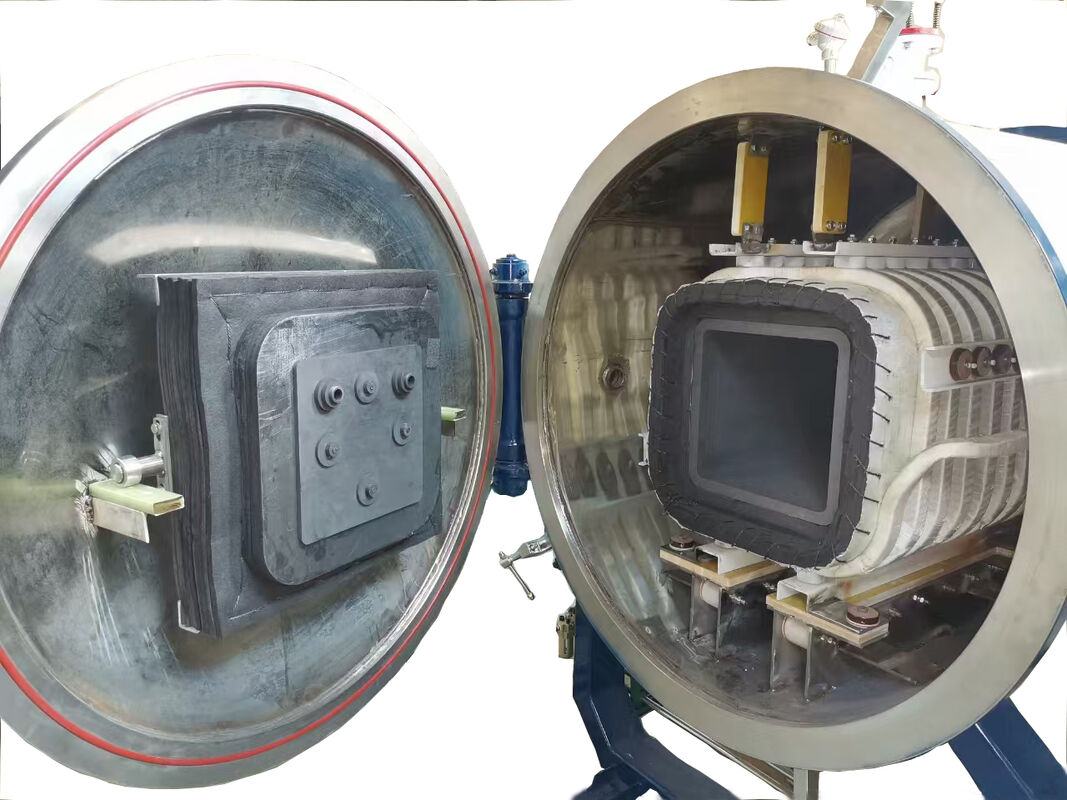

Vacuum Induction Heating: Adopting advanced vacuum induction heating technology, the heat is directly generated inside the material, with high heating efficiency and uniform temperature distribution, which can significantly improve the graphitization degree and uniformity of the material.
-
Protective Atmosphere Design: It can work under vacuum, argon or nitrogen protective atmosphere (micro positive pressure), effectively isolating the external air, preventing material oxidation and ensuring the purity of the graphitized products.
-
Application Fields: Widely used in the graphitization processing of carbon fiber, carbon materials, carbon nano materials, negative electrode materials, graphite powder, rare earth, rhenium materials, pet coke, green coke, radiation-proof materials and contacting terminal materials. It is suitable for scientific research and industrial production.
Application:
This 2800℃ Vacuum Induction Graphitization Furnace is widely applicable in multiple high-temperature material processing scenarios:
- Carbon fiber processing: Carbonization and graphitization treatment of carbon fiber precursors to enhance their thermal stability and mechanical strength.
- Battery material production: High-temperature treatment of battery negative materials (e.g., graphite negative electrodes) to optimize their electrochemical performance.
- Advanced material manufacturing: Graphitization of graphite powder and graphene.
- Protective atmosphere processing: Finishing graphitization of products under Argon protective atmosphere to meet the requirements of carbon material internal molecular structure modification and performance.
Specification:
|
Graphitization Furnace -- Technology Parameter |
||||||
|
Lab usage |
Production usage |
|||||
|
NTI-SML-54W |
NTI-SML-98W |
NTI-SML-128W |
NTI-SML-400W |
NTI-SML-576W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
400×400×800 |
500×500×1600 |
600×600×1600 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
SCR control or IGBT control(optional) |
||||
|
HT zone capacity |
L |
54 |
98 |
128 |
400 |
576 |
|
Loading weight |
g |
HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
150 |
200 |
250 |
350 |
500 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max. temperature |
℃ |
3000 |
3000 |
3000 |
2900 |
2900 |
|
working temperature |
℃ |
2800 |
2800 |
2800 |
2800 |
2800 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±15 |
|
Working environment |
/ |
Vacuum or Ar. Nitrogen atmosphere protection(micro positive pressure) |
||||
Feature Advantages:
- Extreme High-Temperature Capability: Reaches up to 2800℃, ideal for processing carbon fiber, graphite, etc.
- Precision Temperature Control: ±1℃ control accuracy and ≤±10℃ furnace uniformity.
- Flexible Operation: Switch between automatic process control and manual mode to fit different production processes.
- Clean Processing Environment: High vacuum and protective atmosphere support.
- Scalable Models: 5 options (from 54L to 576L) → suits lab tests and large-scale industrial production.
Furnace Configuration:

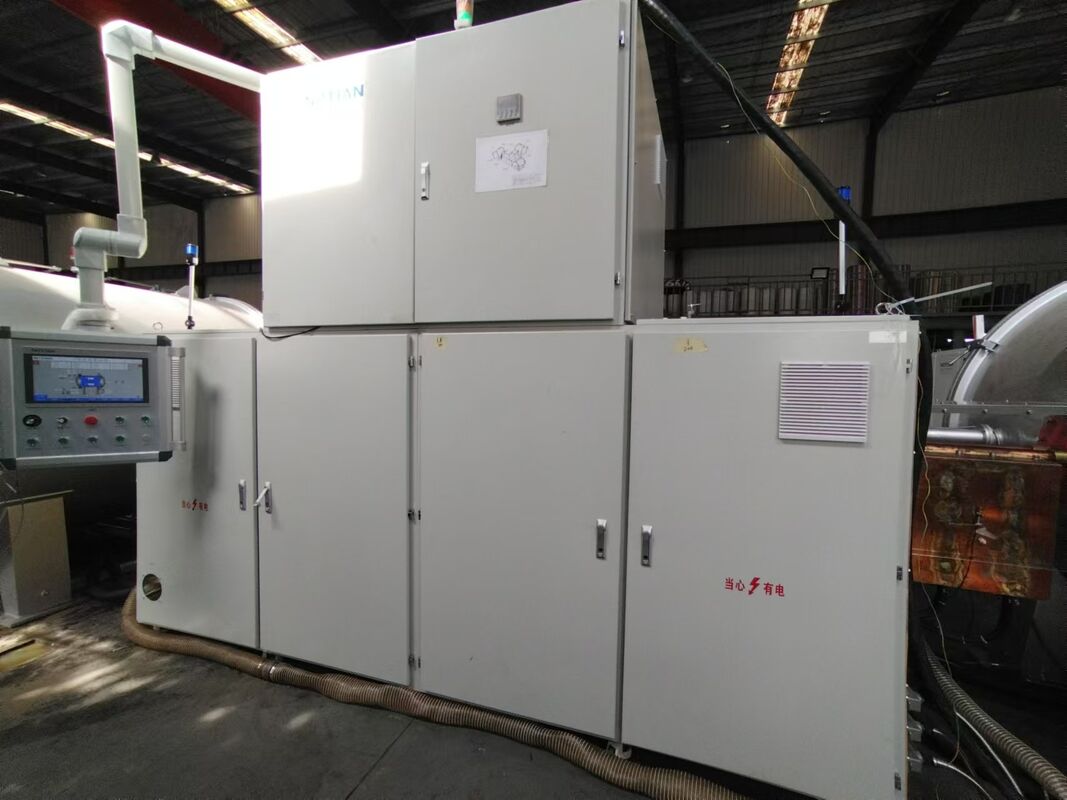

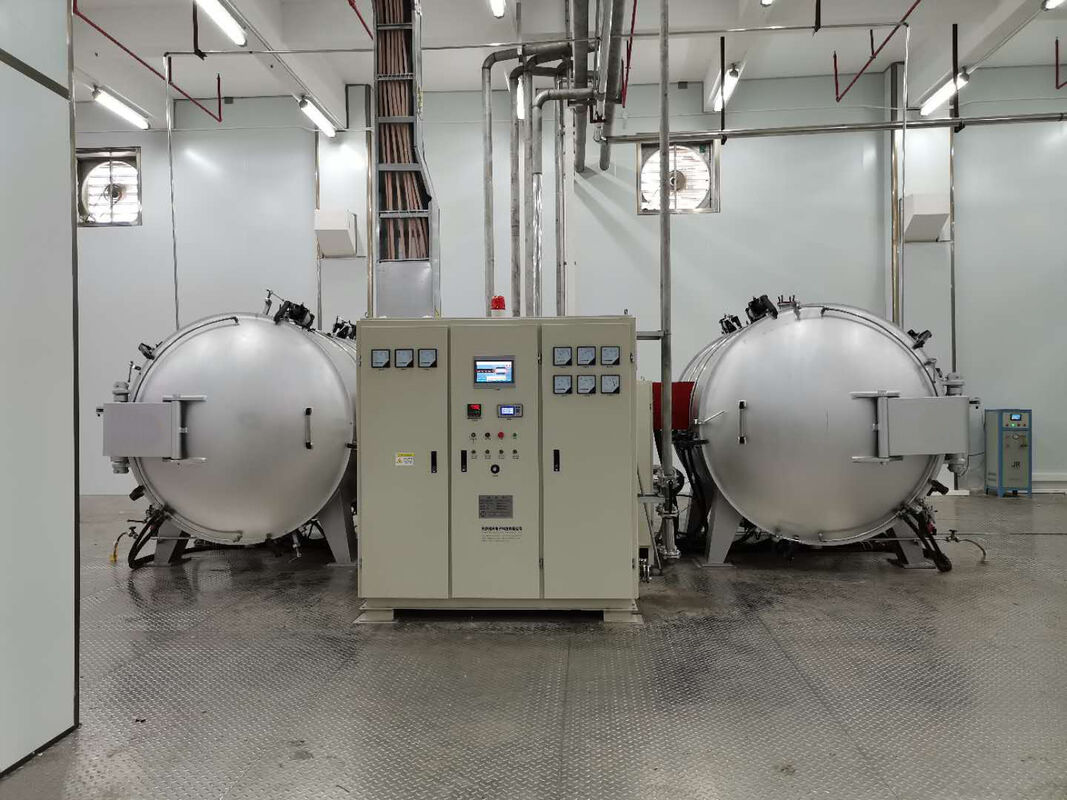

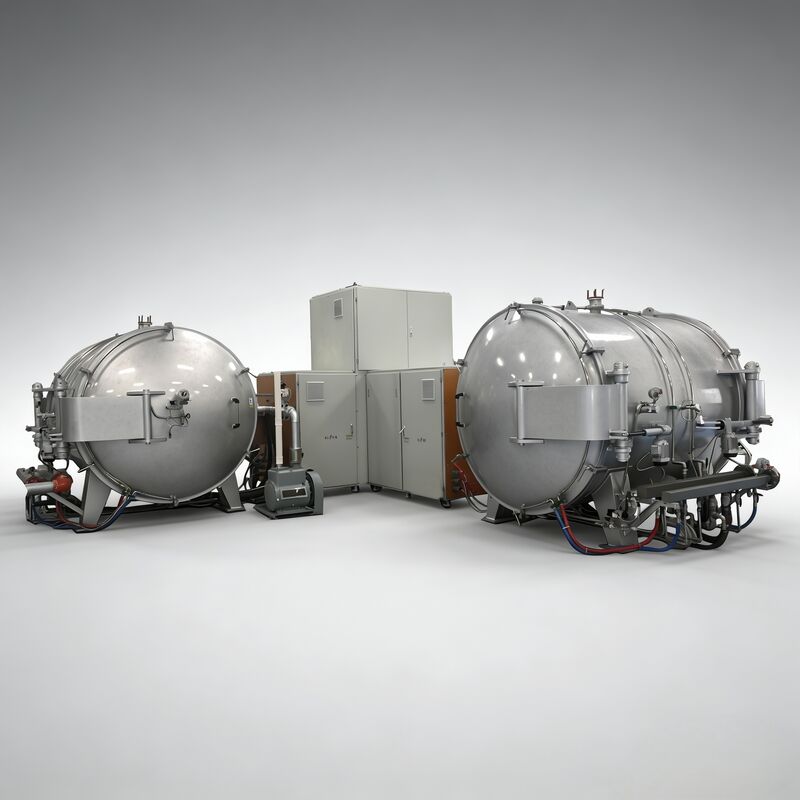

- Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2400℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
