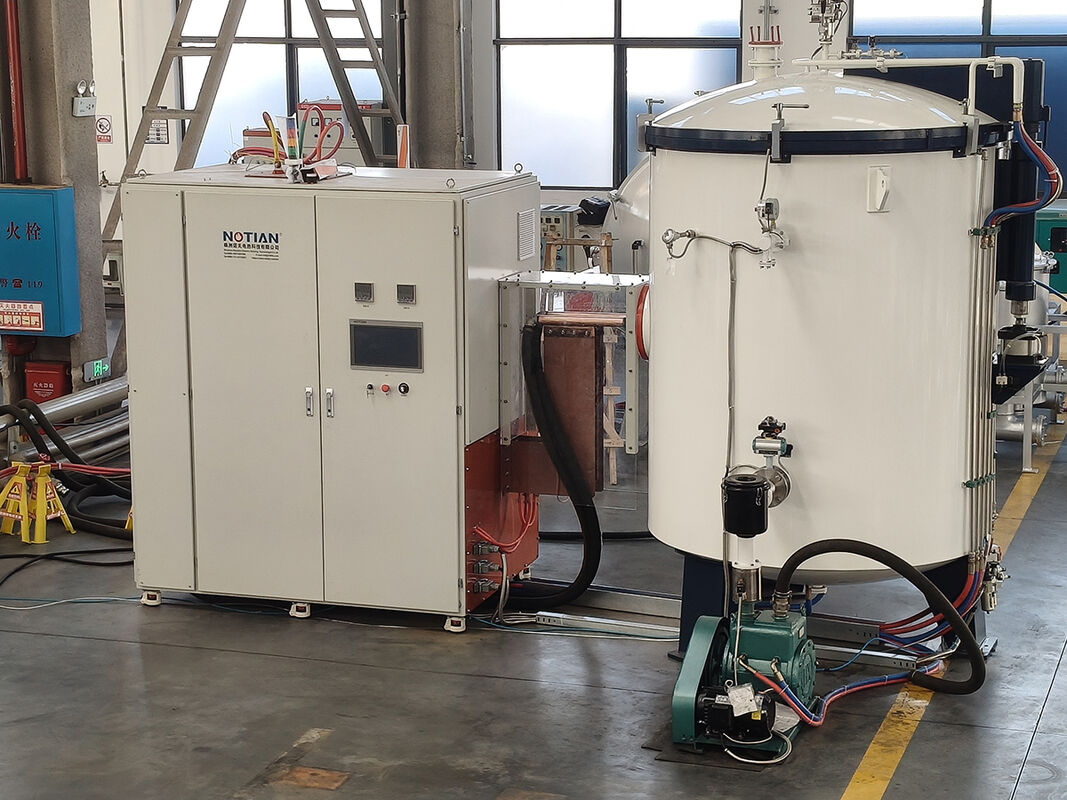

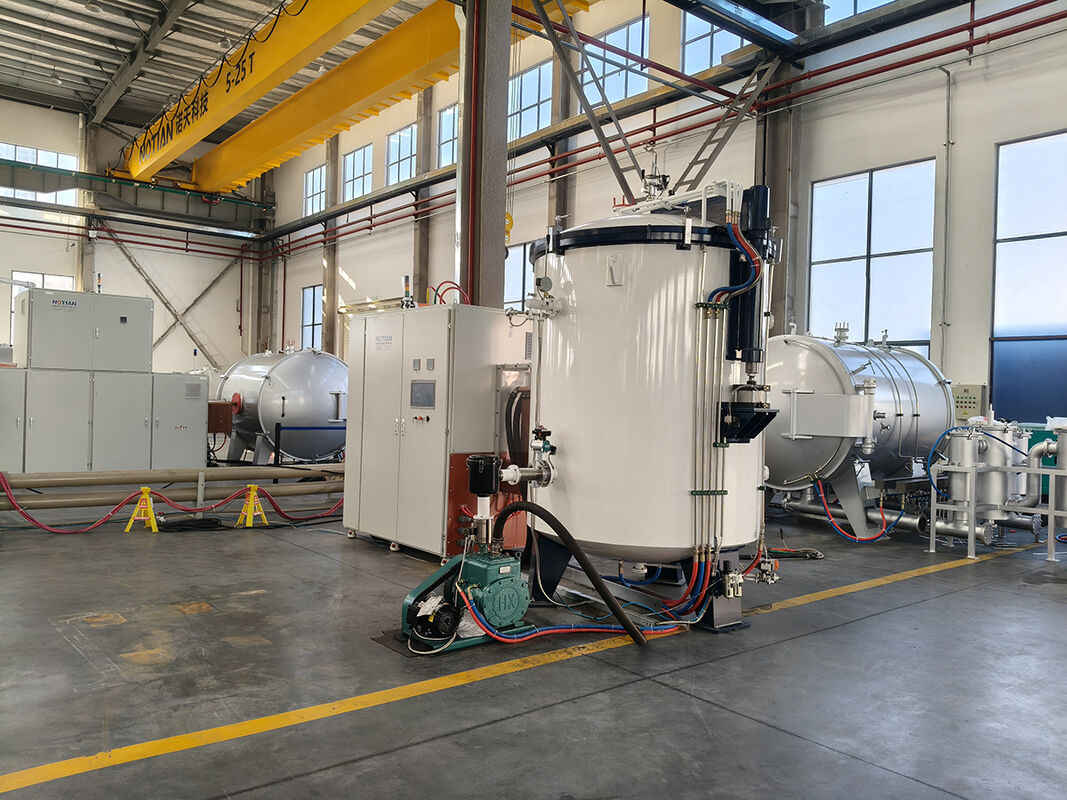

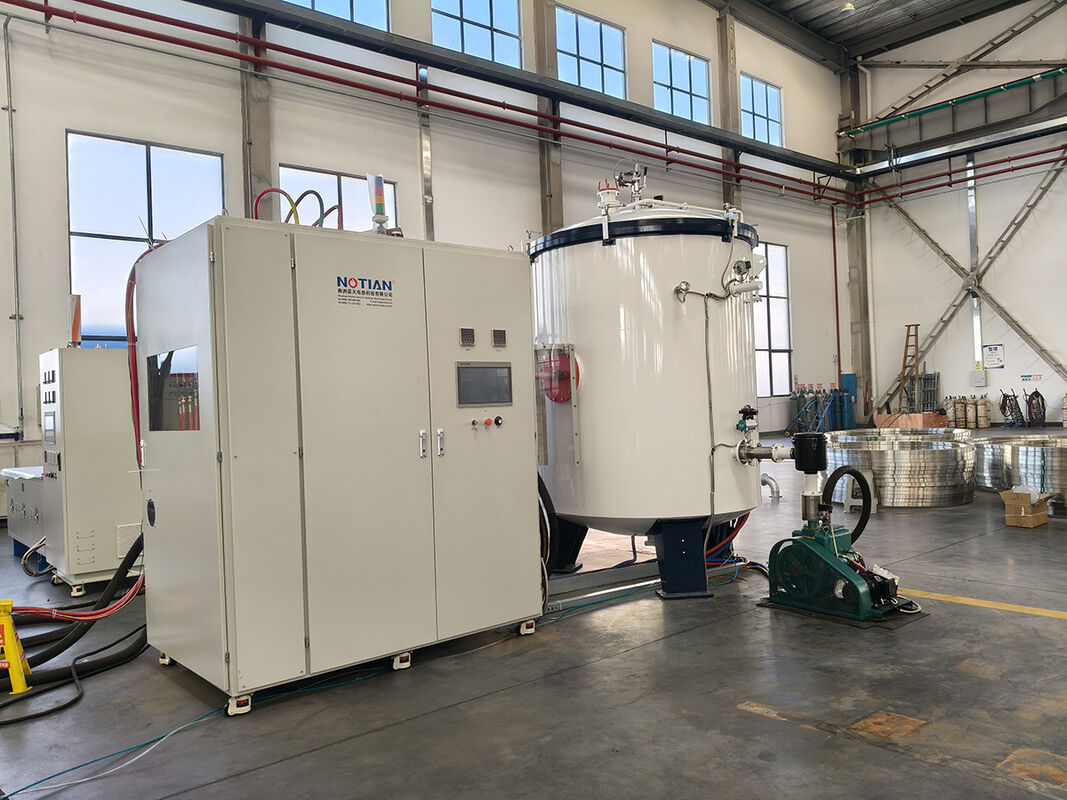

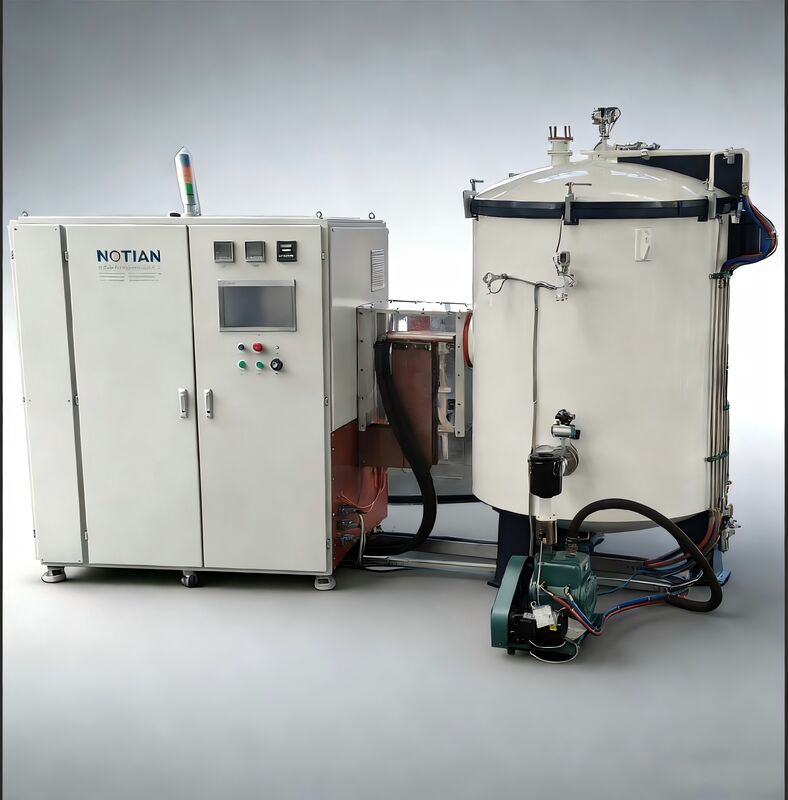

Carbon Fiber Material Processing 2800℃ Vacuum Induction Graphitization Furnace

Description:

• The 2800℃ Vacuum Induction Graphitization Furnace, utilizing advanced IGBT (Insulated-Gate Bipolar Transistor) control technology, is engineered to significantly reduce energy consumption while delivering exceptional performance in high-temperature material processing.

• This Vertical Type graphitization furnace has special advantages like much higher temperature unformity with lage capacity.

• It is specifically optimized for critical applications such as carbon fiber graphitization and the treatment of other advanced high-temperature materials.

• By integrating precise vacuum induction heating with sophisticated temperature management systems, the furnace achieves remarkable thermal accuracy and uniformity, which are essential for producing premium-grade materials with consistent properties

Application:

• Carbon fiber processing: Carbonization and graphitization treatment of carbon fiber precursors to enhance their thermal stability and mechanical strength.
• Battery material production: High-temperature treatment of battery negative materials (e.g., graphite negative electrodes) to optimize their electrochemical performance.
• Advanced material manufacturing: Graphitization of graphite powder and graphene.
• Protective atmosphere processing: Finishing graphitization of products under Argon protective atmosphere to meet the requirements of carbon material internal molecular structure modification and performance.

Specification:

Feature Advantages:

• Extreme High-Temperature Capability: Reaches up to 2800℃, ideal for processing carbon fiber, graphite, etc.
• Precision Temperature Control: ±1℃ control accuracy and ≤±10℃ furnace uniformity.
• Flexible Operation: Switch between automatic process control and manual mode to fit different production processes.
• Clean Processing Environment: High vacuum and protective atmosphere support.
• Scalable Models: 5 options (from 54L to 576L) → suits lab tests and large-scale industrial production.

Furnace Configuration:

• Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

• Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
• Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
• Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
• Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2400℃).
• Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
