Industrial Grade Heating Treatment Furnace High Temp Graphite Resistance Furnace
Industrial Grade Heating Treatment Furnace High Temp Graphite Resistance Furnace
Industrial Grade Heating Treatment Furnace
High temp Graphite Resistance Furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-THL-54W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
Graphite Heating Treatment 1600℃ High-temp Graphite Resistance Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
1600 Degree Celsius
Model No.:
NTI-THL-54W
Power:
50KW
Working Area:
300x300x600mm
Input Voltage:
380v
Working Atmosphere:
Nitrogen Protection
Application:
Graphite Powder Sintering
Highlight:
Industrial Grade Heating Treatment Furnace
,High temp Graphite Resistance Furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Graphite Heating Treatment 1600℃ High-temp Graphite Resistance Furnace
Description:

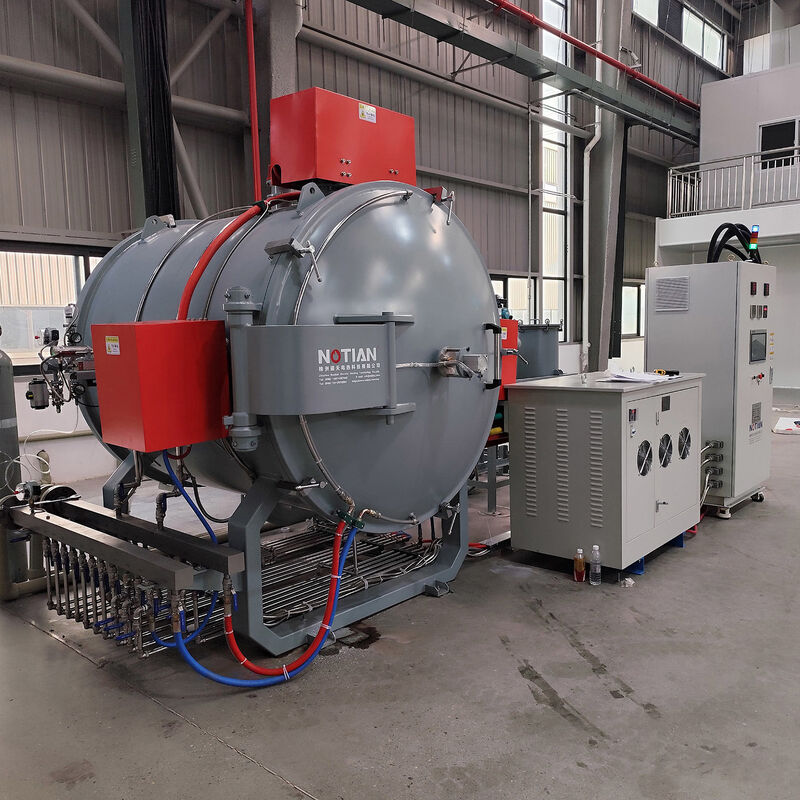

- The 1600C vacuum carbonization furnace, a batch resistance heating system developed forspecific applications, boasts superior temperature uniformity to achieve optimal material processing results. Tailored specifically for precise and high-efficiency treatment processes, it unites advanced electric resistance heating technology with a hermetically sealed vacuum chamber, guaranteeing thesustainment of steady and consistent high-temperature environments in every step of the processing cycle.
- Crafted with industrial-grade sturdiness, the furnace features a solid structure and anintelligent temperature management system-facilitating precise regulation of heating rates, holdingperiods, and cooling workflows. This efficiently secures uniform heating of workpieces.
- Multipal size optional,suited for both large-volume production runs and small-batch processing tasks, it supports the processing of various components (including boron carbide plates, ceramic parts, and alloy components). Its user-friendly operation interface and safety protection mechanisms (such as over-temperature alarm and vacuum leakage detection etc.) make it suitable for both laboratory R&D and industrial manufacturing scenarios.
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Carbonization Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-THL-54W |
NTI-THL-98W |
NTI-THL-300w |
NTI-THL-400W |
NTI-THL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
50 |
100 |
120 |
135 |
185 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Usual working temperature |
℃ |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:

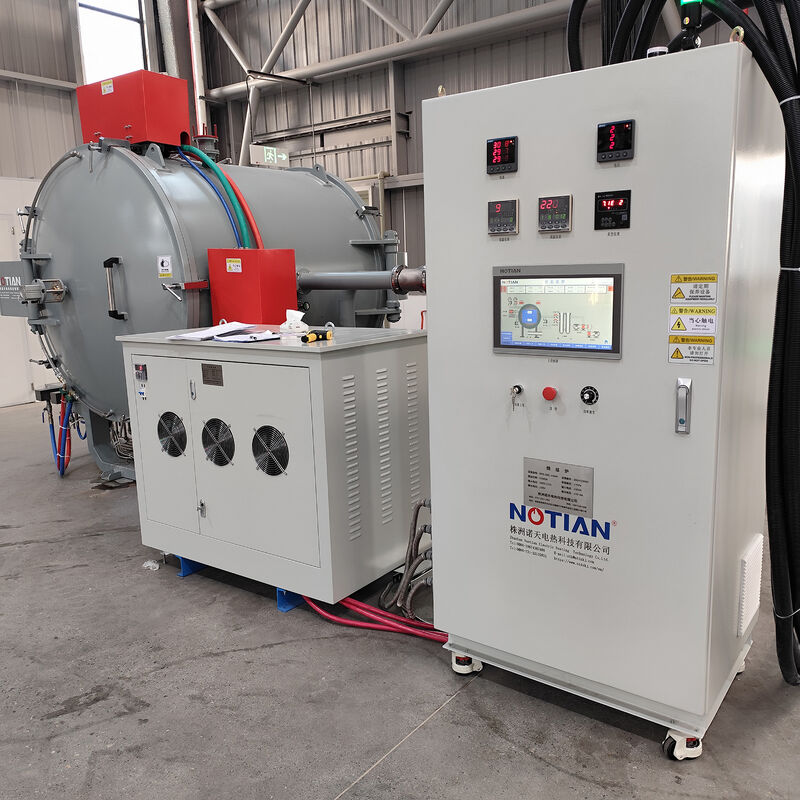

- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

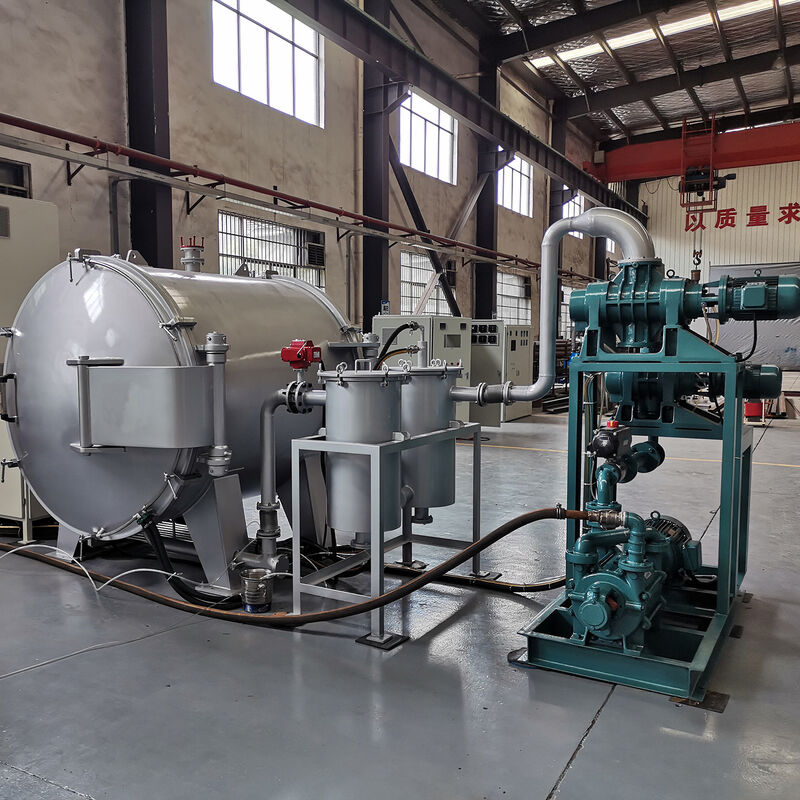

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 1600℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 1600℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
