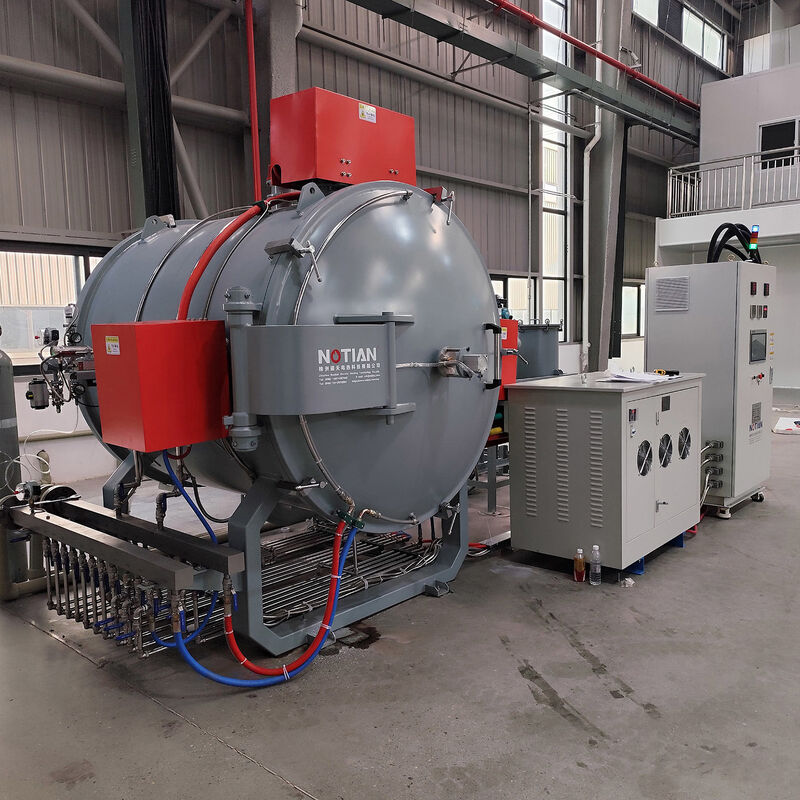

Large Capacity Atmosphere Resistance Furnace for Carbon Nano Debinding&Sintering

Description:

• The 1600C vacuum carbonization furnace, a batch-type resistance heating systemdeveloped for specific purposes, possesses excellent temperature uniformity to attain ideal materialprocessing effects. Tailored specifically for precise and high-efficiency treatment operations, itcombines advanced electrical resistance heating technology with a hermetically sealed vacuumchamber, ensuring the sustainment of stable and consistent high-temperature conditions during everystep of the processing process.
• Designed with industrial-grade resilience, the furnace boasts a sturdy construction and an intelligent temperature regulation system, allowing for accurate control over heating rates, holding durations, and cooling operations. This effectively secures uniform heating for workpieces.
• Multiple size options provided, compatible with both large-scale production runs and small-batch processing jobs, it supports the machining of diverse components (including boron carbideplates, ceramic parts, and alloy components). Its easy-to-operate interface and safety protectionmechanisms (such as over-temperature alarm and vacuum leakage detection, etc.) allow it to beapplied in both laboratory R&D and industrial manufacturing applications.



Application:

• Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
• Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
• Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
• Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.







Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 1600℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.

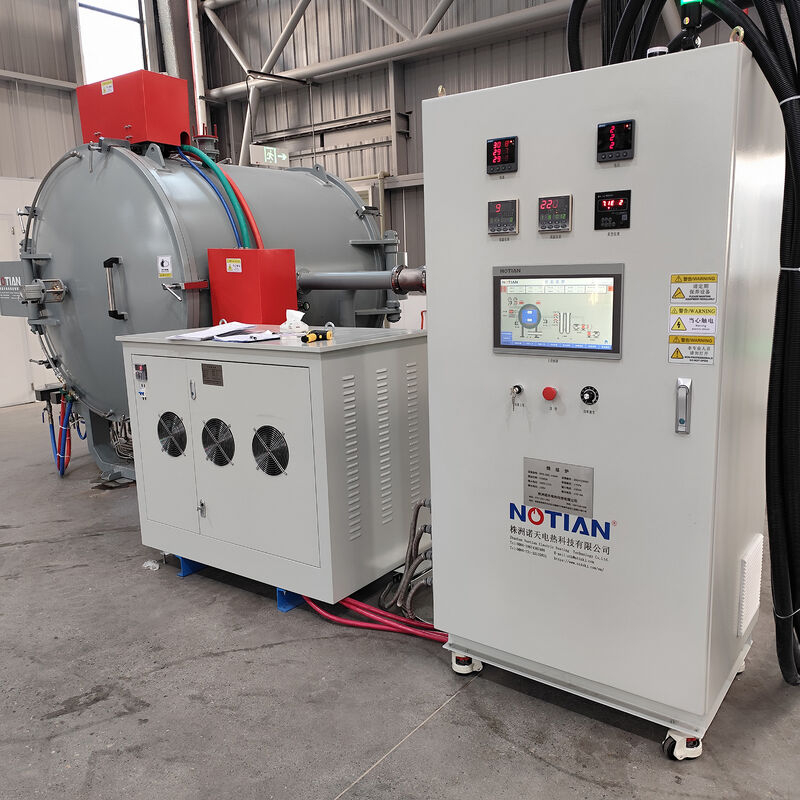

• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
