Description:

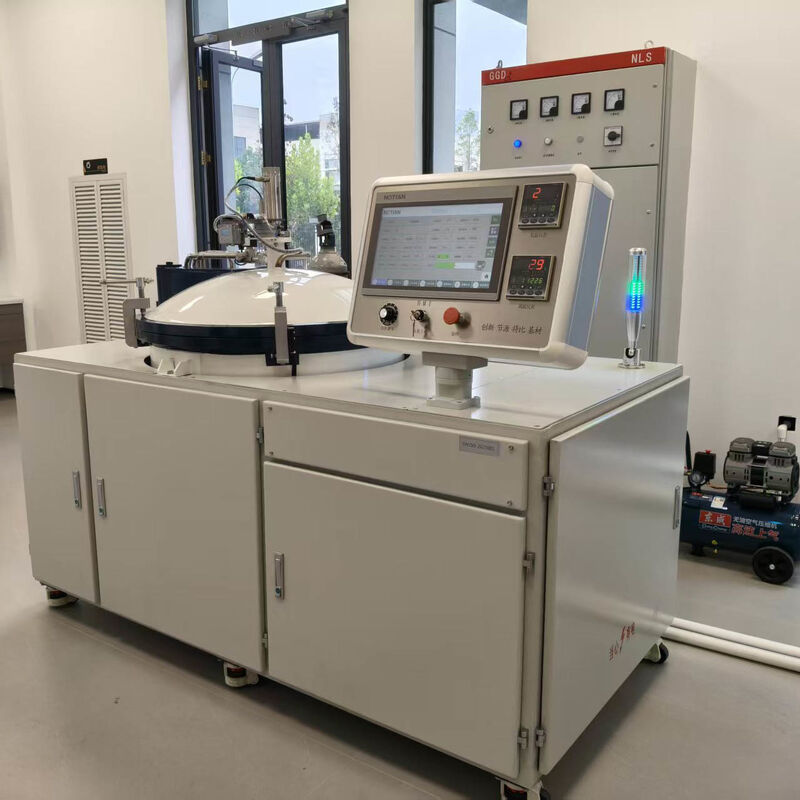

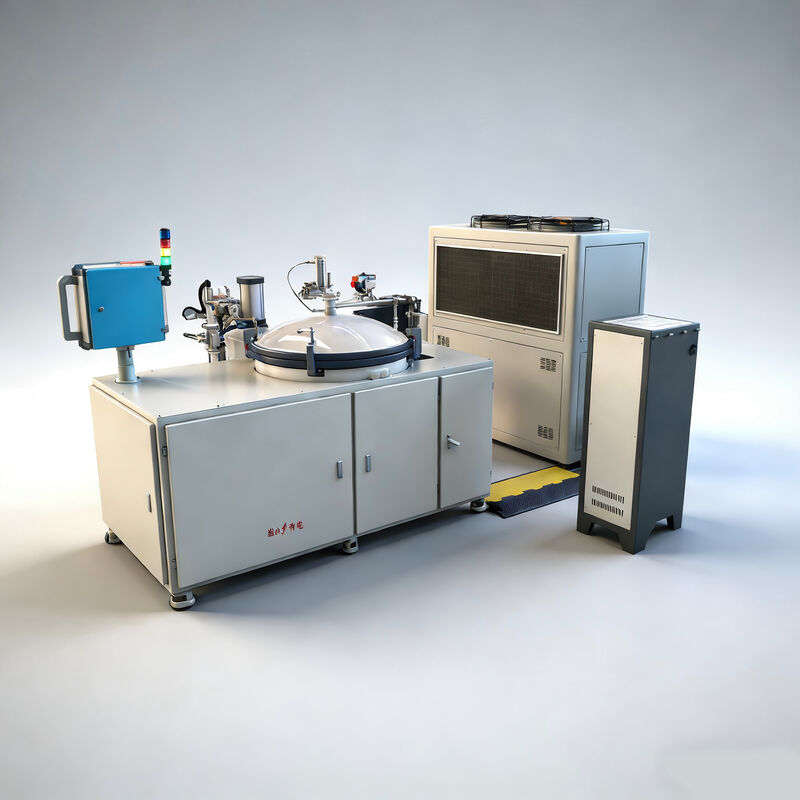

• This novel 3200°C batch-style induction vacuum lab furnace is a high-accuracy equipment tailoredspecifically for material processing on a laboratory scale.
• It integrates state-of-the-art intermediate frequency induction heating and vacuum/protectiveatmosphere systems, supporting ultra-high-temperature operations (up to3200C) to meet the strict sintering and heat treatment demands of diverse advanced materials.

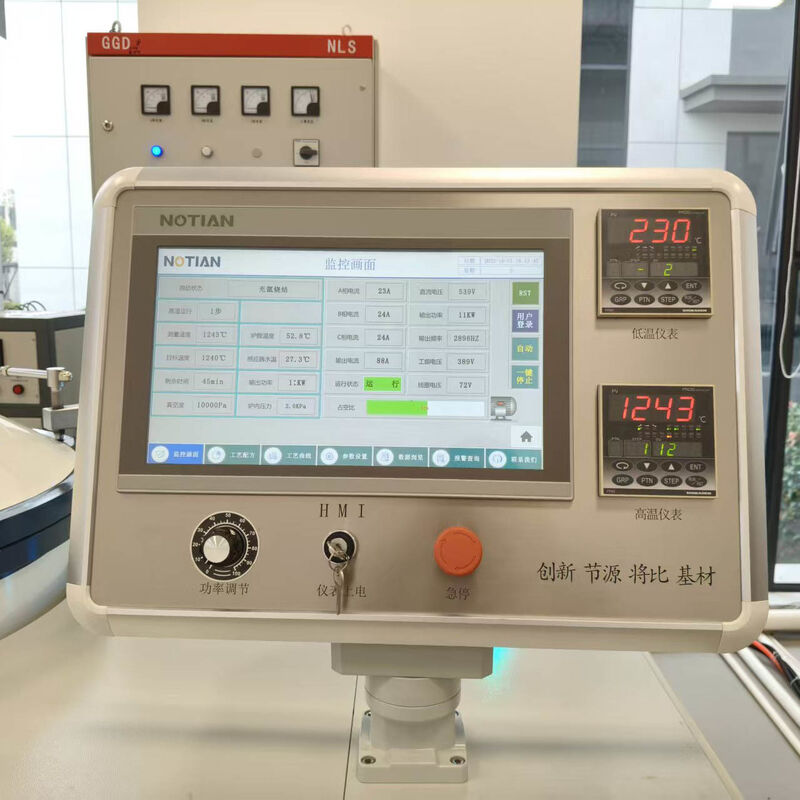

• Available in three different models, this furnace provides versatile choices for small-batchexperimentation and sample preparation. It adopts IGBT control technology, matched with theJapanese Shimaden FP93 temperature controller, and is equipped with American Raytek infraredtemperature measurement (ranging from 1000C to3200C), which guarantees accurate temperatureadjustment and a uniformity of ±5°C.

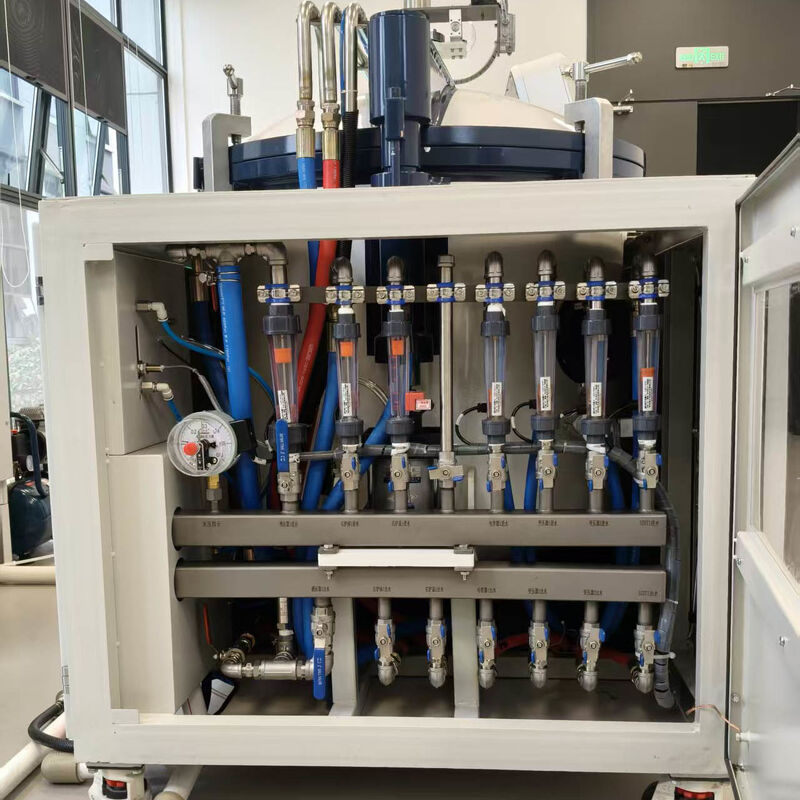

• It operates under vacuum or Argon (micro positive pressure) atmosphere, with a closed inner circulating water cooling system for stable heat dissipation. Optional configurations (e.g., gas purifier) can be customized to match specific material processing requirements, making it ideal for R&D and small-scale production in material science fields.



Application:

• Carbon & Graphite Materials: Processing of graphite powder, graphene, anthracite, carbon nanotubes, carbon fiber, and graphite powder.
• Ceramic & Hard Alloys: Sintering of silicon carbide, tungsten carbide, boron carbide, and other high-performance ceramic components.
• Special Functional Materials: Heat treatment of lithium battery materials, rare earth oxides, radiation-proof materials, rhenium materials, metal billets, and powder metallurgy products (e.g., metal/composite metal powders).
• Other Materials: Processing of boric anhydride, magnesium fluoride, poly-silicon materials, calcium carbide, and negative electrode materials.



Specification:

Furnace Configuration:

 Feature Advantages:

• Ultra-high 3200℃ temp for various materials
• Fast heating (30min to 3000℃) saves time
• Precise control (±5℃ uniformity) ensures stable results
• Vacuum/Argon protection avoids material oxidation

After-sales Service:

• Warranty: 1-year warranty for core electrical components against manufacturing defects.
• Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
• Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).



.
