Heat Treatment Resistance Heating Furnace For Carbide Sintering Robust Structure
Heat Treatment Resistance Heating Furnace For Carbide Sintering Robust Structure
Heat Treatment Resistance Heating Furnace
robust structure Resistance Heating Furnace
robust structure resistive furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-DZL-54W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
2200℃ Resistance Furnace SIC Boron Carbide Heat Treatment Equipment
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2300 Degree Celsius
Model No.:
NTI-DZL-54W
Working Area:
300x300x600mm
Input Voltage:
380v
Working Atmosphere:
Argon Protection
Application:
Sic Sintering
Highlight:
Heat Treatment Resistance Heating Furnace
,robust structure Resistance Heating Furnace
,robust structure resistive furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$ 60000-100000
Packaging Details
Standard Packing by Sea Shipping
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets / Month
RELATED PRODUCTS
Video
Industrial Vacuum Furnace Polysilicon And Rare Earth Sintering Resistor Furnace
Get Best Price
Video
Industrial Graphite Resistance Furnace Rare Earth Oxide Debinding Processes 380Volt
Get Best Price
CONTACT US
Contact Now
Product Description
Heat Treatment Resistance Furnace for Magnesium Fluoride & Carbide Sintering
Description:

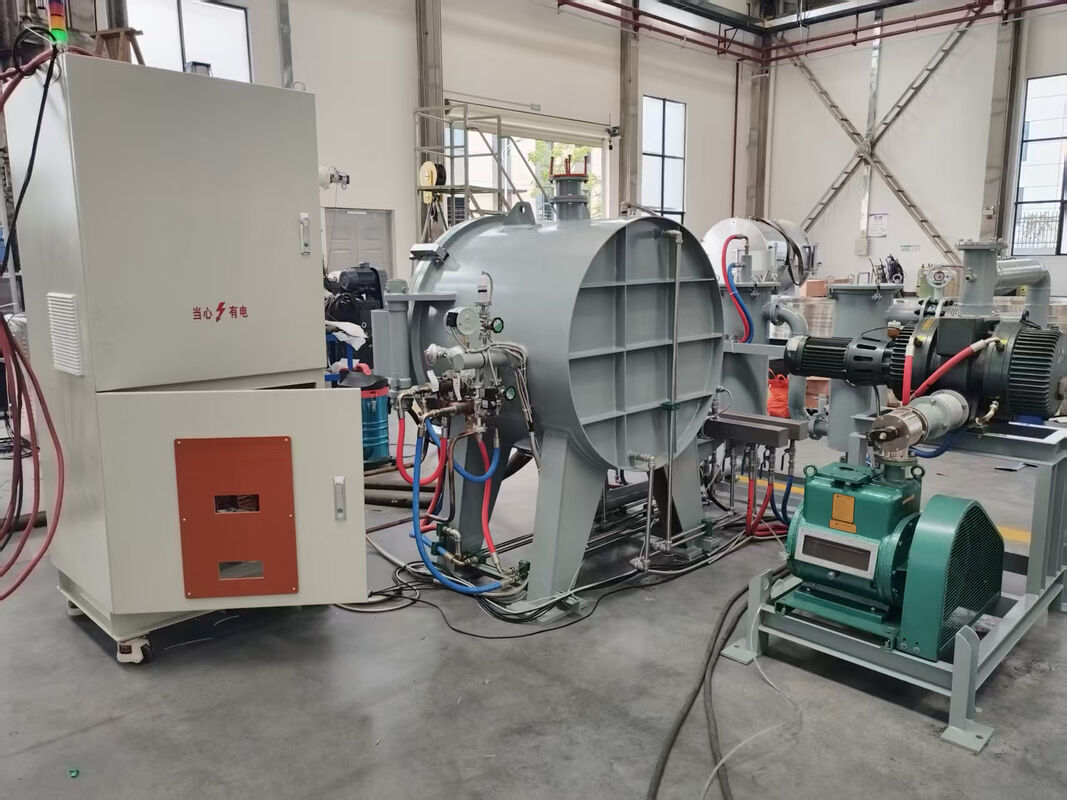

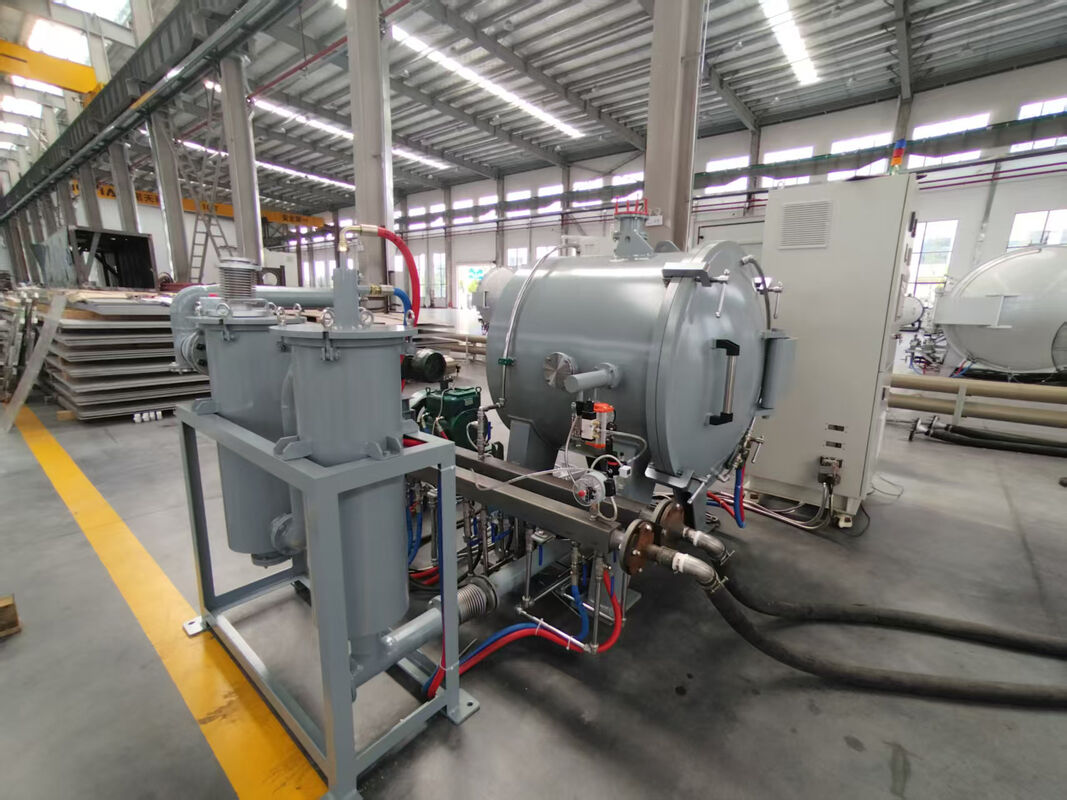

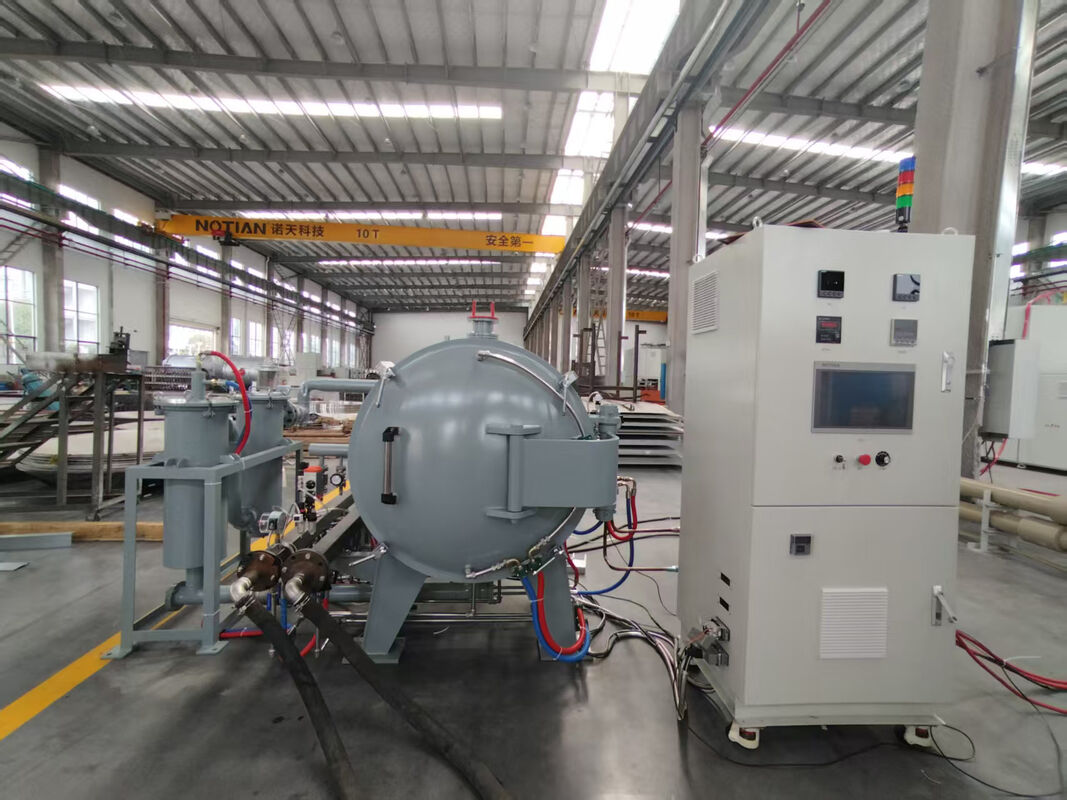

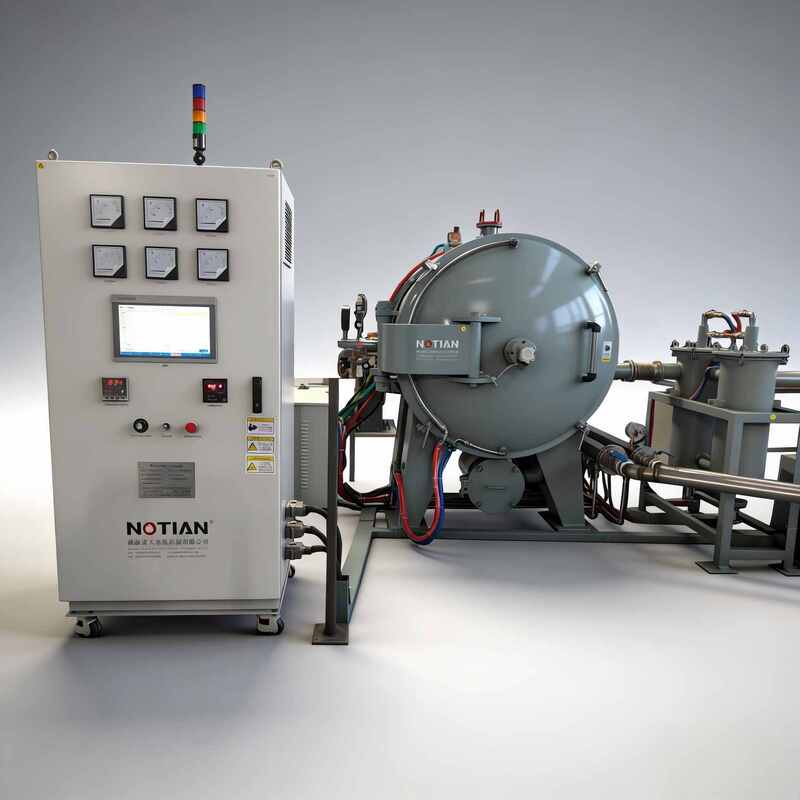

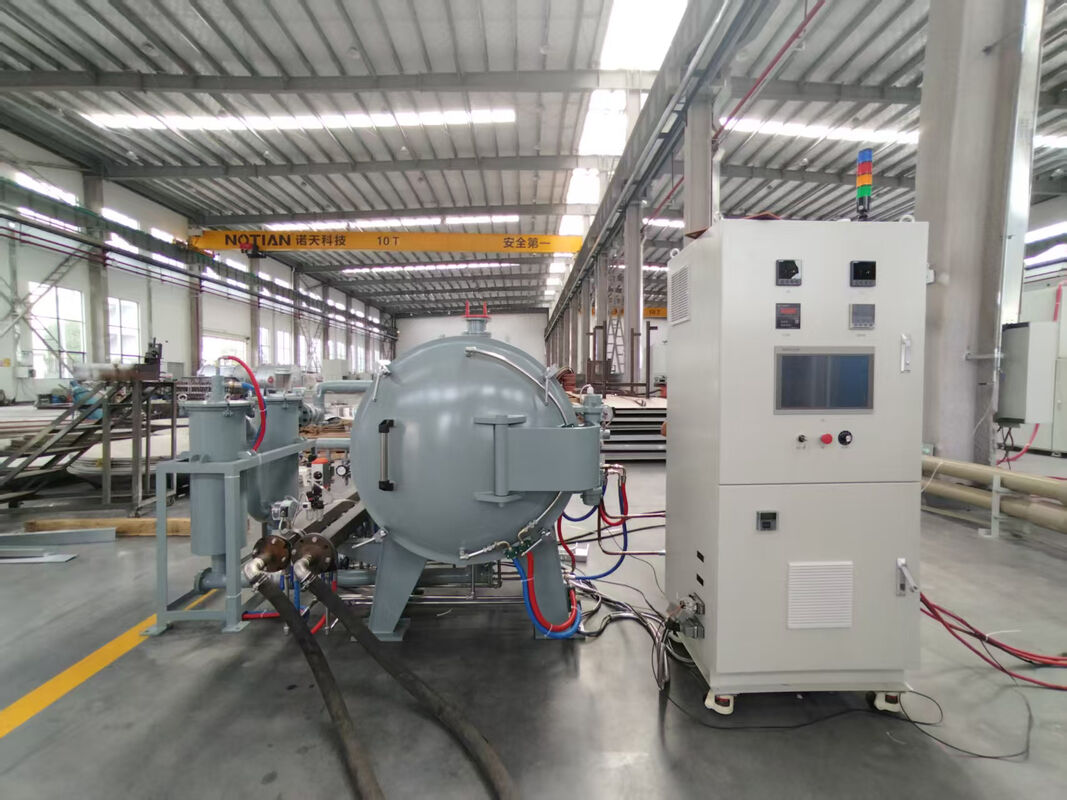

- This 2200℃ batch resistance furnace adopts a 1-to-1 cabinet-furnace configuration (380V 3-phase power, thyristor control), integrating resistance heating with a sealed vacuum chamber (20Pa ultimate) for high-temp uniformity.
- Built for industrial durability, its robust structure + intelligent temp system (precise heating rate adjustment) guarantees uniform workpiece heating for strict sintering demands.
- User-friendly operation + safety safeguards (vacuum leak detection) make it fit for lab R&D and industrial production.
Application:
- Special Inorganic Materials: Sintering of magnesium fluoride and boron nitride.
- Carbides & Alloys: Processing of silicon carbide, tungsten carbide, and hard alloy parts.
- Carbon & Rare Earth: Debinding of PI film, heat treatment of rare earth oxide and graphite.
Specification:
|
Resistance Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-DZL-54W |
NTI-DZL-98W |
NTI-DZL-300w |
NTI-DZL-400W |
NTI-DZL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
100 |
150 |
300 |
400 |
650 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
|
Usual working temperature |
℃ |
2200 |
2200 |
2200 |
2200 |
2200 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2200℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2200℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
