Description:

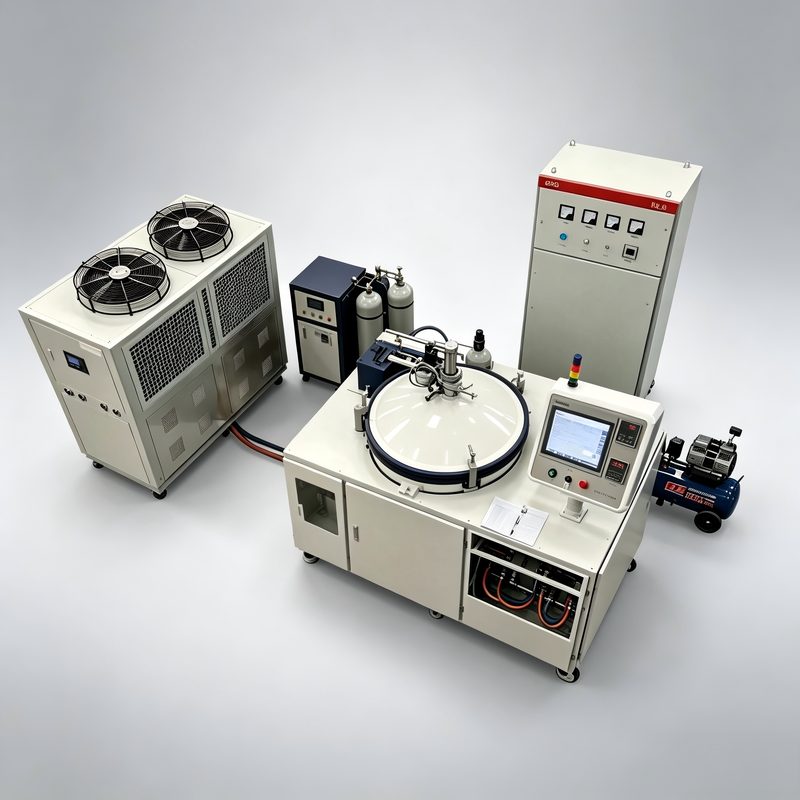

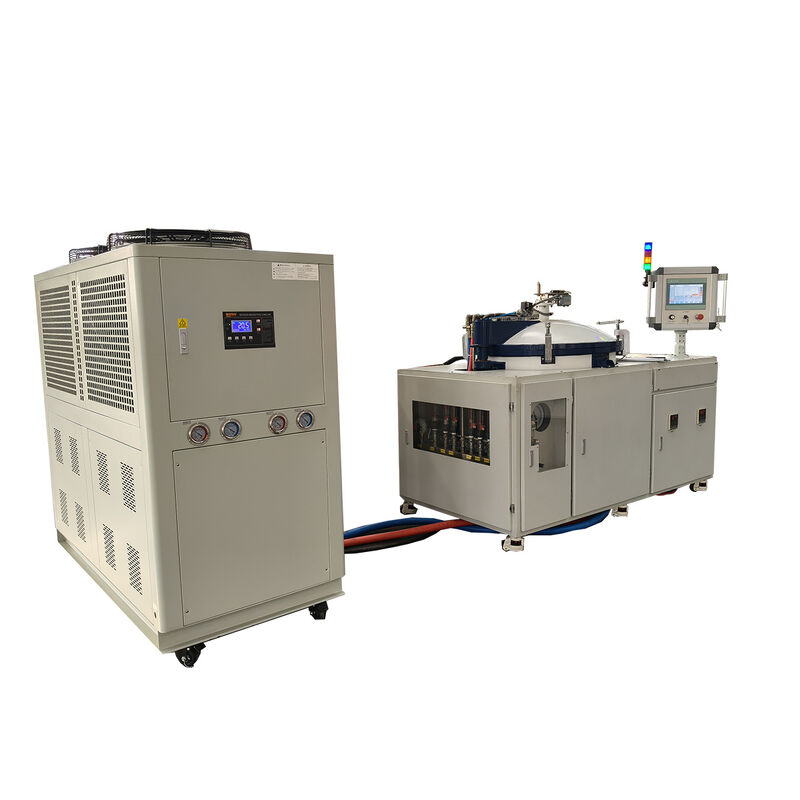

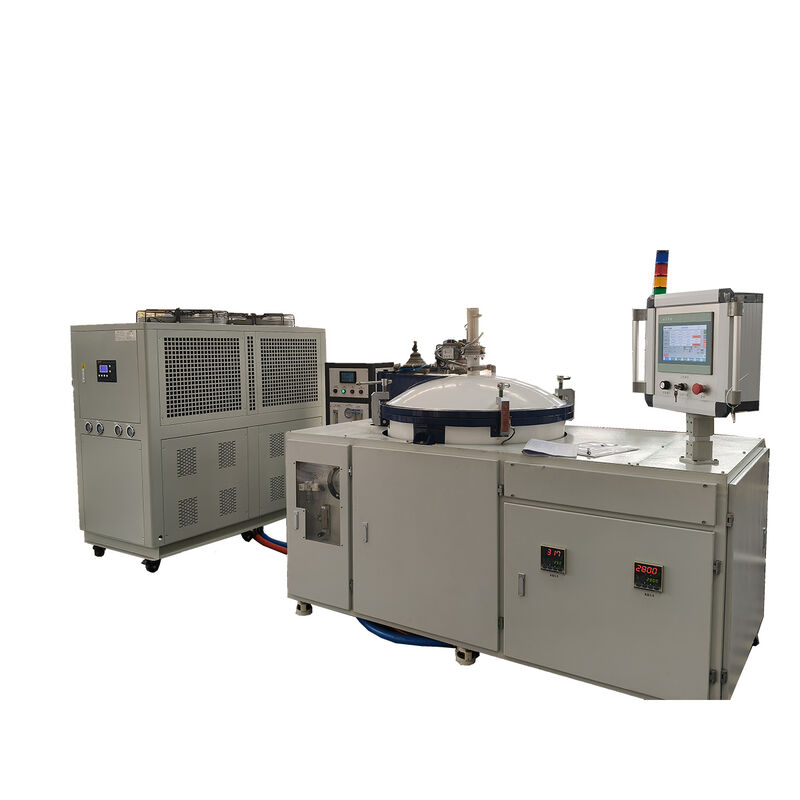

• This compact vacuum induction lab furnace reaches a peak temperature of 3200°C, customized for tiny specimen testing in material research laboratories.
•  Equipped with stable medium-frequency induction heating, matched with high-vacuum and argon shielding systems, it delivers ultra-high temperature treatment for high-performance advanced ceramic and semiconductor materials.
• Three standard models are available for university labs and R&D teams, suitable for sample preparation, lab trials and small-batch processing. IGBT module paired with Shimaden FP93 temperature controller realizes precise, adjustable temperature control.
•  Fitted with Raytek non-contact infrared thermometer for 1000–3200°C temperature measurement, with temperature fluctuation controlled within ±5°C to guarantee repeatable, reliable experimental data.
• Supports dual working modes: high vacuum or low-pressure argon atmosphere. Built-in water circulation cooling system ensures stable long-time operation, and optional accessories such as gas purifiers can be configured to meet special material sintering demands, ideal for new material research and lab-scale trial production.

•

Application:

• Carbon & Graphite Materials: Processing of graphite powder, graphene, anthracite, carbon nanotubes, carbon fiber, and graphite powder.
• Ceramic & Hard Alloys: Sintering of silicon carbide, tungsten carbide, boron carbide, and other high-performance ceramic components.
• Special Functional Materials: Heat treatment of lithium battery materials, rare earth oxides, radiation-proof materials, rhenium materials, metal billets, and powder metallurgy products (e.g., metal/composite metal powders).
• Other Materials: Processing of boric anhydride, magnesium fluoride, poly-silicon materials, calcium carbide, and negative electrode materials.



Specification:

Furnace Configuration:

 Feature Advantages:

• Ultra-high 3200℃ temp for various materials
• Fast heating (30min to 3000℃) saves time
• Precise control (±5℃ uniformity) ensures stable results
• Vacuum/Argon protection avoids material oxidation

After-sales Service:

• Warranty: 1-year warranty for core electrical components against manufacturing defects.
• Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
• Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).



.
