Nitrogen Protection Carbonization Furnace For SiC And Graphite Processing
Nitrogen Protection Carbonization Furnace For SiC And Graphite Processing
Nitrogen protection Carbonization Furnace
Graphite Processing Carbonization Furnace
Graphite Processing carbonisation furnace
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-THL-400W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
1600℃ SIC Powder Graphite Purification Carbonization Resistance Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
1600 Degree Celsius
Model No.:
NTI-THL-400W
Power:
135KW
Working Area:
500x500x1600mm
Input Voltage:
380v
Working Atmosphere:
Nitrogen Protection
Application:
Graphite Powder Sintering
Highlight:
Nitrogen protection Carbonization Furnace
,Graphite Processing Carbonization Furnace
,Graphite Processing carbonisation furnace
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

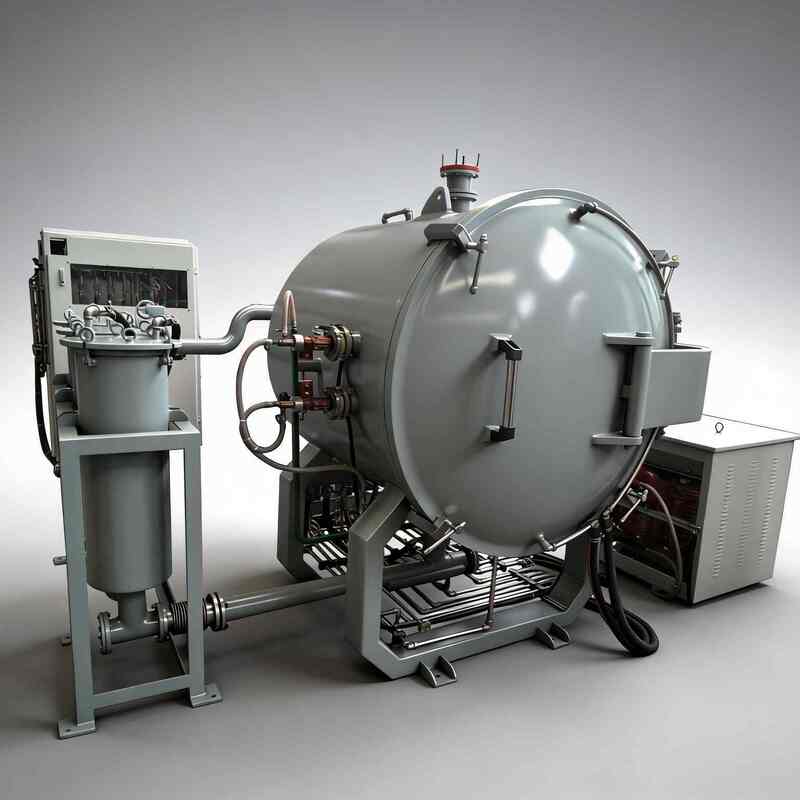

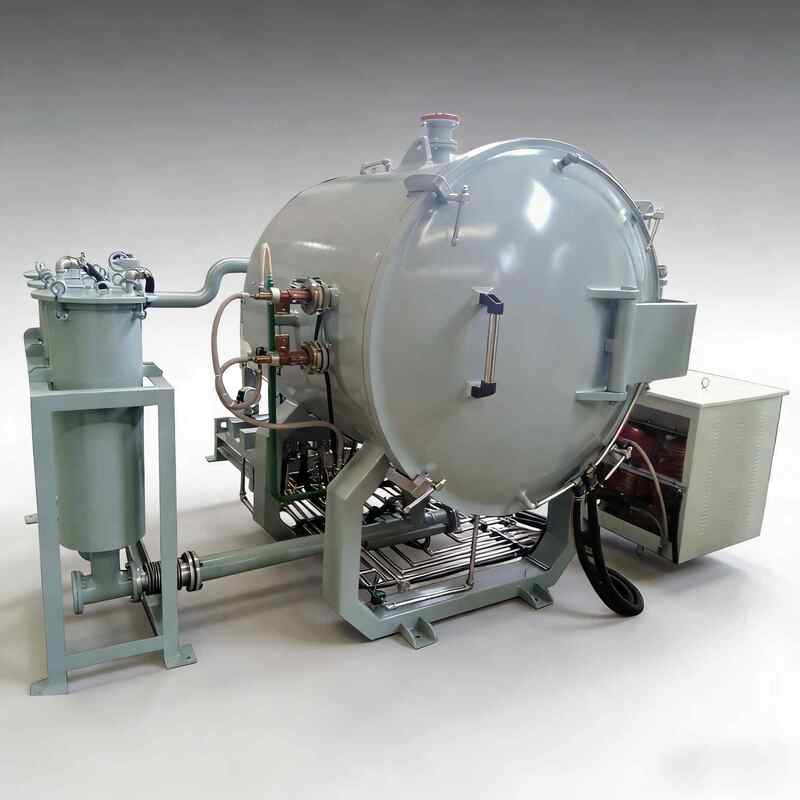

1600℃ Vacuum Carbonization Furnace Resistance Heating for SiC & Graphite Processing
Description:
- This 1600℃ batch resistance vacuum carbonization furnace delivers excellent temp consistency via electric resistance heating + airtight vacuum chamber, securing optimal material processing.
- With a sturdy framework & intelligent temp control (regulate heating speeds/holding periods), it ensures uniform workpiece heating. It handles SiC powder, graphite, radiation-proof materials, etc.—fits large/small-batch production.
- User-friendly panel + safety safeguards (over-temp warning, leak monitor) work for lab R&D & industry.
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Carbonization Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-THL-54W |
NTI-THL-98W |
NTI-THL-300w |
NTI-THL-400W |
NTI-THL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
50 |
100 |
120 |
135 |
185 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Usual working temperature |
℃ |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||

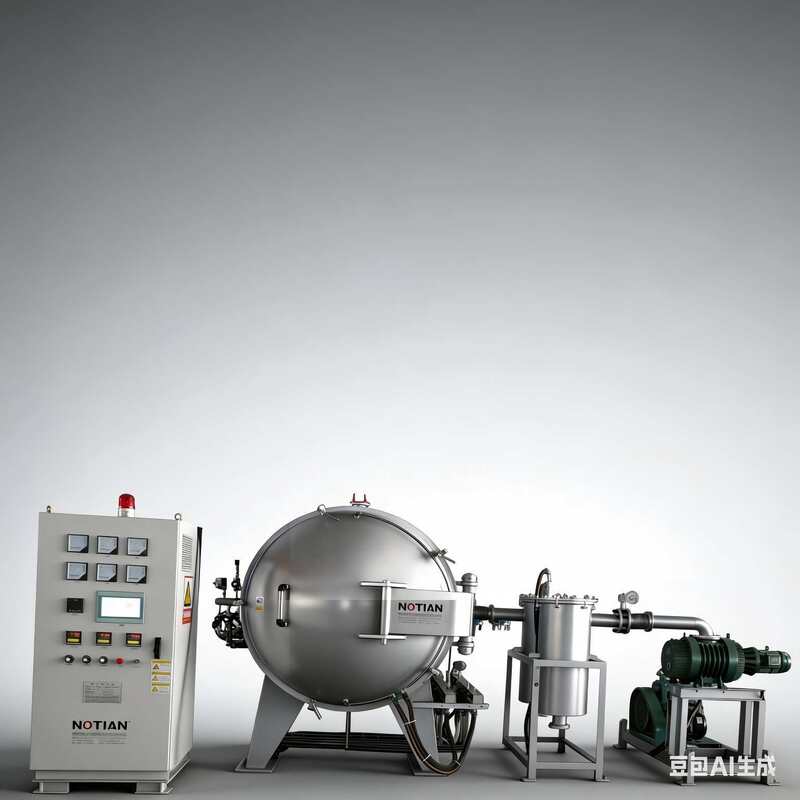

Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 1600℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 1600℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
