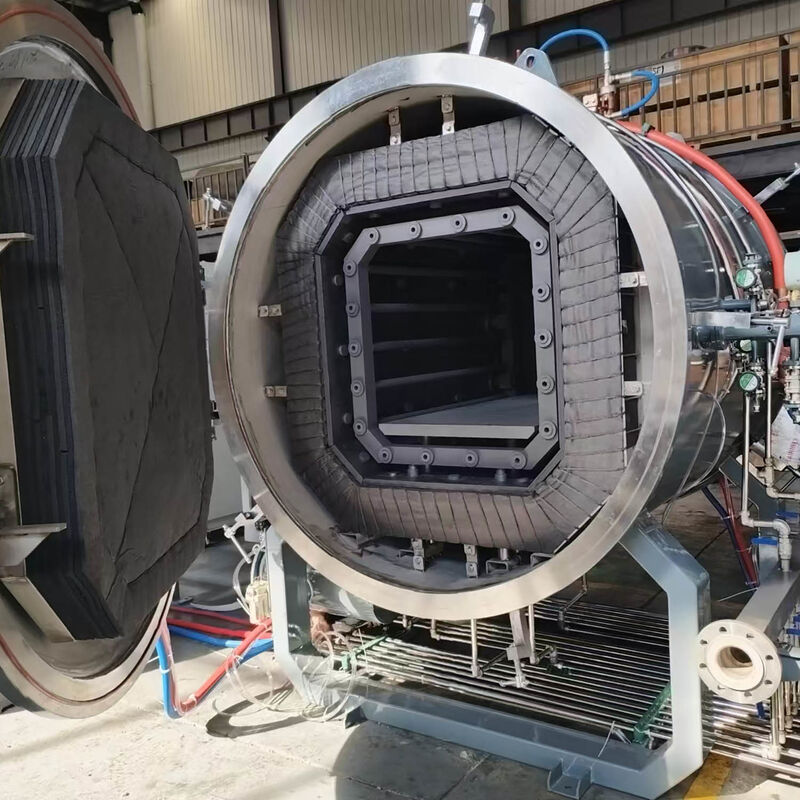

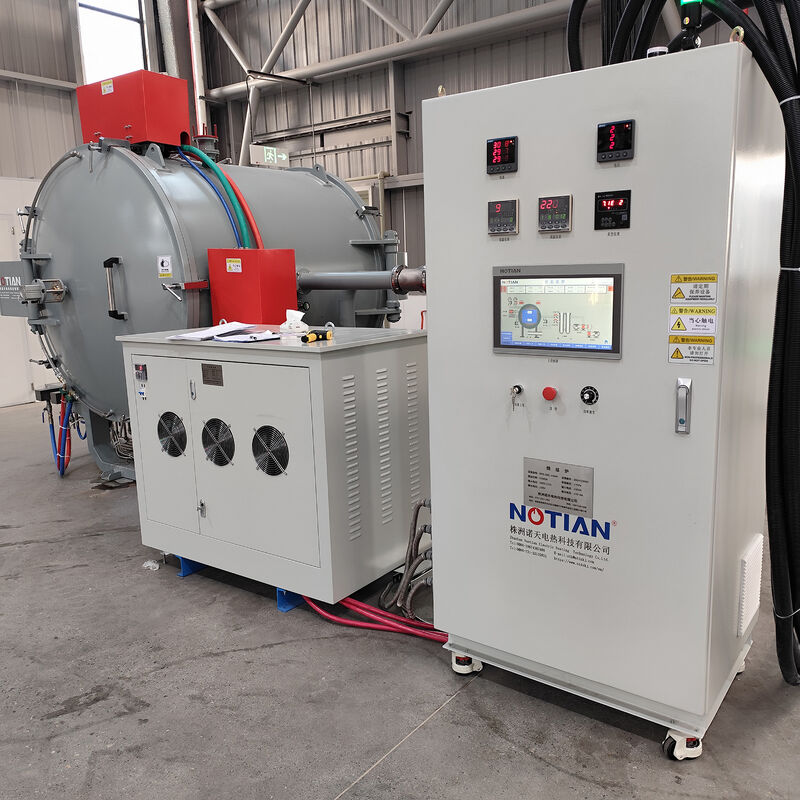

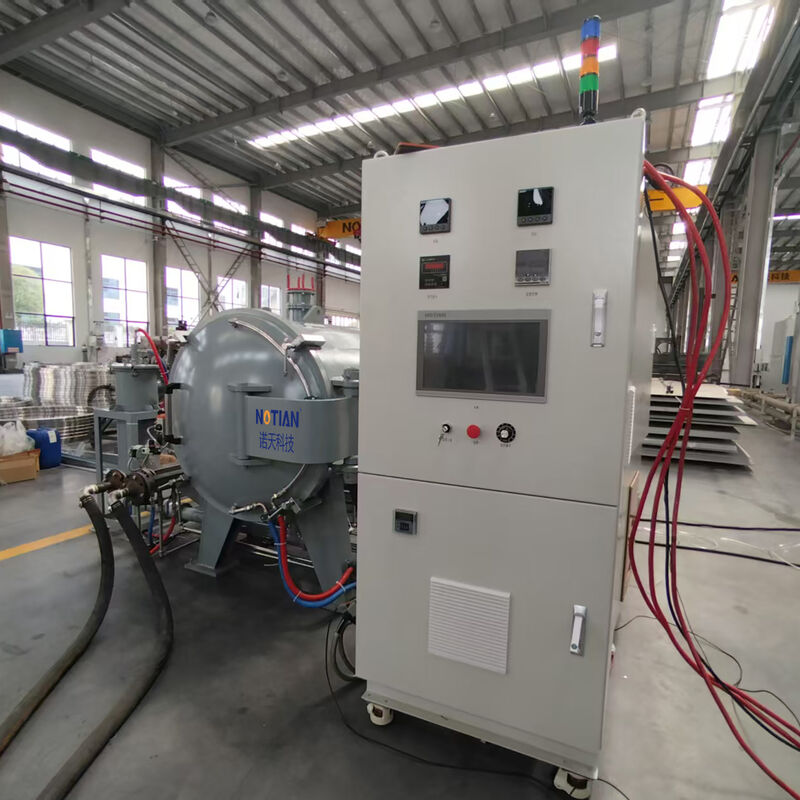

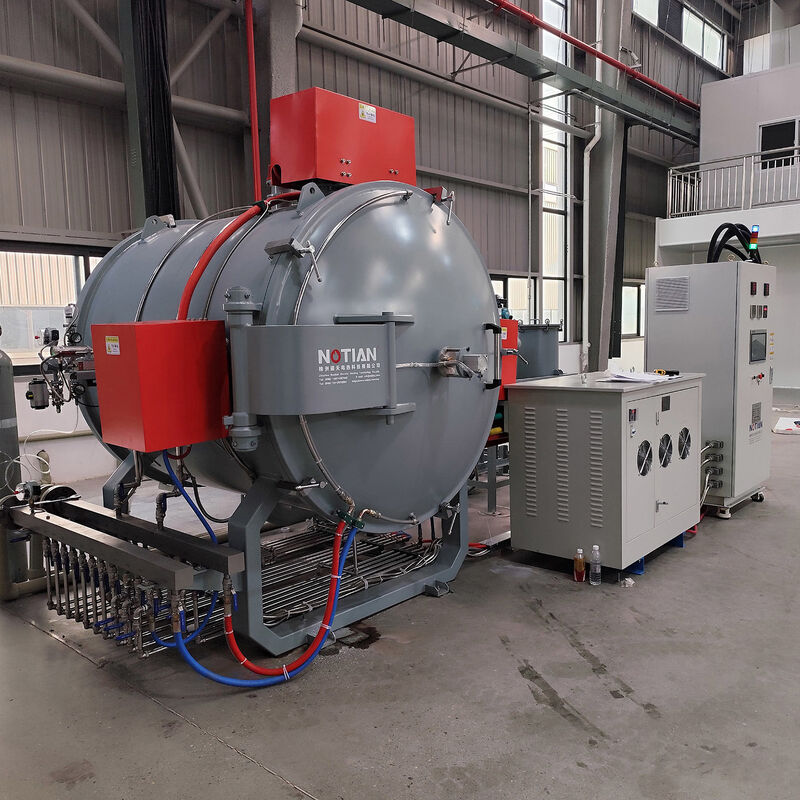

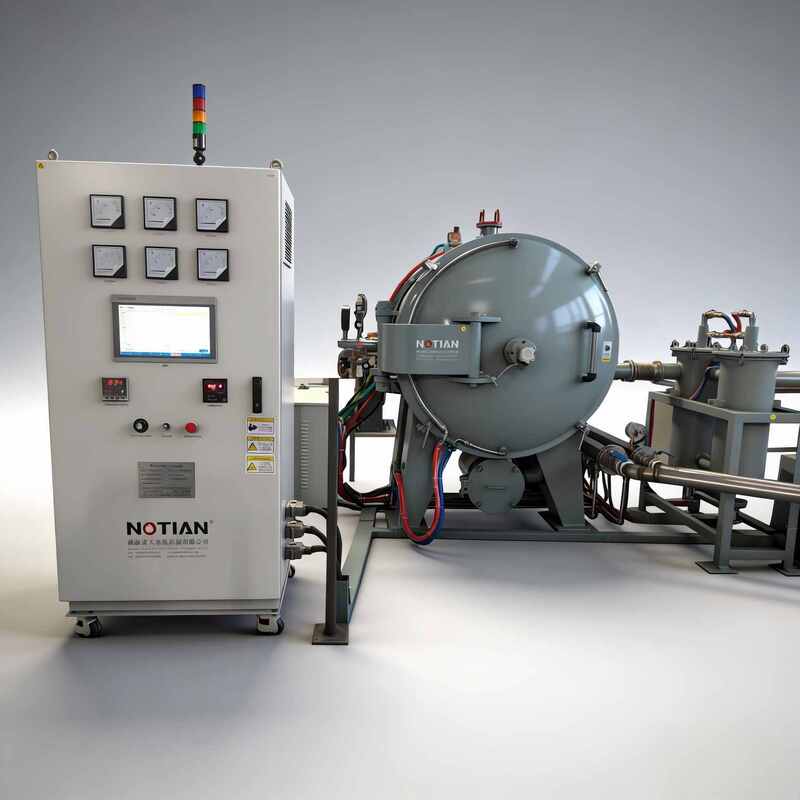

1600C Vacuum Batch Resistance Heating Carbonization Furnace Providing Batch Processing with Superior Temperature Uniformity

Description:

• The 1600C vacuum carbonization furnace is a purpose-designed batch resistance heating equipment,exhibiting outstanding temperature homogeneity to attain ideal material processing outcomes.Customized exclusively for precise and high-efficiency treatment procedures, it integrates advancedelectric resistance heating technology with a hermetic vacuum chamber, guaranteeing that stable andconsistent high-temperature conditions are maintained at each stage of the processing cycle.
• Engineered to fulfill industrial durability requirements, the furnace features a solid framework and anintelligent temperature control system--enabling precise regulation of heating velocities, holding times, and cooling workflows. This efficiently ensures that workpieces are heated uniformly.
• Offered in various specifications, it is adaptable to both large-volume production operations and small-batch processing tasks, enabling the processing of diverse components (including boron carbideplates, ceramic parts, and alloy components). Its intuitive operation panel and safety protectionsystems (such as over-temperature alert and vacuum leakage inspection, etc.) render it suitable for both laboratory R&D and industrial manufacturing environments.



Application:

• Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
• Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
• Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
• Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.







Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 1600℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
