High Temperature Induction Furnace 2800℃ For Graphitization Of Pet Coke
High Temperature Induction Furnace 2800℃ For Graphitization Of Pet Coke
High Temperature Induction Furnace 2800℃
Pet Coke Graphitization Furnaces
Graphitizing furnace for Pet Coke
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-SML-128W
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Supply Control Type:
IGBT Control
Usage:
Heat Treatment
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V 3 Phase
Dimension(l*w*h):
Customization
Weight (t):
1.5
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Model No.:
NTI-SML-128W
Maximum Temperature:
2800℃
Power:
250KW
Usage:
Graphitization Purification
Working Area:
400x400x800mm
Working Environment:
Vacuum Or Argon Atmosphere Protection( Micro Positive Pressure)
Furnace Type:
Horizontal
Highlight:
High Temperature Induction Furnace 2800℃
,Pet Coke Graphitization Furnaces
,Graphitizing furnace for Pet Coke
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$60000-100000
Packaging Details
Standard packing by sea
Delivery Time
90 Days
Payment Terms
,T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
Video
High-Temp Vacuum Furnace 2800℃ for Graphitization of Carbon Material & Pet Coke
Get Best Price
CONTACT US
Contact Now
Product Description

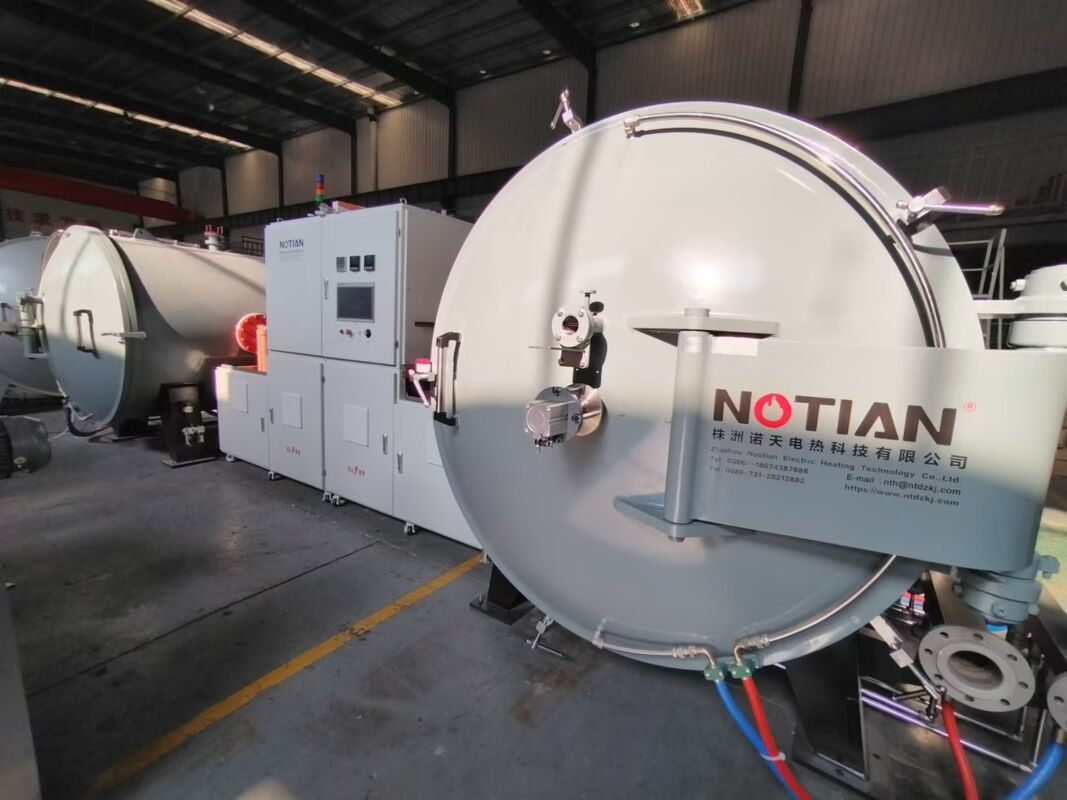

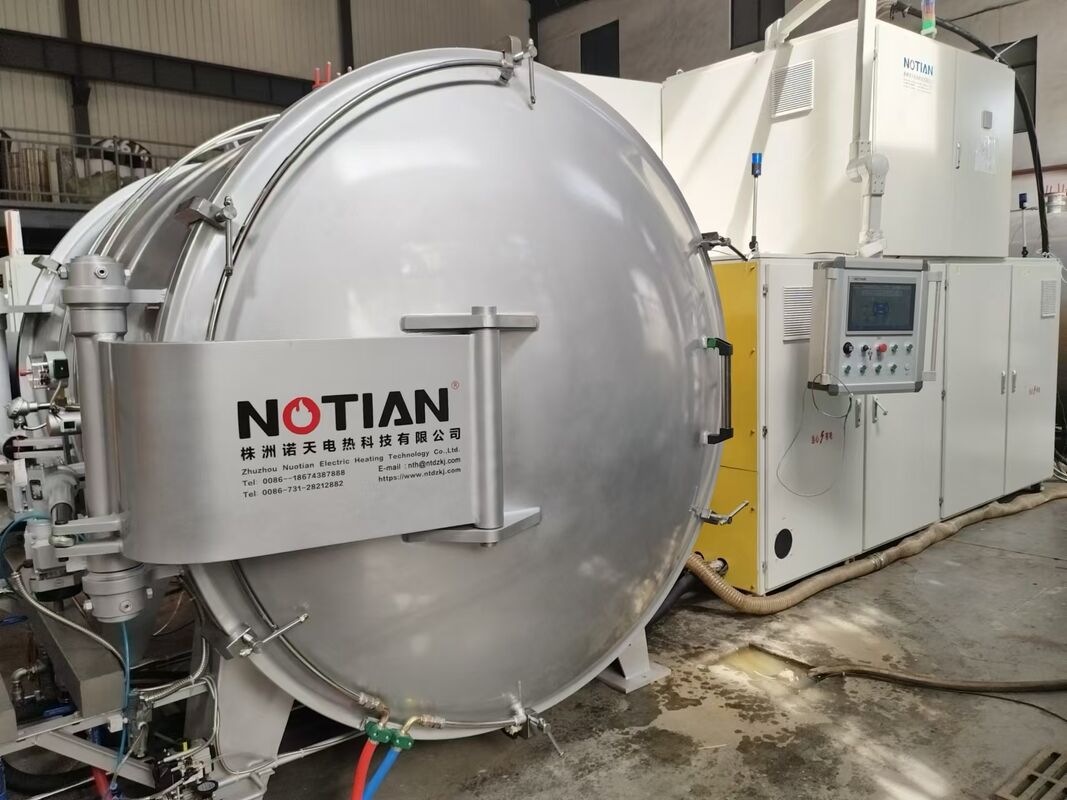

High-Temp Induction Furnace 2800℃ for Graphitization of Pet Coke
Description:
-
IGBT Power Efficiency: This 2800℃ vacuum induction graphitization furnace adopts IGBT power control, which improves the energy utilization rate and reduces energy consumption. It is a green and efficient industrial equipment.
-
Induction Heating Uniformity: The vacuum induction heating method ensures that the material is heated uniformly from the inside out, avoiding local overheating or underheating, and improving the consistency of the graphitized products.
-
Atmosphere Options: Supports vacuum, argon and nitrogen protective atmosphere (micro positive pressure) operation. It can meet the different atmosphere requirements of various materials during graphitization, such as carbon fiber, rhenium materials and rare earths.
-
Material Processing Scope: It can process graphite powder, pet coke, green coke, carbon nano materials, negative electrode materials, radiation-proof materials, contacting terminal materials and other materials. It has a wide range of applications in the field of graphitization.
Application:
This 2800℃ Vacuum Induction Graphitization Furnace is widely applicable in multiple high-temperature material processing scenarios:
- Carbon fiber processing: Carbonization and graphitization treatment of carbon fiber precursors to enhance their thermal stability and mechanical strength.
- Battery material production: High-temperature treatment of battery negative materials (e.g., graphite negative electrodes) to optimize their electrochemical performance.
- Advanced material manufacturing: Graphitization of graphite powder and graphene.
- Protective atmosphere processing: Finishing graphitization of products under Argon protective atmosphere to meet the requirements of carbon material internal molecular structure modification and performance.
Specification:
|
Graphitization Furnace -- Technology Parameter |
||||||
|
Lab usage |
Production usage |
|||||
|
NTI-SML-54W |
NTI-SML-98W |
NTI-SML-128W |
NTI-SML-400W |
NTI-SML-576W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
400×400×800 |
500×500×1600 |
600×600×1600 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
SCR control or IGBT control(optional) |
||||
|
HT zone capacity |
L |
54 |
98 |
128 |
400 |
576 |
|
Loading weight |
g |
HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
150 |
200 |
250 |
350 |
500 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max. temperature |
℃ |
3000 |
3000 |
3000 |
2900 |
2900 |
|
working temperature |
℃ |
2800 |
2800 |
2800 |
2800 |
2800 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±15 |
|
Working environment |
/ |
Vacuum or Ar. Nitrogen atmosphere protection(micro positive pressure) |
||||
Feature Advantages:
- Extreme High-Temperature Capability: Reaches up to 2800℃, ideal for processing carbon fiber, graphite, etc.
- Precision Temperature Control: ±1℃ control accuracy and ≤±10℃ furnace uniformity.
- Flexible Operation: Switch between automatic process control and manual mode to fit different production processes.
- Clean Processing Environment: High vacuum and protective atmosphere support.
- Scalable Models: 5 options (from 54L to 576L) → suits lab tests and large-scale industrial production.
Furnace Configuration:

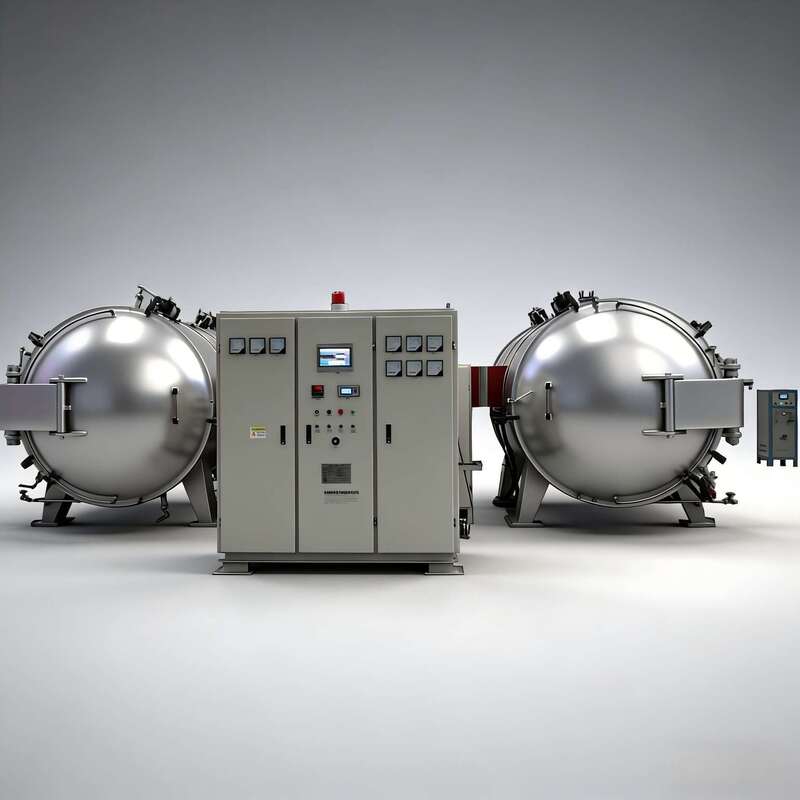

- Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2400℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
