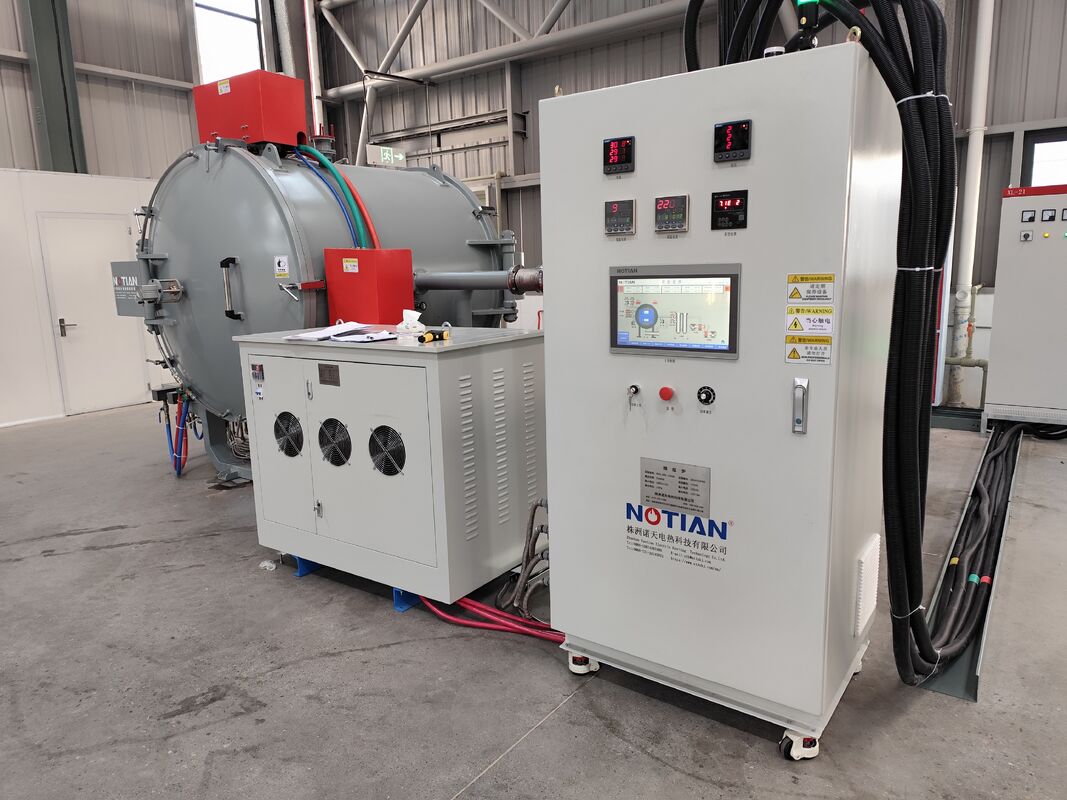

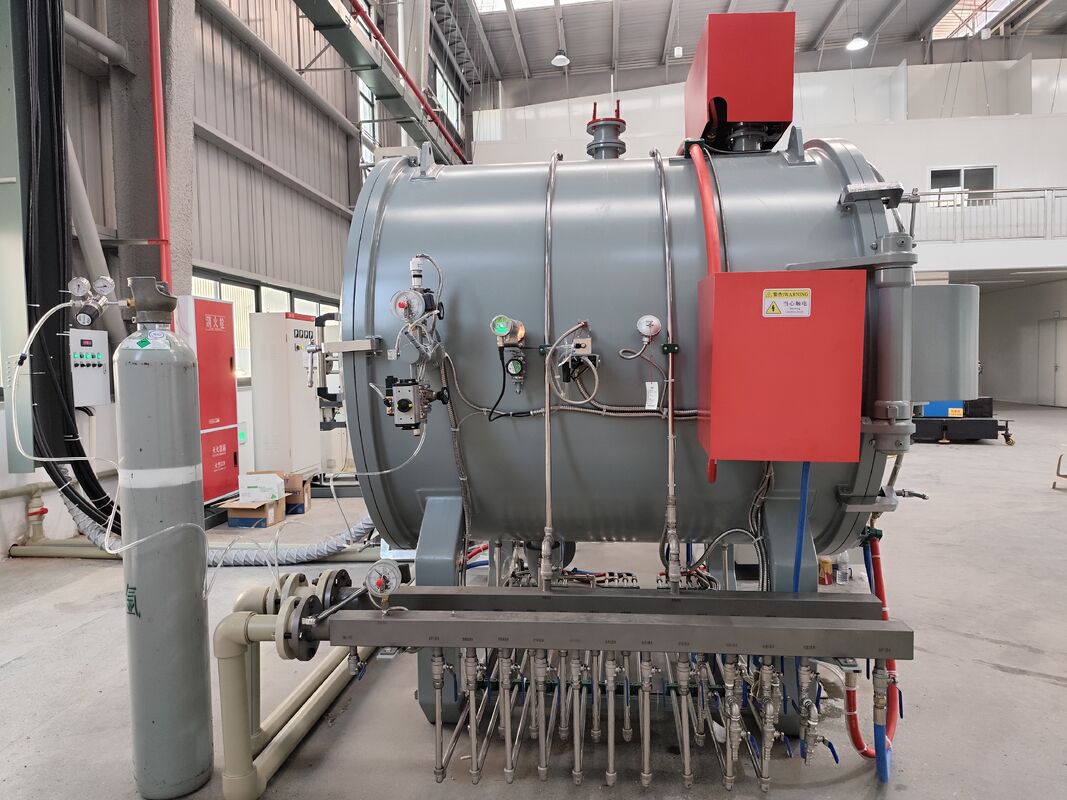

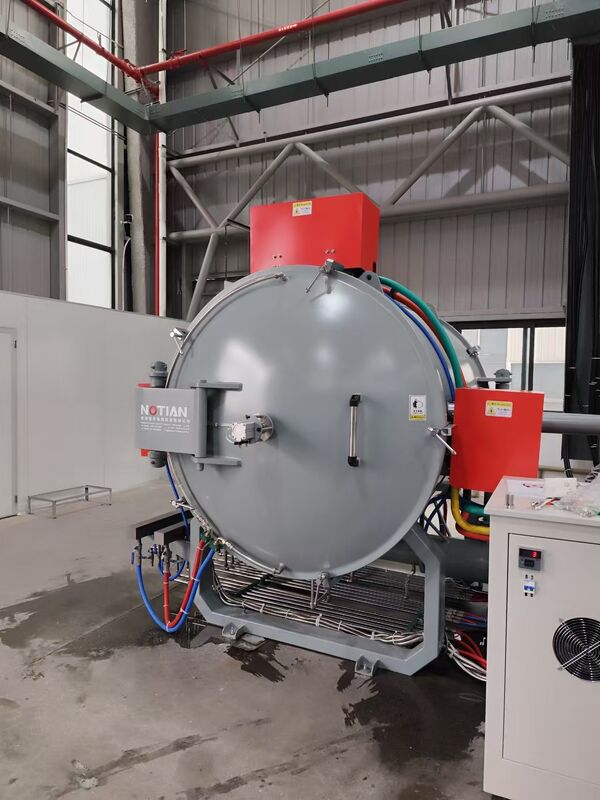

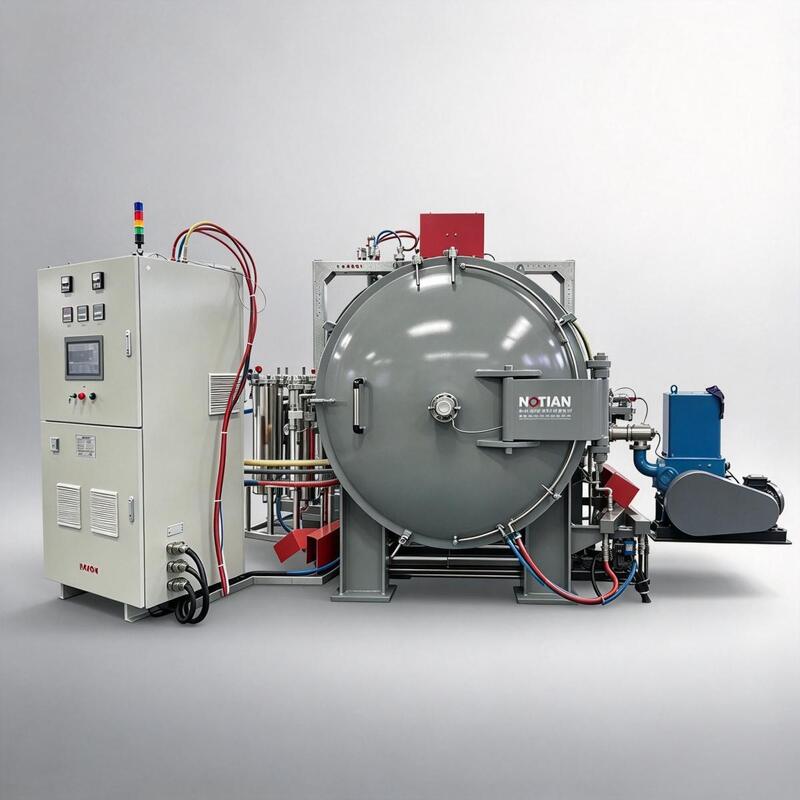

High Temperature for Soft Carbon Material Carbonization Furnace

Description:

• This 1600°C vacuum carbonization furnace is a batch-type resistance heating unit custom-built for soft carbon precursor pyrolysis. It delivers excellent temperature uniformity to guarantee consistent material carbonization results. Equipped with mature resistance heating technology and sealed vacuum chamber, the equipment can sustain stable high-temperature working conditions throughout the whole thermal treatment cycle for accurate and efficient material processing.
• Built for long-term industrial service life, this furnace adopts robust mechanical structure together with smart temperature controller. Users can accurately set heating ramp rate, soaking duration and cooling curve, so every batch of samples achieves even thermal distribution.
• Multiple sizes and chamber configurations are available to match small-scale lab research and mass production. It can process soft carbon precursors for lithium battery anode and other related carbon materials. Human-machine interface is easy to operate. Complete safety mechanisms including overtemperature alarm and vacuum leak monitoring protect the system, applicable for laboratory R&D and factory production.

•

Application:

• Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
• Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
• Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
• Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.









Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 1600℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
