Titanium Carbide Carbonisation Furnace High Temp Sintering SCR Control
Titanium Carbide Carbonisation Furnace High Temp Sintering SCR Control
SCR Control Carbonisation Furnace
Carbonisation Furnace High Temp
SCR Control carbonization stove
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-THL-98W
Contact Us
Request A Quote
Product Details
Type:
Resistance Furnace
Power Control:
SCR
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
Titanium Carbide 1600℃ High-temp Sintering Resistance Carbonization Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
1600 Degree Celsius
Model No.:
NTI-THL-98W
Power:
100KW
Working Area:
350x350x800mm
Input Voltage:
380v
Working Atmosphere:
Nitrogen Protection
Application:
Graphite Powder Sintering
Highlight:
SCR Control Carbonisation Furnace
,Carbonisation Furnace High Temp
,SCR Control carbonization stove
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$80000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Titanium Carbide 1600℃ High-temp Sintering Resistance Carbonization Furnace
Description:

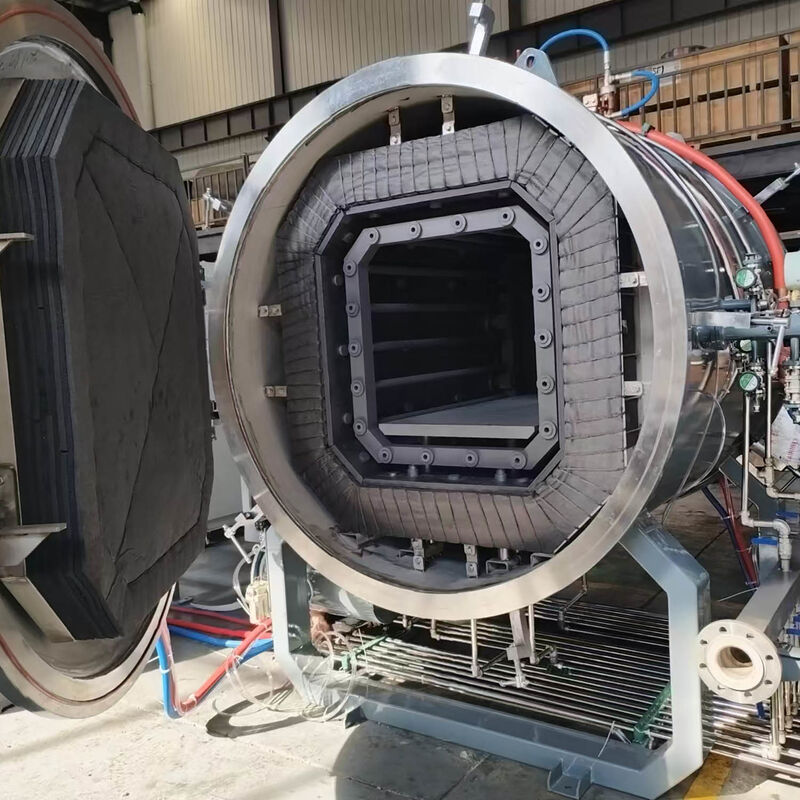

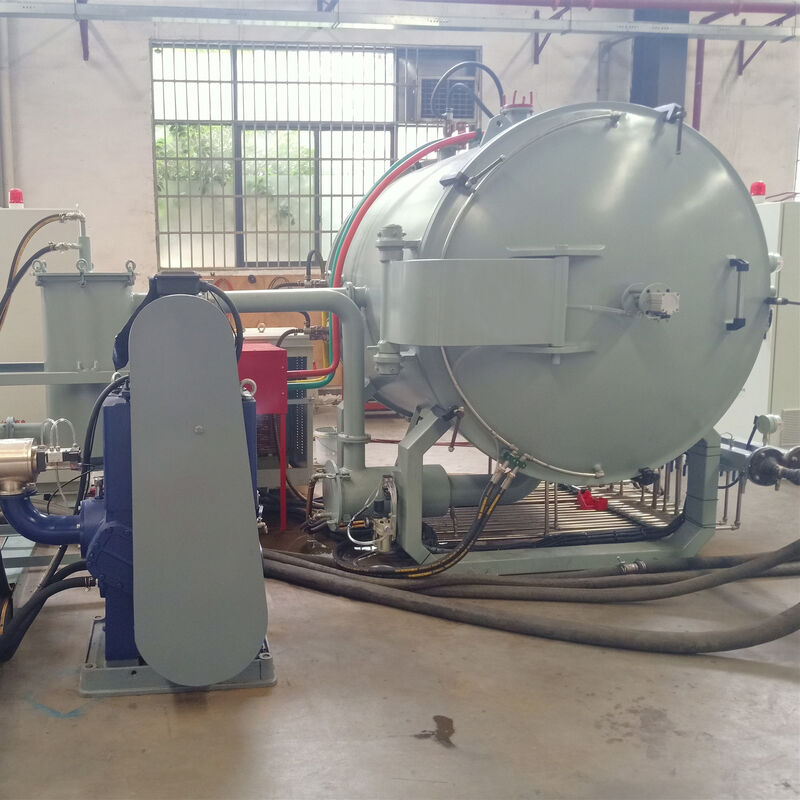

- The 1600C vacuum carbonization furnace is a purpose-designed batch resistance heating equipment, exhibiting excellent temperature uniformity to attain optimal material processing outcomes. Customized exclusively for accurate and high-efficiency treatment procedures, it integrates cutting-edge electric resistance heating technology with an airtight vacuum chamber, guaranteeing the maintenance of stable, consistent high-temperature conditions across every stage of the processing cycle.
- Engineered for industrial-grade durability, the furnace is equipped with a sturdy structureand an intelligent temperature control system-enabling precise adjustment of heating rates, holding durations, and cooling procedures. This effectively guarantees uniform heating of workpieces.
- Multipal size optional,suited for both large-volume production runs and small-batch processing tasks, it supports the processing of various components (including boron carbide plates, ceramic parts, and alloy components). Its user-friendly operation interface and safety protection mechanisms (such as over-temperature alarm and vacuum leakage detection etc.) make it suitable for both laboratory R&D and industrial manufacturing scenarios.
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Carbonization Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-THL-54W |
NTI-THL-98W |
NTI-THL-300w |
NTI-THL-400W |
NTI-THL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
50 |
100 |
120 |
135 |
185 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Usual working temperature |
℃ |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:

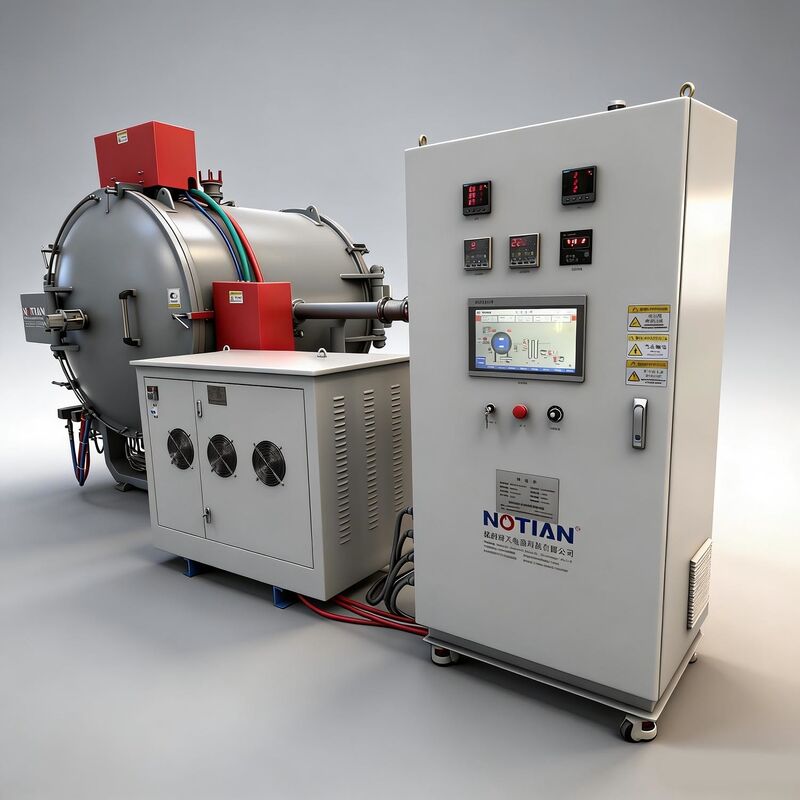

- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

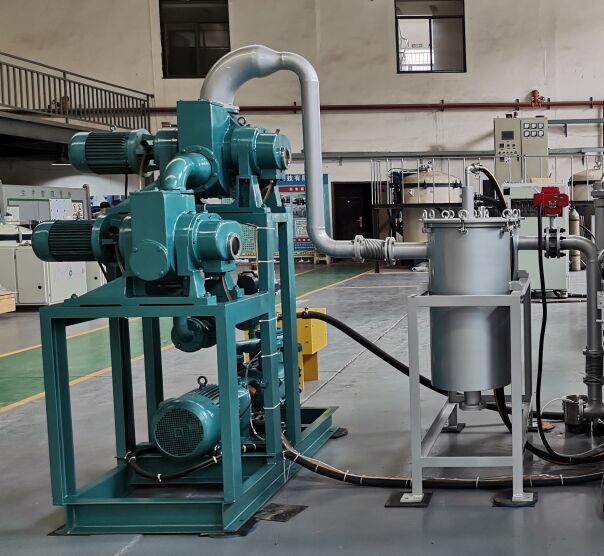

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 1600℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 1600℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
