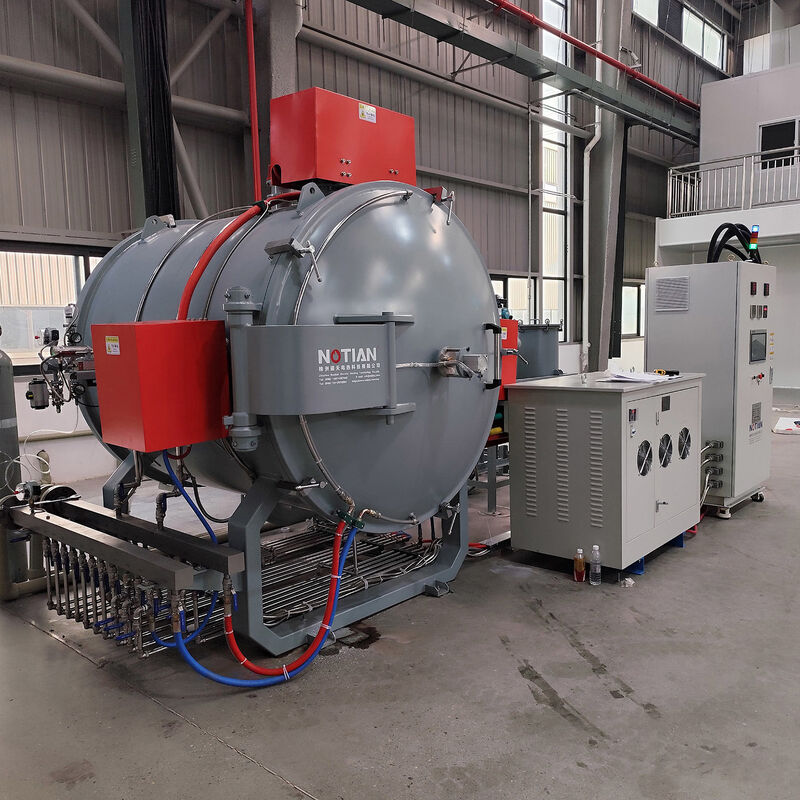

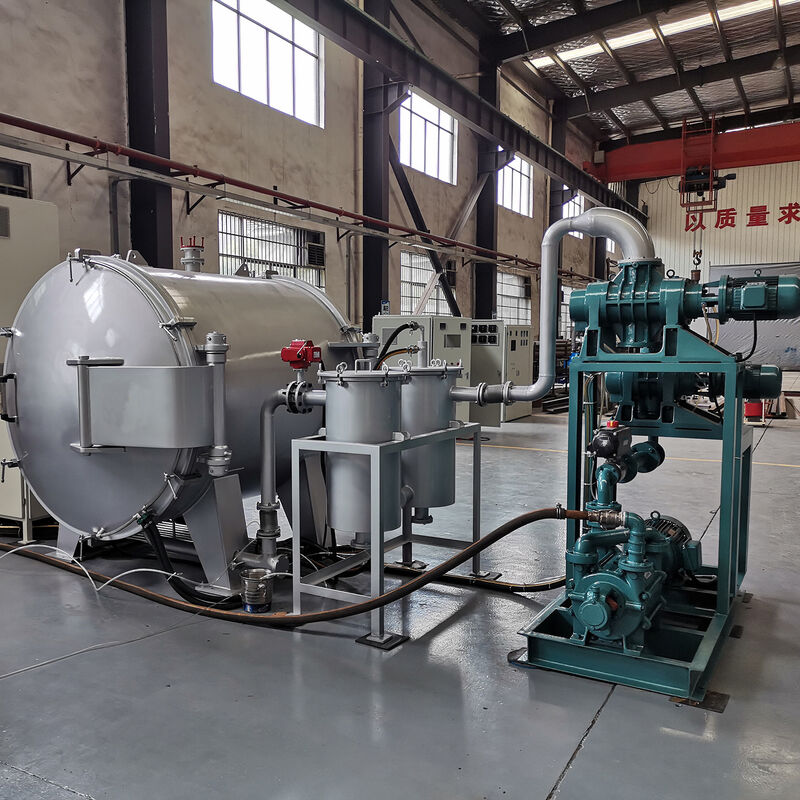

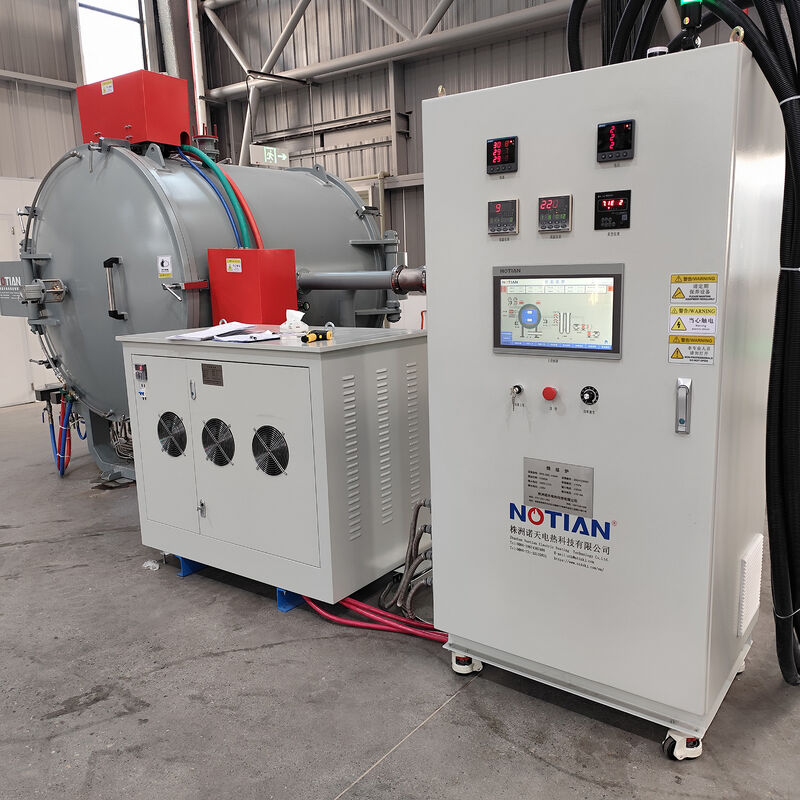

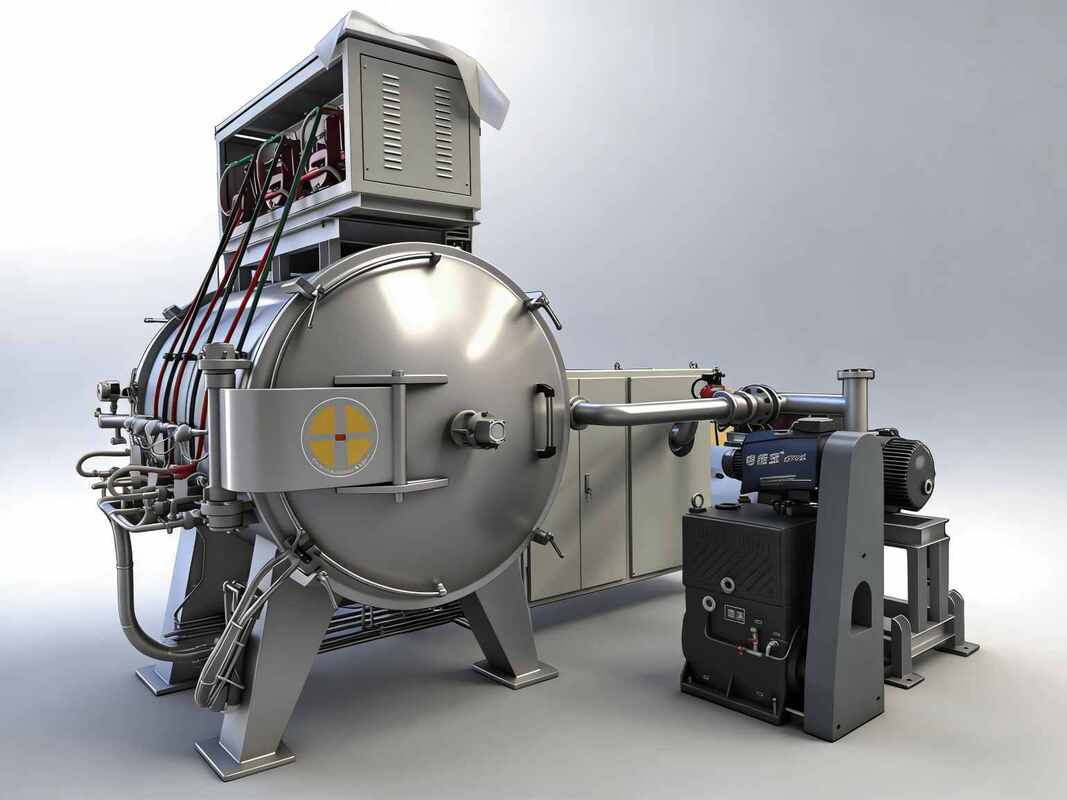

Vacuum Graphite Powder 1600℃ Carbonization High-temp Batch Sintering Furnace

Description:

• This 1600C vacuum carbonization furnace, a batch-type resistance heating system constructed for specific purposes, boasts superior temperature uniformity to achieve ideal material processing results. Designed specifically for precise and high-efficiency treatment workflows, it unites advanced electrical resistance heating technology with a hermetically sealed vacuum chamber,ensuring the sustainment of stable and consistent high-temperature environments in all steps of the processing cycle.
• Designed with industrial-grade resilience, the furnace boasts a sturdy construction and an intelligent temperature regulation system, allowing for accurate control over heating rates, holding durations, and cooling operations. This effectively secures uniform heating for workpieces.
• Multiple sizes available, suitable for both large-scale production runs and small-batchprocessing tasks, it supports the processing of various components (including boron carbide plates,ceramic parts, and alloy components). Its user-friendly operation interface and safety protectionmechanisms (such as over-temperature alarm and vacuum leakage detection, etc.) render it applicableto both laboratory R&D and industrial manufacturing scenarios.



Application:

• Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
• Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
• Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
• Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.







Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 1600℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
