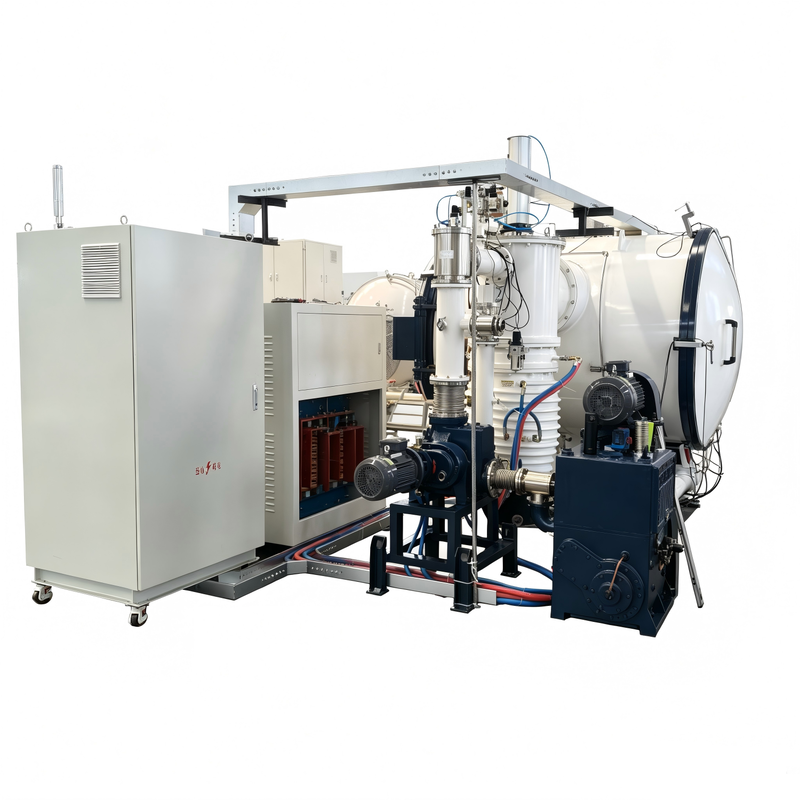

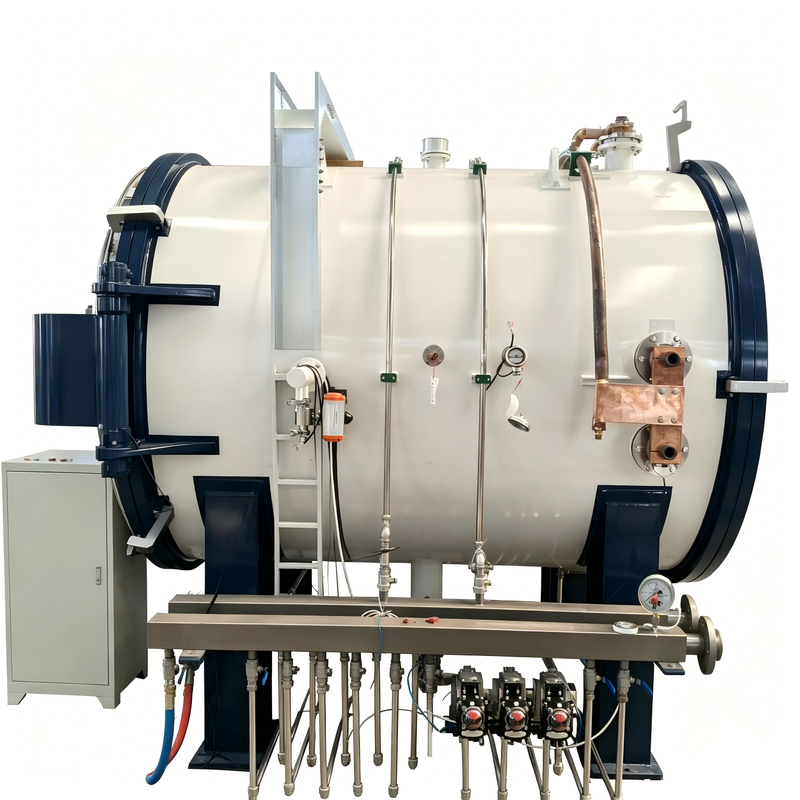

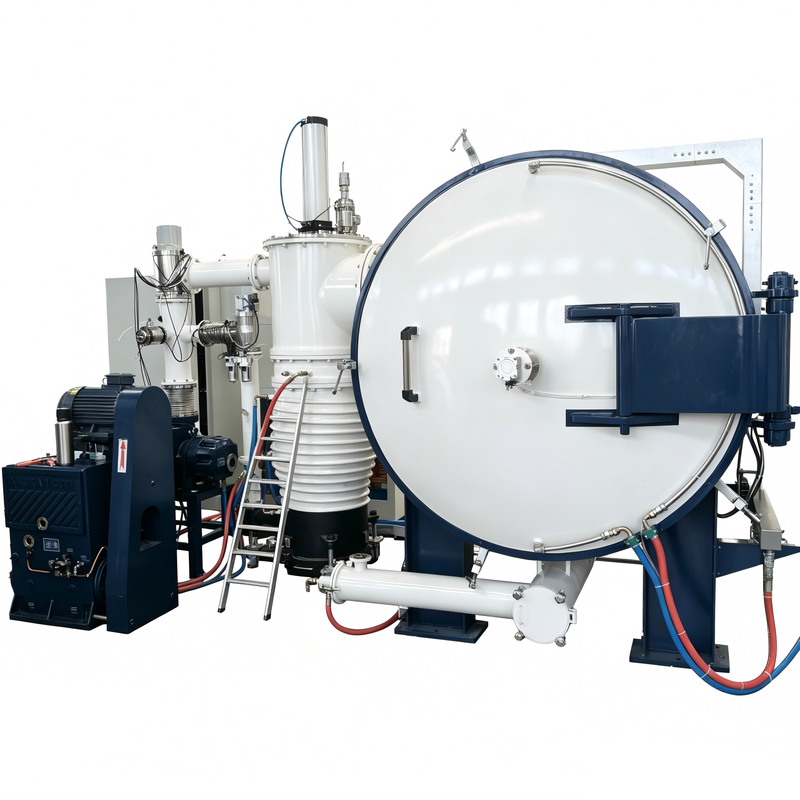

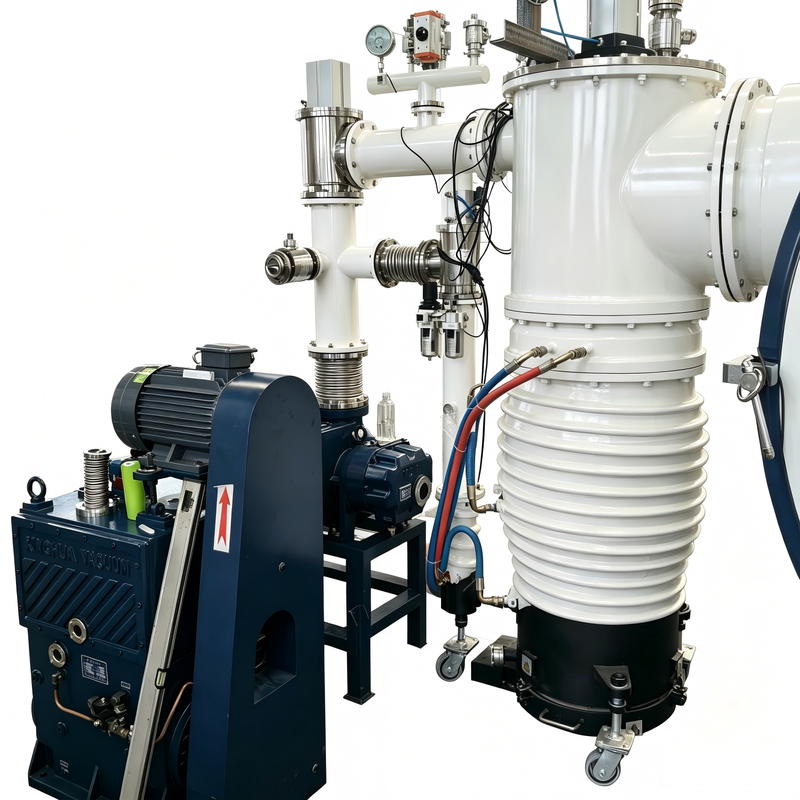

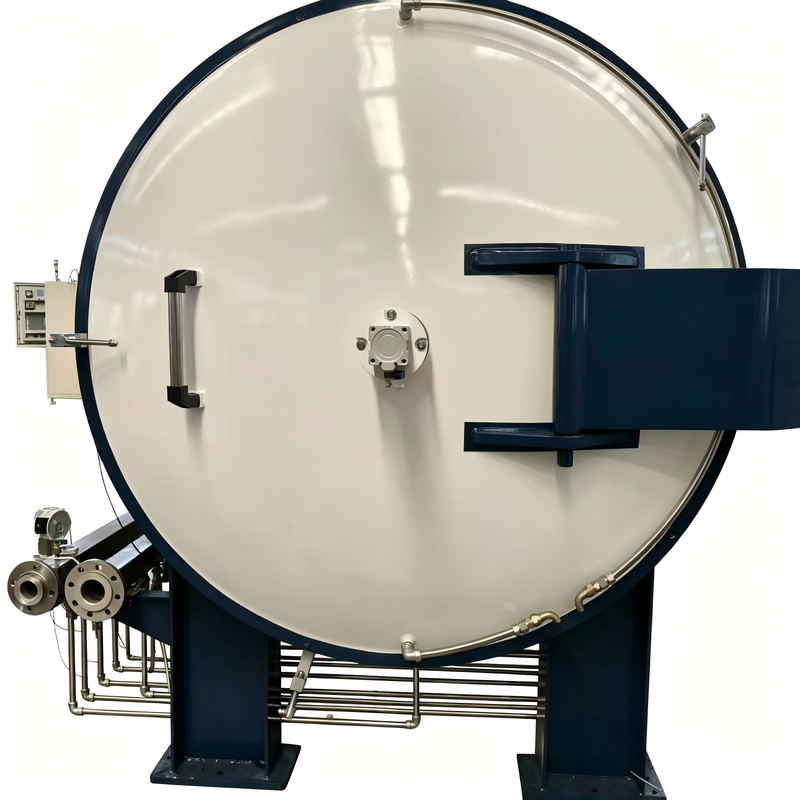

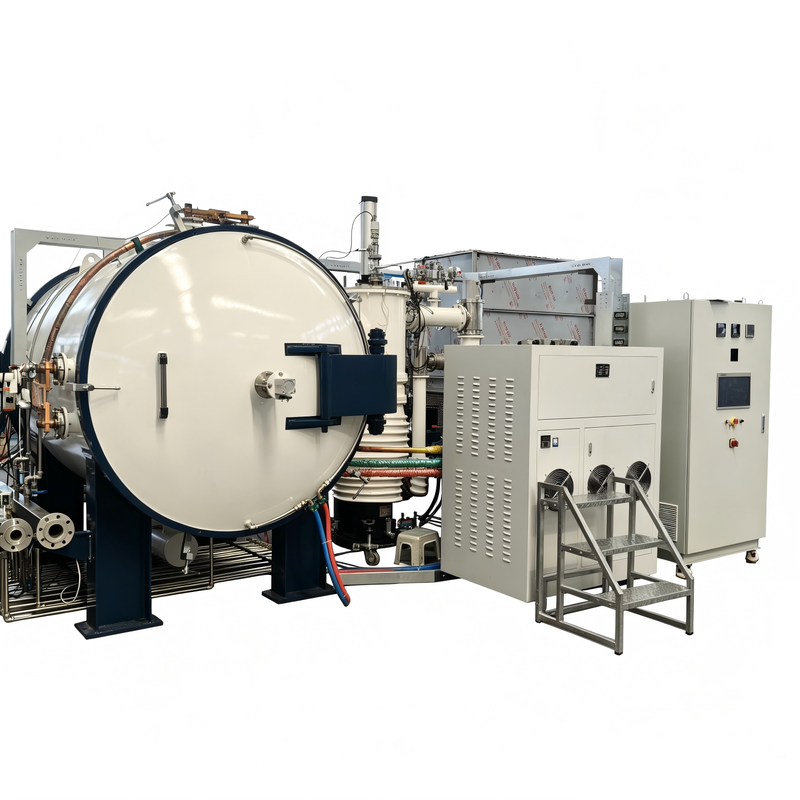

2000C High Temperature Vacuum Sintering Furnace for Tungsten Carbide Parts

Description:

• Engineered for industrial batch manufacturing, this 1:1 vacuum resistance furnace adopts high-efficiencyresistance heating, capable of a maximum working temperature of 2200°C. It is fitted with a hermetically sealedvacuum cavity that delivers an ultimate vacuum pressure of 20Pa. The unit runs on 38oV three-phase powersupply and employs silicon controlled rectifier (SCR) modules for regulation, delivering steady, homogeneoustemperature output during prolonged uninterrupted manufacturing runs.
• Built with robust heawy-load industrial architecture, the equipment delivers outstanding durability againstabrasion and fatigue under nonstop round-the-clock operation. Integrated intelligent temperature regulationenables accurate modulation of heating ramp speeds and heat preservation durations, securing homogeneousprocessing outcomes in high-volume mass production. Its refined structural layout minimizes discrepancies infinished product quality to a minimum threshold, while markedly boosting throughput for high-grade rawmaterials subject to stringent fabrication specifications.
• Fitted with automatic safety functions (vacuum leak detection, over-temperature cut-off, power failureprotection) and a streamlined operation interface, it reduces manual work and operational hazards,rendering it suitable for mass production of hard alloys, SiC components, and carbon materials

Application:

• Graphite Electrode Production: Mass heat treatment for metallurgical and industrial applications.
• PI Film Debinding: High-throughput processing for carbon fiber precursor manufacturing lines.
• Radiation-Proof Material Sintering: Large-batch production of carbon-based shielding components.

Specification:

Furnace Configuration:

• High-Temperature Capability: Reaches up to 2200℃.
• Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
• Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
• Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
• Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
