Composition Metal Powder Material Sintering Furnace Heat Treatment Sintering
Composition Metal Powder Material Sintering Furnace Heat Treatment Sintering
Place of Origin:
Hunan, China
Brand Name:
Nuotian
Certification:
CE
Model Number:
NTI-SJL-300W
Contact Us
Request A Quote
Product Details
Type:
Induction Furnace
Power Control:
IGBT
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC
Voltage:
380V
Dimension(l*w*h):
Customization
Weight (t):
2
Warranty:
1 Year
Key Selling Points:
Accurate Temperature Control
Product Name:
Induction Heat Treatment Vacuum Induction Heating Stove Furnace
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Maximum Temperature:
2500 Degree Celsius
Model No.:
NTI-SJL-300W
Power:
200KW
Working Area:
500x500x1200mm
Input Voltage:
380v
Working Atmosphere:
Argon Protection
Application:
Silicon Carbide Sintering
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
$60000-100000
Packaging Details
Standard Packing by Sea
Delivery Time
90 Days
Payment Terms
T/T
Supply Ability
20 Sets/ Month
Related Products
Contact Us
Contact Now
Product Description
Composite Metal Powder IGBT Power Control Argon Induction Heat Heat Treatment Sintering Machine High Vacuum Sintering Furnace
Description:
-

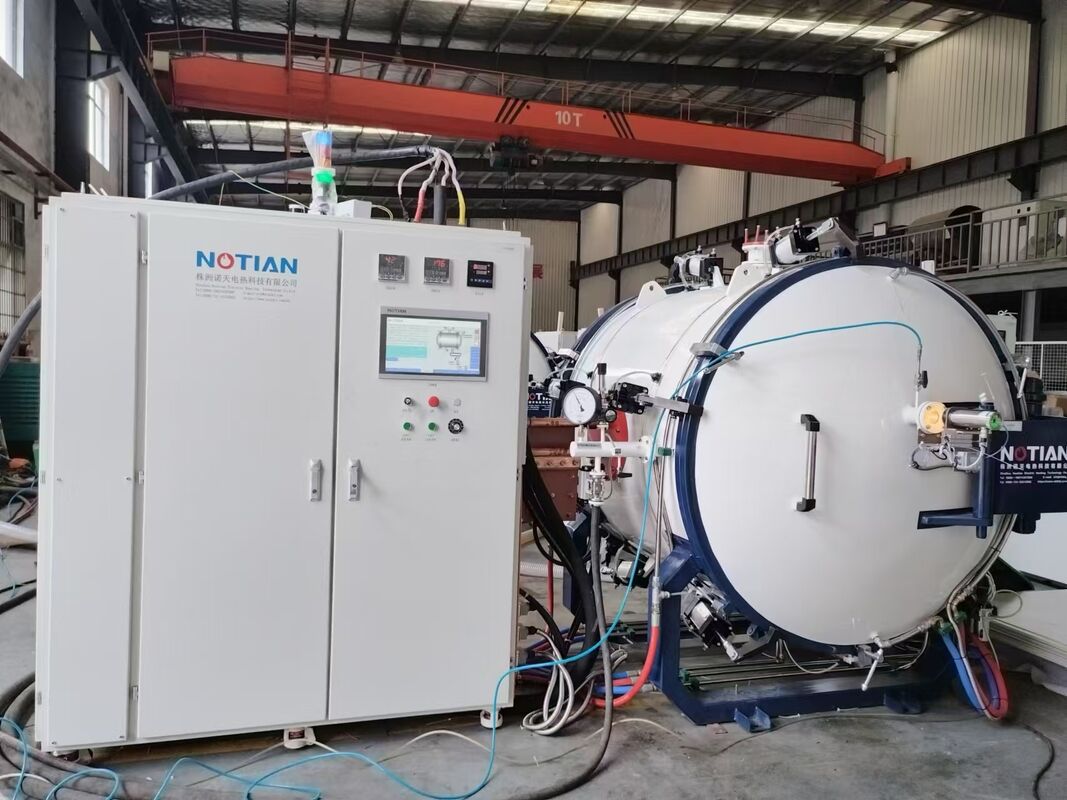

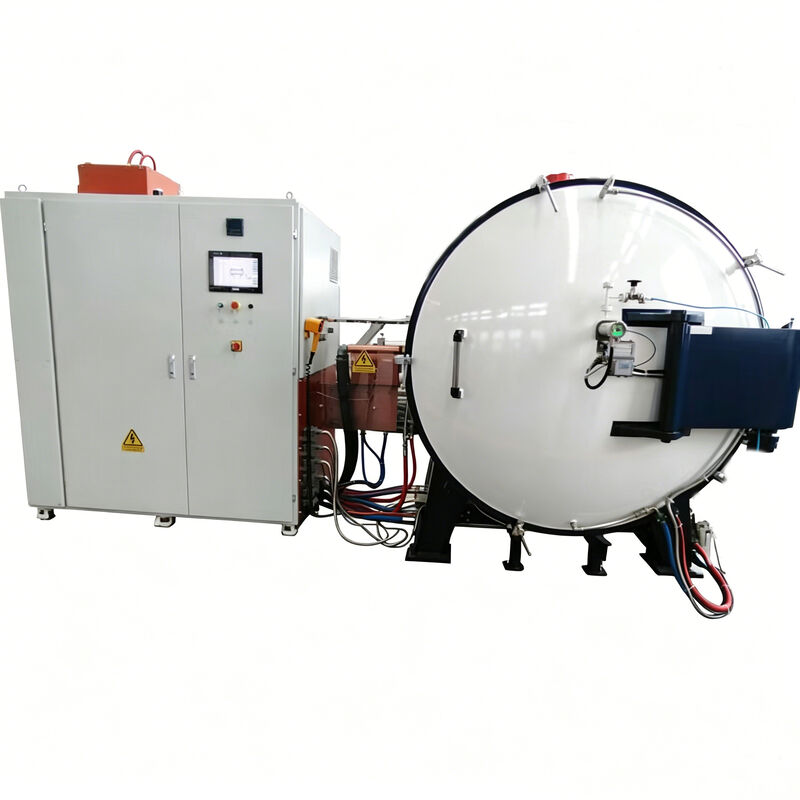

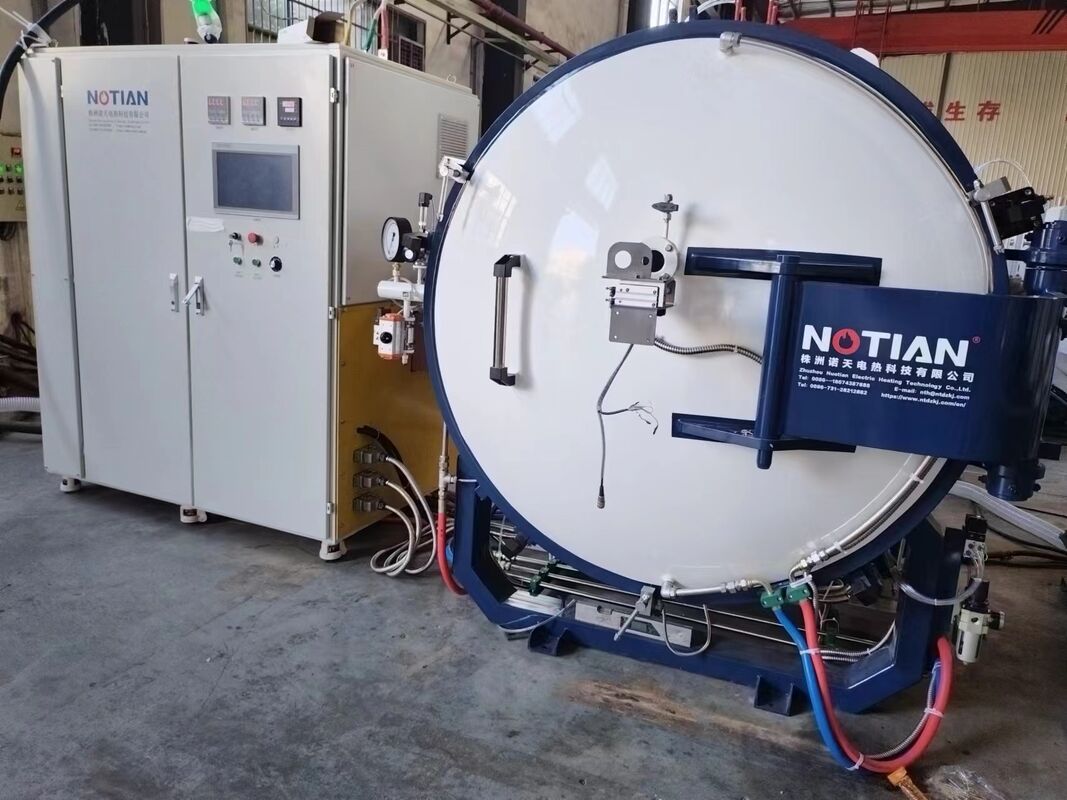

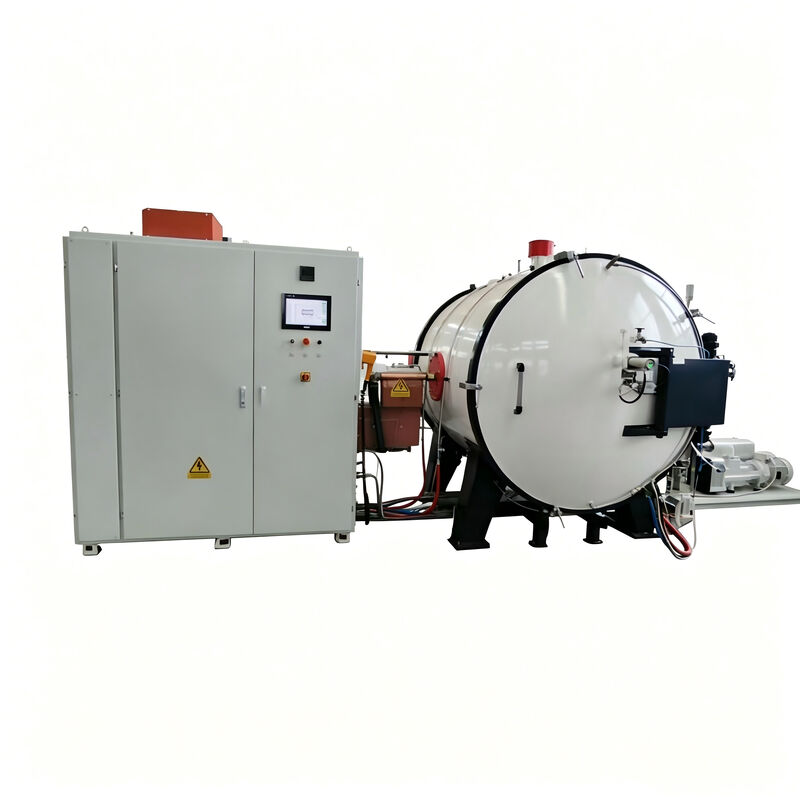

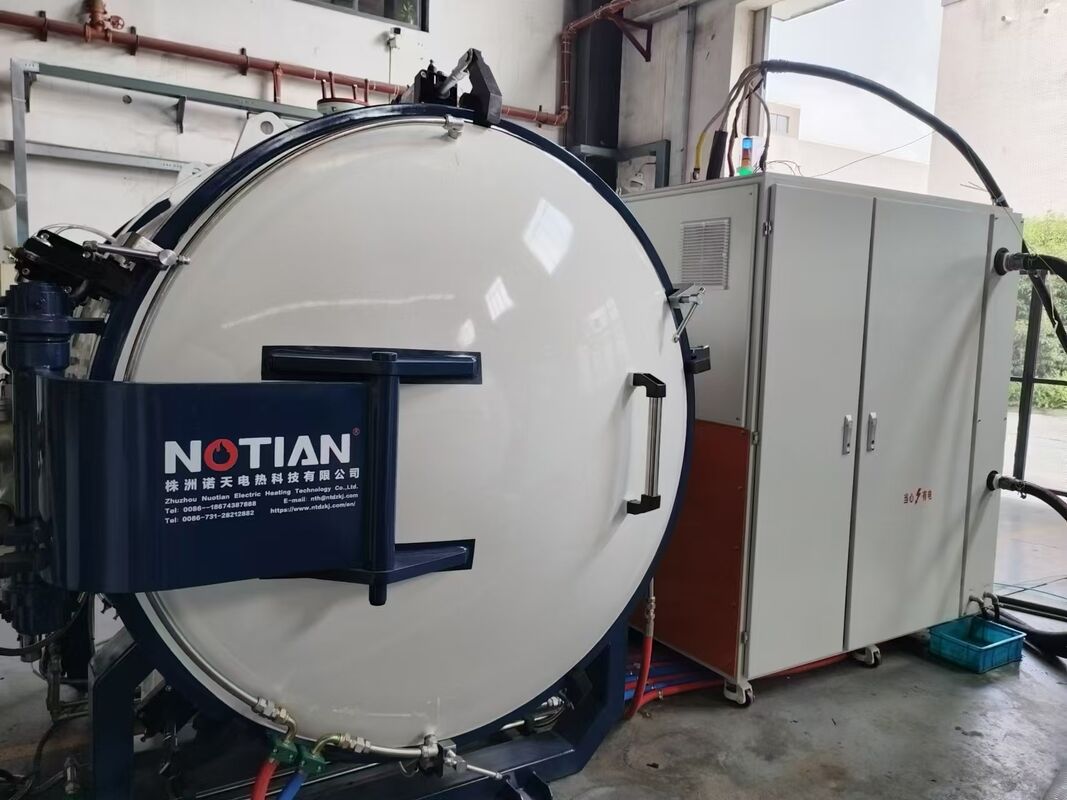

This batch‑type vacuum induction sintering furnace reaches a maximum working temperature of 2500°C. It is equipped with an optimized IGBT power supply module, which effectively reduces energy consumption and ensures stable long‑term running for high‑temperature material sintering tasks.
-
Supported by mature medium‑frequency induction heating technology and fully sealed vacuum chamber structure, the equipment generates homogeneous, ultra‑high temperature thermal field, satisfying strict densification requirements for high‑performance special ceramics.
-
Built for long‑term cyclic industrial production, the furnace adopts heavy‑duty reinforced frame together with intelligent temperature control unit. Operators are allowed to freely configure heating gradient, holding time and cooling curves, securing consistent sintering quality for every batch of workpieces.
-
Suitable for both volume production and small‑batch sample preparation. It supports sintering of Ti₃SiC₂ MAX‑phase ceramics, boron carbide plates, advanced ceramics and hard alloy parts. Featuring user‑friendly operation panel and comprehensive safety protection mechanisms, it fits well for material research laboratories as well as mass‑production factories.
- Radiation Proof Material High Temperature Heat Treatment Sintering Machine Argon Atmosphere Induction Vacuum Sintering Furnace
- Composite Metal Powder IGBT Power Control Argon Induction Heat Heat Treatment Sintering Machine High vacuum Sintering Furnace
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
Specification:
|
Sintering Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-SJL-54W |
NTI-SJL-98W |
NTI-SJL-300w |
NTI-SJL-400W |
NTI-SJL-1280W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
|
Heating type |
/ |
IF induction heating |
||||
|
Control type |
/ |
SCR control or IGBT control(optional) |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
1280 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
120 |
160 |
200 |
250 |
400 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
|
Usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||
Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:

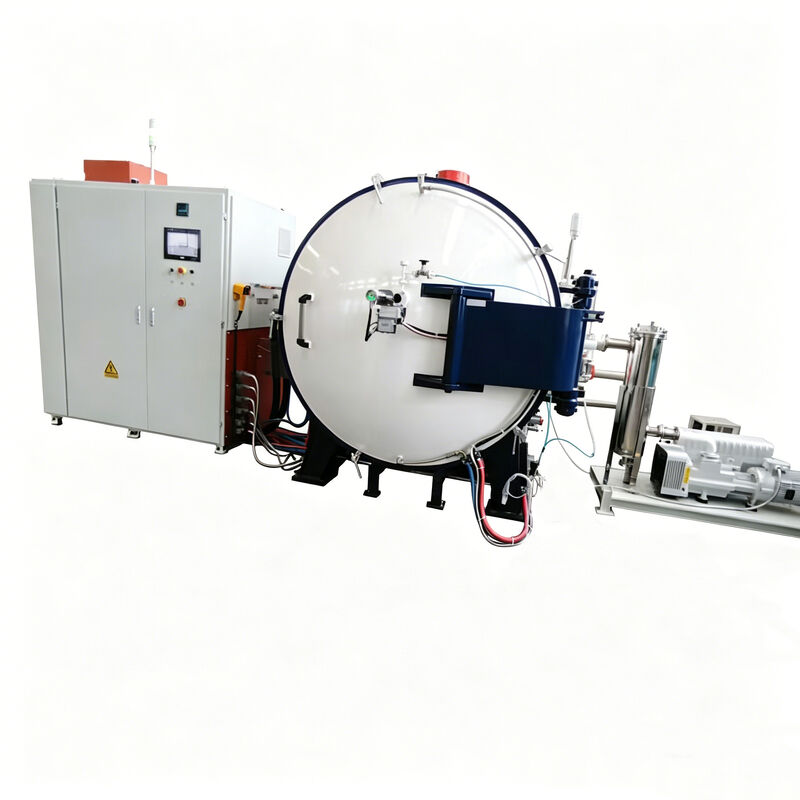

- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2500℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 2500℃.
- Vacuum & Induction Heating: Vacuum environment prevents material oxidation; induction heating ensures fast, uniform temperature distribution.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (ceramics, alloys, special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
Real client case:
Nuotian has expanded its footprint globally, with a proven track record of delivering turnkey industrial furnace solutions to clients. Our key international projects include:
Malaysia | Graphene Production Line
Provided a complete high-temperature processing solution for graphene material production, enabling controlled exfoliation and reduction to achieve consistent quality for advanced material applications..
Provided a complete high-temperature processing solution for graphene material production, enabling controlled exfoliation and reduction to achieve consistent quality for advanced material applications..
